Sony DCR-TRV620E - REPAIR PARTS LIST; EXPLODED VIEWS; CABINET (R) SECTION (2.5 LCD model) (TRV320;TRV320 E;TRV320 P); CABINET (R) SECTION (3;3.5 LCD model) (TRV420 E;TRV520;TRV520 E;TRV520 P;TRV525;TRV620 E)

– 12 –
DCR-TRV320/TRV320E/TRV320P/TRV420E/TRV520/TRV520E/TRV520P/TRV525
TRV620E/TRV720/TRV720E
64 X-3950-231-2 BASE (100) ASSY, VF
(TRV320E: AEP, UK, EE, NE, RU)
68 X-3950-229-2 BASE (100) ASSY, SLIDE
(TRV320E: AEP, UK, EE, NE, RU)
SECTION 6
REPAIR PARTS LIST

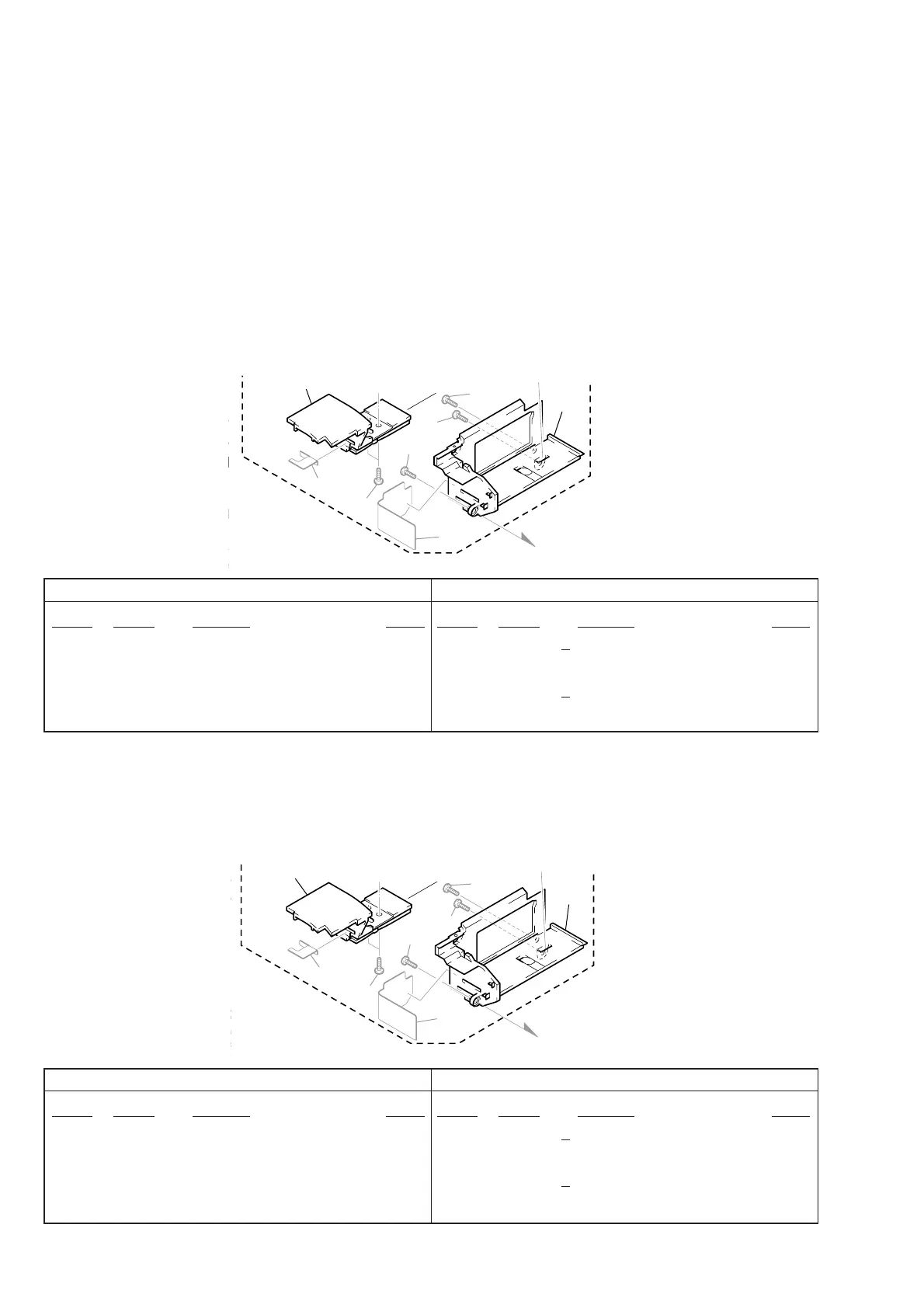

6-1. EXPLODED VIEWS
& : Points added portion.
- : Points changed portion.
6-1-2. CABINET (R) SECTION (2.5 LCD model)
(TRV320/TRV320E/TRV320P)
(Service manual page 6-2)
6-1-4. CABINET (R) SECTION (3/3.5 LCD model)
(TRV420E/TRV520/TRV520E/TRV520P/TRV525/TRV620E)
(Service manual page 6-4)
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• Abbreviation
AUS : Australian model
CH : Chinese model
EE : East European model
HK : Hong Kong model
JE : Tourist model
NE : North European model
RU : Russian model
1
63
70
69
52
70
52
64
68
SP003
=
;
Former Type New Type
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
64 X-3950-231-1 BASE (100) ASSY, VF
(TRV320E: AEP, UK, EE, NE, RU)
68 X-3950-229-1 BASE (100) ASSY, SLIDE
(TRV320E: AEP, UK, EE, NE, RU)
[
[
168
169
170
163
152
170
152
164
SP003
=
164 X-3950-231-2 BASE (100) ASSY, VF
(TRV420E: AEP/TRV520E: AEP/
TRV525/TRV620E)
168 X-3950-229-2 BASE (100) ASSY, SLIDE
(TRV420E: AEP/TRV520E: AEP/
TRV525/TRV620E)
Former Type New Type
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
164 X-3950-231-1 BASE (100) ASSY, VF
(TRV420E: AEP/TRV520E: AEP/
TRV525/TRV620E)
168 X-3950-229-1 BASE (100) ASSY, SLIDE
(TRV420E: AEP/TRV520E: AEP/
TRV525/TRV620E)
[
[
;
