Sony DCR-TRV620E - 2.3. VF-141 BOARD, VF LENS ASSEMBLY (LCD EVF model)

2-4

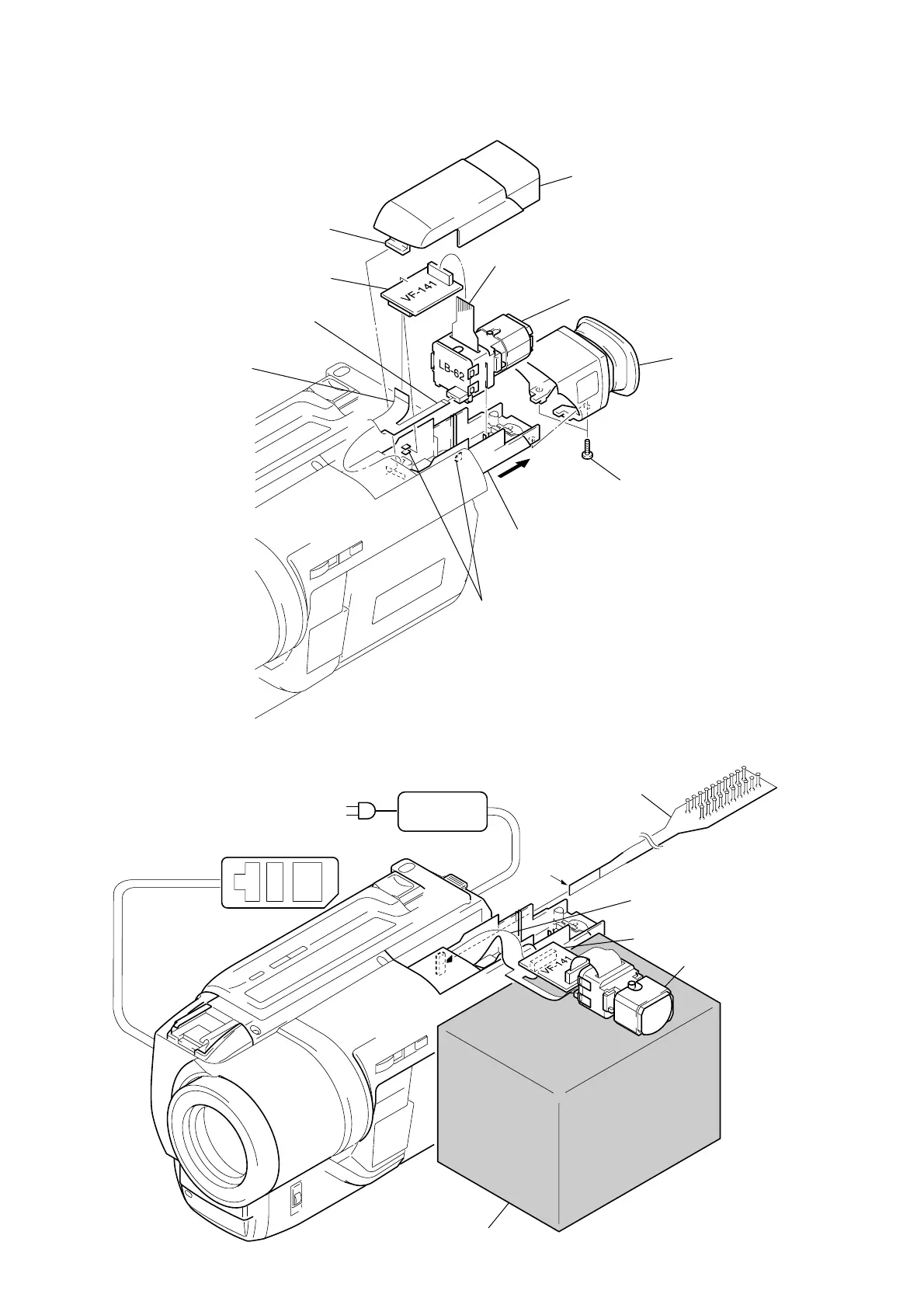

[LCD EVF SERVICE POSITION]
2-3. VF-141 BOARD, VF LENS ASSEMBLY (LCD EVF model)
2 Two screws
1 Pull out the
EVF block.
7 Two claws
9 Flexible board
(CN4501)
0 Flexible board
(CN4601)
6 Flexible board
(CN4502)
8 VF-141 board
4 Claw
3 EVF cabinet
(rear) assembly
qa VF lens assembly
5 EVF cabinet (upper)
Adjustment remote commander
(RM-95)
AC power
adaptor
Base
CPC-13 jig
(J-6082-443-A)
Contacting
surface
VF lens assembly
VF-141 board
FP-151 flexible board
AC IN
