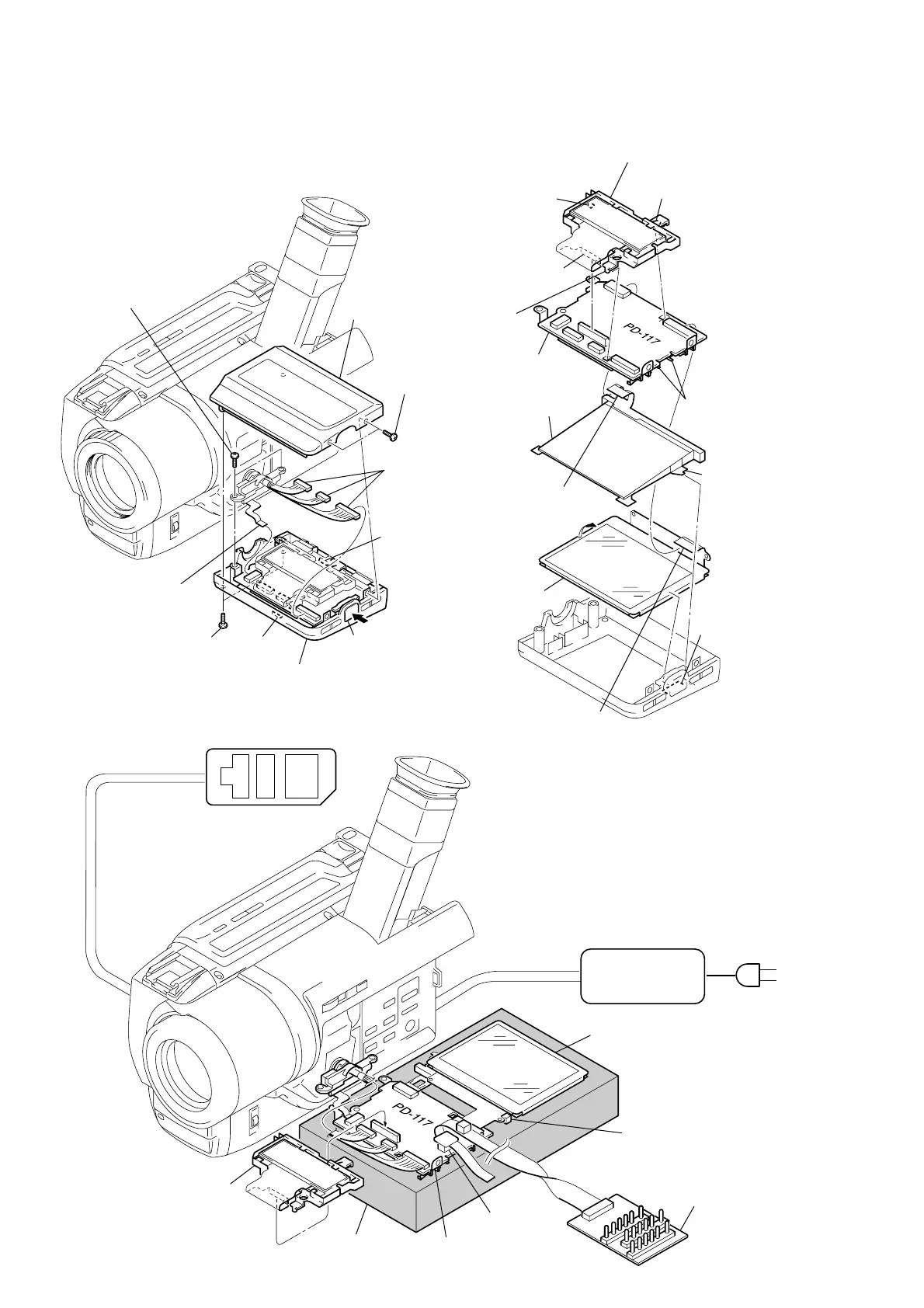

Sony DCR-TRV620E - 2.1. 2.5 LCD ASSEMBLY, PD-117 BOARD

2-2
3 Two screws
5 Claw
0 2.5 LCD assembly
1 Open the
LCD panel.
4 Claw
7 Three connectors
(CN5701, 5702,
5704)
2 Two screws
(P2 × 4)
6 P cabinet (C)
9 Two screws
8 Flexible board
(CN5703)
qa Flexible board
(CN5501)
ws Claw
wd LCD module
qs Flexible board
(CN5604)
w; Claw
qd Two claws
wa Cold cathode
fluorescent tube
qf PD-117 board
qh Claw
qg Flexible board
(CN5705)
qk Claw
ql Indication (LCD) block assembly
qj Claw
Note: Follow the disassembly procedure in the numerical order given.
[2.5 LCD SERVICE POSITION]
2-1. 2.5 LCD ASSEMBLY, PD-117 BOARD
Indication (LCD)
block assembly
Base
PD-117 board
CN5502
Multi CPC jig
(J-6082-311-A)
Cold cathode
fluorescent tube
LCD
AC power
adaptor
AC IN
Adjustment remote commander
(RM-95)
