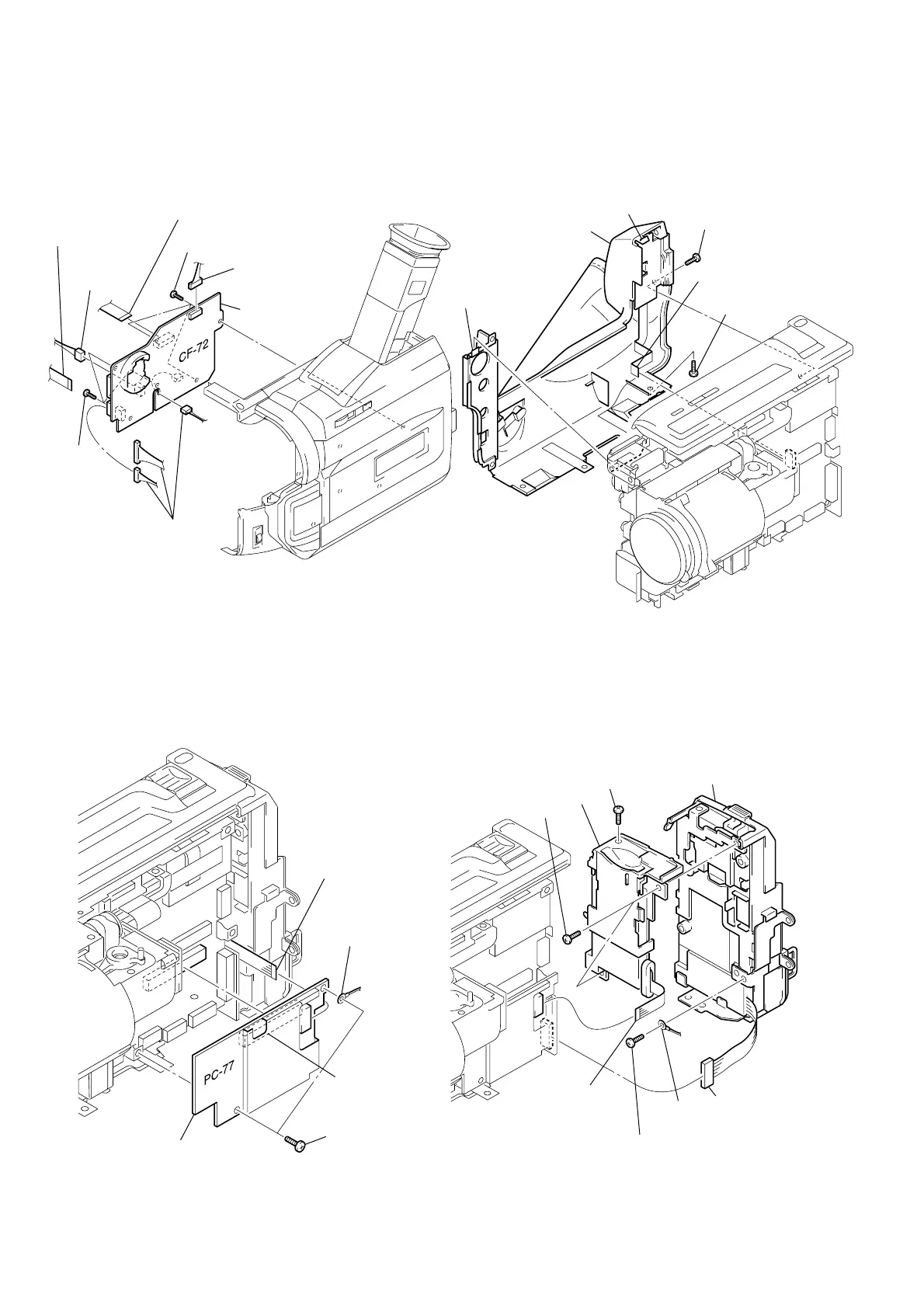

Sony DCR-TRV620E - CF-72 BOARD (4 LCD model); PC-77 BOARD; CABINET (L) ASSEMBLY; BATTERY PANEL ASSEMBLY, FP-162 FLEXIBLE BOARD

2-8
2-14. CABINET (L) ASSEMBLY
2-15. BATTERY PANEL ASSEMBLY,
FP-162 FLEXIBLE BOARD
3 Claw
4 Claw
5 Cabinet (L) assembly
1 Screw
(2 × 4)
2 Screw
(2 × 4)
6 Flexible board
(CN253)
6 Screw (2 × 4)
7 Two screws
3 Battery panel assembly
8 FP-162 flexible board
4 Screw
(M2 × 3)
1 Connector
(CN252)
5 Harness
(HT-054)
2 Flexuble board
(CN801)
2-12. CF-72 BOARD (4 LCD model)
2-13. PC-77 BOARD
8 CF-72 board
5 Connector
(CN009)
7 Three screws
4 Flexible board
(CN006)
3 Connector
(CN008)
2 Flexible board
(CN002)
6 Three
screws
1 Three connectors
(CN003, 004, 005)
2 Two screws
(M2 × 3)
4 Connector
(CN802)
3 Harness
(HT-054)
5 PC-77 board
1 Flexible board
(CN801)
