Sony DCR-TRV620E - 6-1-6. CABINET (R) SECTION (4 LCD model)

6-6
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark

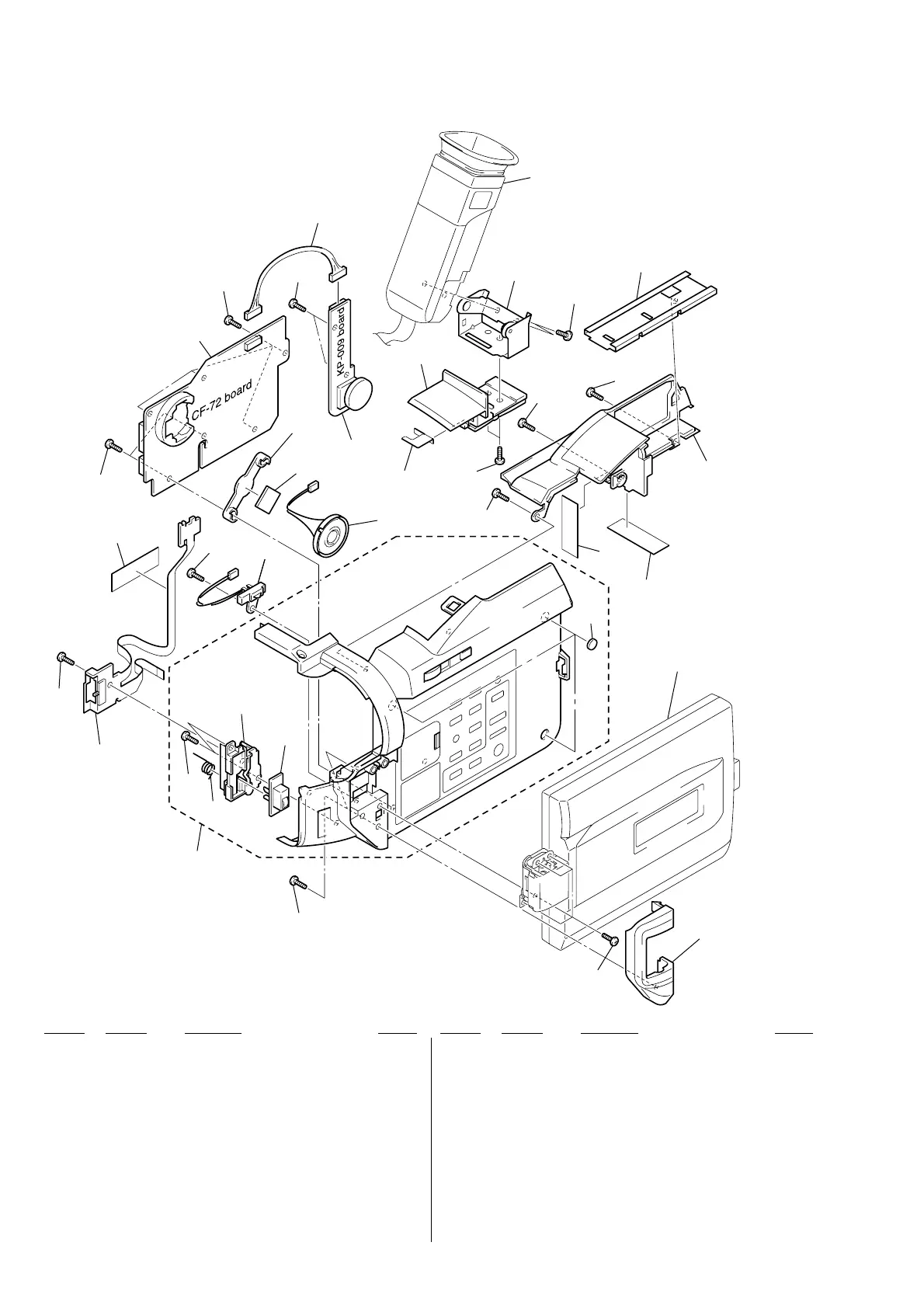

6-1-6. CABINET (R) SECTION (4 LCD model)
(TRV720/TRV720E)
252
not
supplied
253
252
255
254
257
252
258
252
252
259
260
261
252
252
262
263
264
265
252
266
252
265
270
258
258
256
269
267
268
251
252
S008S008
SP003
4 LCD assembly
(See page 6-7)
LCD EVF block
(See page 6-9)
251 3-059-547-01 COVER (R) (103), HINGE
252 3-948-339-61 TAPPING
253 X-3950-441-1 CABINET (R) (103) ASSY
254 3-059-533-01 KNOB (103), MF
255 3-059-532-01 RETAINER (103), MF
256 3-959-978-02 CUSHION, PANEL
257 1-418-801-11 SWITCH BLOCK, CONTROL (MF-10000)
258 3-941-343-21 TAPE (A)
* 259 3-058-658-01 SPACER (101), SPEAKER
* 260 3-058-659-01 RETAINER (101), SPEAKER
261 A-7074-378-A CF-72 BOARD, COMPLETE
262 1-960-227-11 HARNESS (DP-87)
263 A-7074-382-A KP-009 BOARD, COMPLETE
* 264 3-058-640-01 RETAINER (100), HARNESS
265 3-968-729-01 SCREW (2X4)
266 X-3950-551-1 BASE (103) ASSY, SLIDE
267 3-948-339-81 TAPPING
268 X-3950-230-1 HINGE ASSY, VF
* 269 3-060-376-01 SHEET METAL (103), SLIDE
270 X-3950-552-1 BASE (103) ASSY, VF
S008 1-771-848-11 SWITCH, PUSH (PANEL OPEN/CLOSE)
SP003 1-529-590-11 SPEAKER (2.0cm)
