Sony DCR-TRV620E - 2.19. VC-235 BOARD

2-10

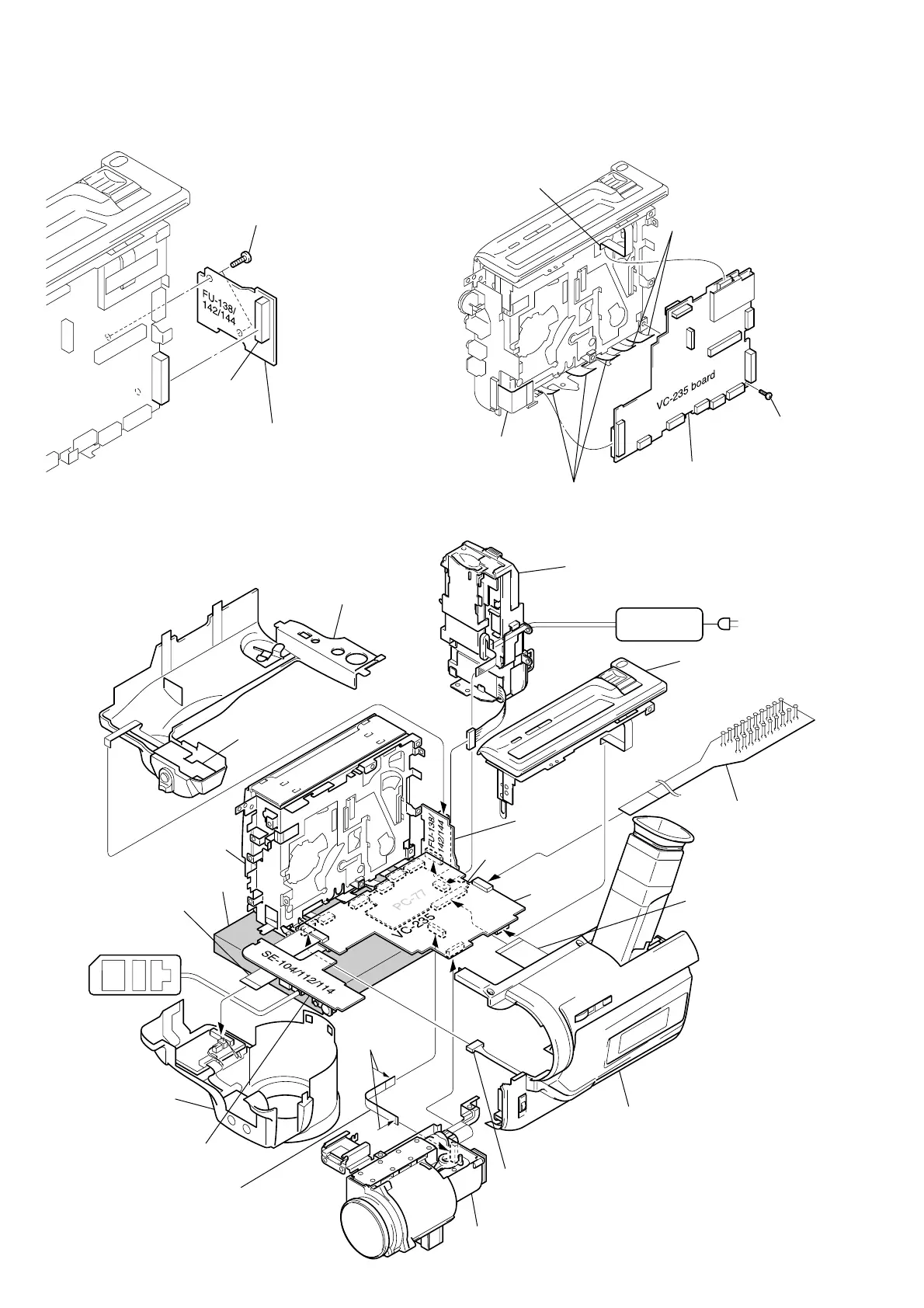

2-18. FU-138/142/144 BOARD 2-19. VC-235 BOARD
[MECHANISM DECK, VC-235 BOARD
SERVICE POSITION]
1 Flexible board
(CN1107)
4 Two flexible boards
(CN4403, 4404)
5 Screw
(2 × 3)
6 VC-235 board
3 Three flexible boards
(CN3101, 4401, 4402)
2 Flexible board
(CN1103)
1 Two screws
(2 × 3)
2 Connector
(CN254)
3 FU-138 board (2.5 LCD model)
FU-142 board (3/3.5 LCD model)
FU-144 board (4 LCD model)
Cabinet (L) assembly
Battery panel assembly
Control switch
block
(SS-10000)
Mechanism
deck
Base
FP-159
flexible board
Adjustment remote
commander (RM-95)
Front panel
assembly
SE-104/112/
114 board
Extension cable (16P)
(J-6082-357-A)
Contacting
surface
Lens block
Harness (DP-83)
Cabinet (R) assembly
Flexible flat cable
(FFC-257)
VC-235
board
PC-77
board
FU-138/142/
144 board
CPC-13 jig
(J-6082-443-A)
Control switch block
(FK-10000)
AC power
adaptor
AC IN
