Sony DCR-TRV620E - 6-1-4. CABINET (R) SECTION (3;3.5 LCD model)

6-4
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

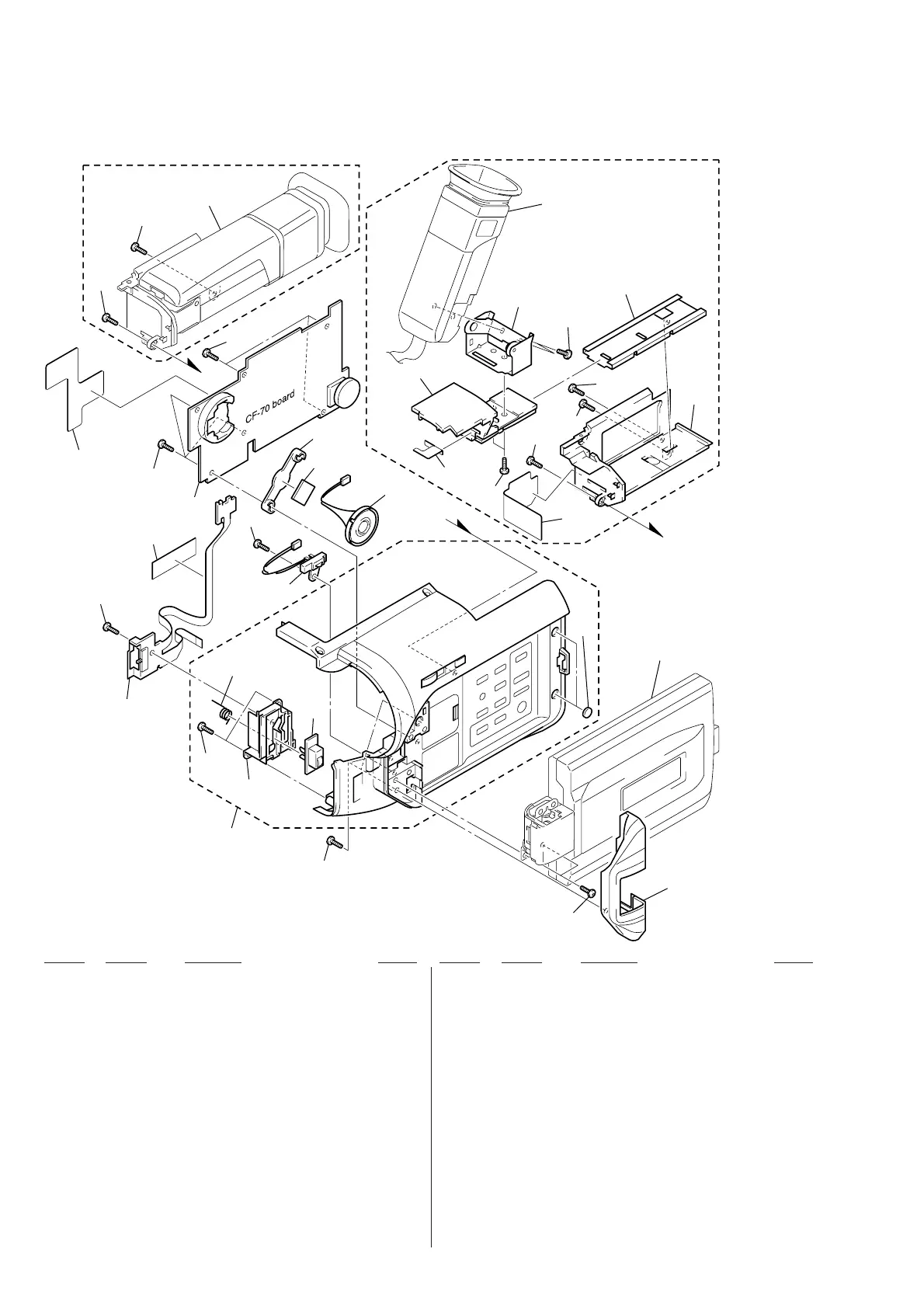

6-1-4. CABINET (R) SECTION (3/3.5 LCD model)
(TRV420E/TRV520/TRV520E/TRV520P/TRV525/TRV620E)
CRT EVF model: DCR-TRV420E: CN/TRV520/TRV520E: E, HK, AUS, CN, JE/TRV520P
LCD EVF model: DCR-TRV420E: AEP/TRV520E: AEP/TRV525/TRV620E
152
152
3/3.5 LCD assembl
y
(See page 6-5)
152
152
162
161
158
152
152
157
152
155
153
152
154
152
151
156
159
160
168
169
170
163
152
170
152
164
167
166
165
CRT EVF block
(See page 6-8)
LCD EVF block
(See page 6-9)
SP003
S008
CRT EVF model
LCD EVF model
not supplied
151 3-058-721-01 COVER (R (102)), HINGE
152 3-948-339-61 TAPPING
153 X-3950-239-1 CABINET (R) (102) ASSY
154 3-058-705-01 KNOB (102), MF
155 3-058-697-01 RETAINER (100), MF
156 3-959-978-02 CUSHION, PANEL
157 1-418-801-11 SWITCH BLOCK, CONTROL (MF-10000)
158 3-941-343-21 TAPE (A)
* 159 3-058-658-01 SPACER (101), SPEAKER
* 160 3-058-659-01 RETAINER (101), SPEAKER
161 A-7074-344-A CF-70 BOARD, COMPLETE (TRV420E: CN/
TRV520/TRV520E: E, HK, AUS,
CN, JE/TRV520P)
161 A-7074-373-A CF-70 BOARD, COMPLETE (TRV420E: AEP/
TRV520E: AEP/TRV525/TRV620E)
* 162 3-059-708-01 SHEET (102), CF
* 163 3-058-641-01 GUIDE (100), HARNESS (TRV420E: AEP/
TRV520E: AEP/TRV525/TRV620E)
164 X-3950-231-1 BASE (100) ASSY, VF (TRV420E: AEP/
TRV520E: AEP/TRV525/TRV620E)
165 X-3950-230-1 HINGE ASSY, VF (TRV420E: AEP/TRV520E:
AEP/TRV525/TRV620E)
166 3-948-339-81 TAPPING
* 167 3-058-639-01 SHEET METAL (100), SLIDE (TRV420E: AEP/
TRV520E: AEP/TRV525/TRV620E)
168 X-3950-229-1 BASE (100) ASSY, SLIDE (TRV420E: AEP/
TRV520E: AEP/TRV525/TRV620E)
* 169 3-058-640-01 RETAINER (100), HARNESS (TRV420E: AEP/
TRV520E: AEP/TRV525/TRV620E)
170 3-968-729-01 SCREW (2X4)
S008 1-771-848-11 SWITCH, PUSH (PANEL OPEN/CLOSE)
SP003 1-529-590-11 SPEAKER (2.0cm)
