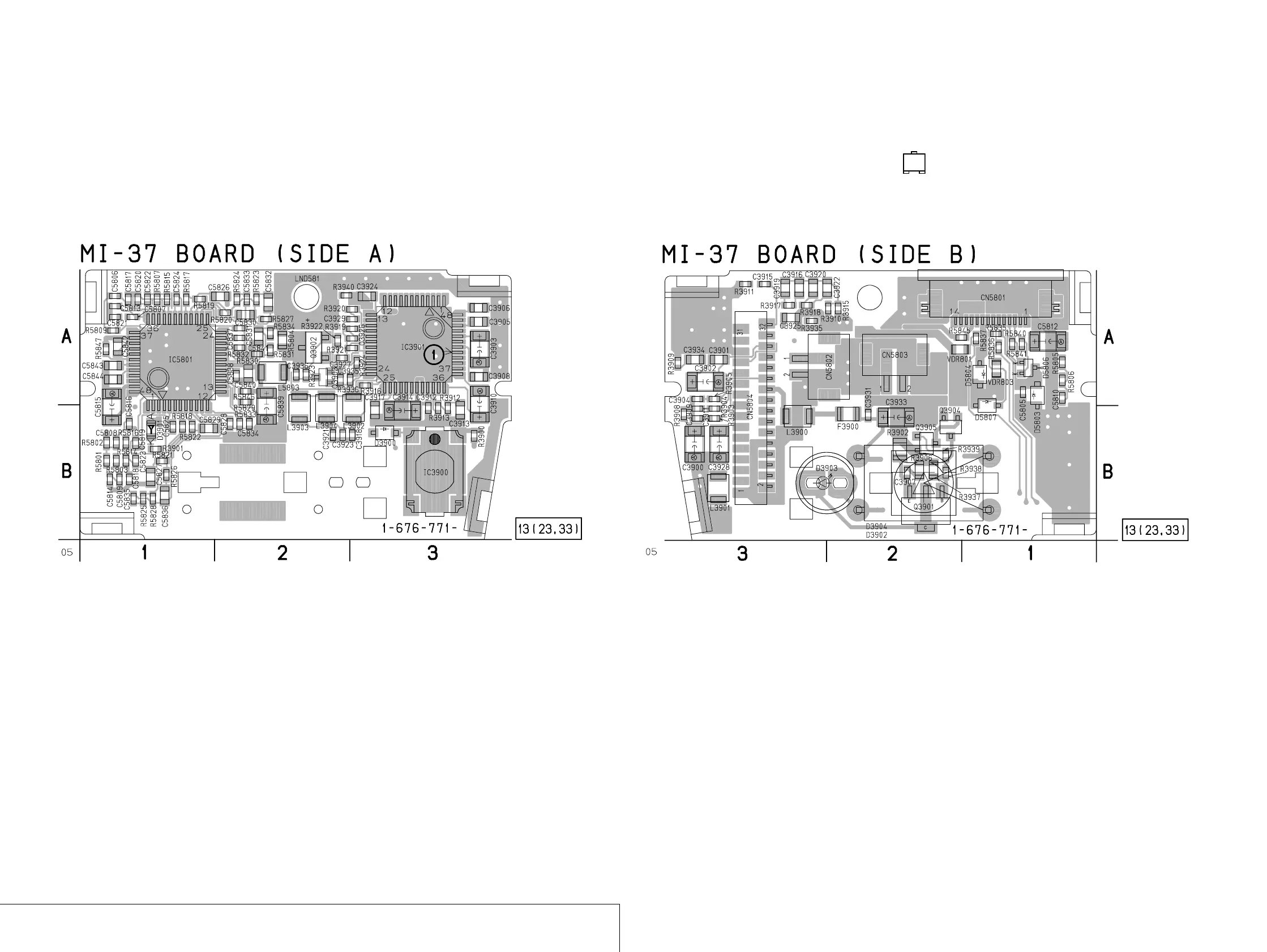

FP-156 (MIC/HP JACK, MF SENSOR), MI-37 (STEREO MIC AMP, IR TRANSMITTER) PRINTED WIRING BOARDS
– Ref. No.: FP-156 flexible board; 10,000/MI-37 board; 10,000 series –
MIC/HP JACK, MF SENSOR
/
STEREO MIC AMP, IR TRANSMITTER
FP-156 MI-37
• For Printed Wiring Board.
• MI-37 board is eight-layer print board. However, the patterns of
layers 2 to 7 have not been included in the diagram.
• There are few cases that the part isn't mounted in this model is
printed on this diagram.
• See page 4-126 for printed parts location.
• Chip transistor
EB
C
To Next Page
