Sony DCR-TRV620E - 2.16. LENS BLOCK; 2.17. SE-104;112;114 BOARD, CONTROL SWITCH BLOCK (FK-10000)

2-9

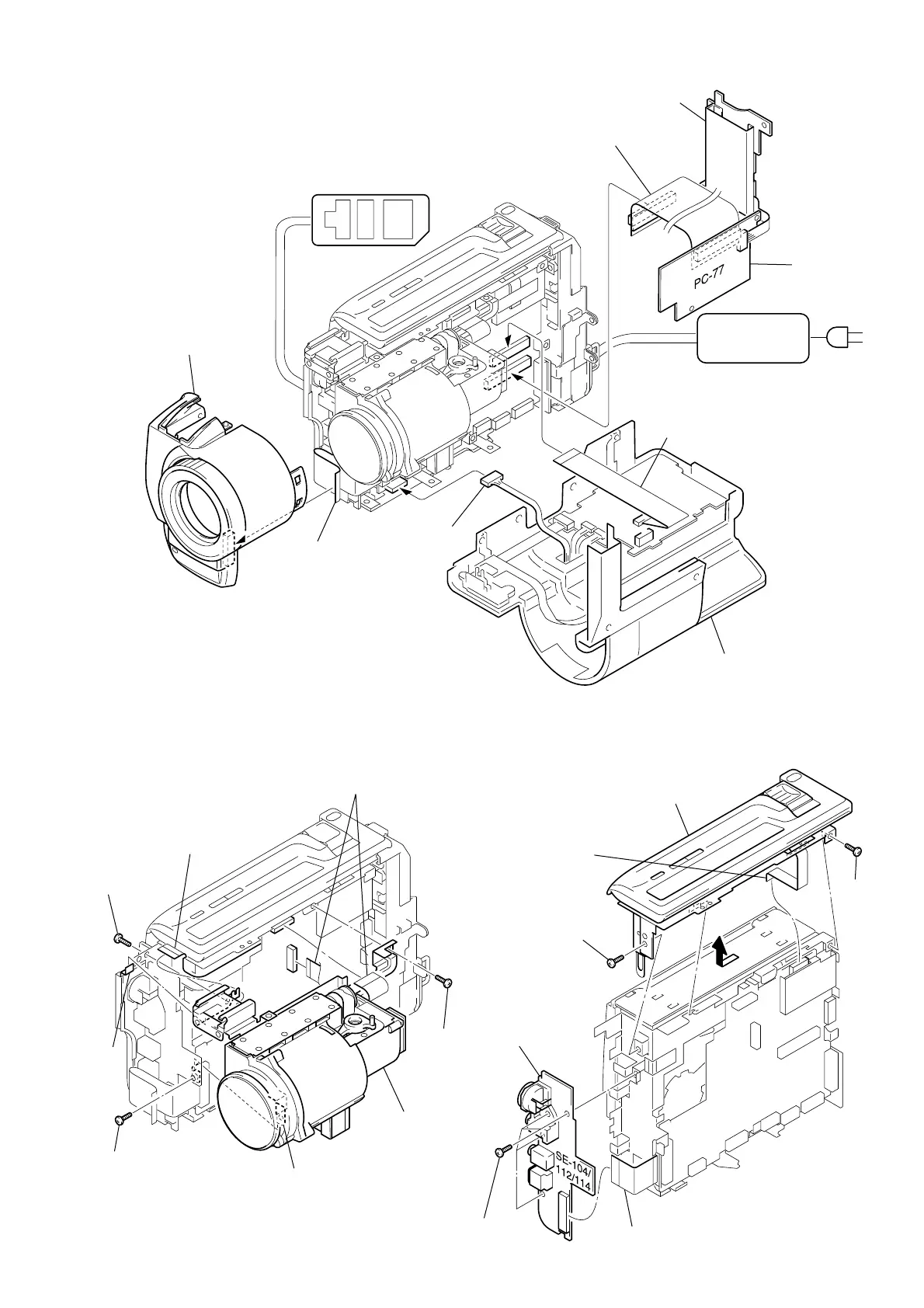

2-16. LENS BLOCK 2-17. SE-104/112/114 BOARD,
CONTROL SWITCH BLOCK (FK-10000)
3 Screw
(2 × 3)
8 Flexible board
(external connector)
1 Two flexible baords
(CN1501, 1551)
4 Screw
(2 × 3)
7 Lens block
6 Lens frame
2 Screw
(2 × 3)
5 Claw
7 Remove the control switch block
(FK-10000) in the direction
of the arrow.
5 Screw
(2 × 3)
4 Flexible board
(CN1107)
6 Screw
(2 × 3)
3 SE-104 board
(2.5 LCD model)
SE-112 board
(3/3.5 LCD model)
SE-114 board
(4LCD model)
2 Four screws
(2 × 3)
1 Flexible board
(CN202)
[PC-77 BOARD SERVICE POSITION]
Adjustment remote
commander (RM-95)
Flont panel assembly
AC IN
AC power
adaptor
Flexible flat cable
(FFC-257)
Cabinet (R) assembly
FP-162 flexible board
Extension cable (100P)
(J-6082-352-A)
PC-77 board
Harness (DP-83)
FP-159
flexible board
