Sony DCR-TRV620E - 2.10. CF-69 BOARD (2.5 LCD model); 2.11. CF-70 BOARD (3;3.5 LCD model)

2-7

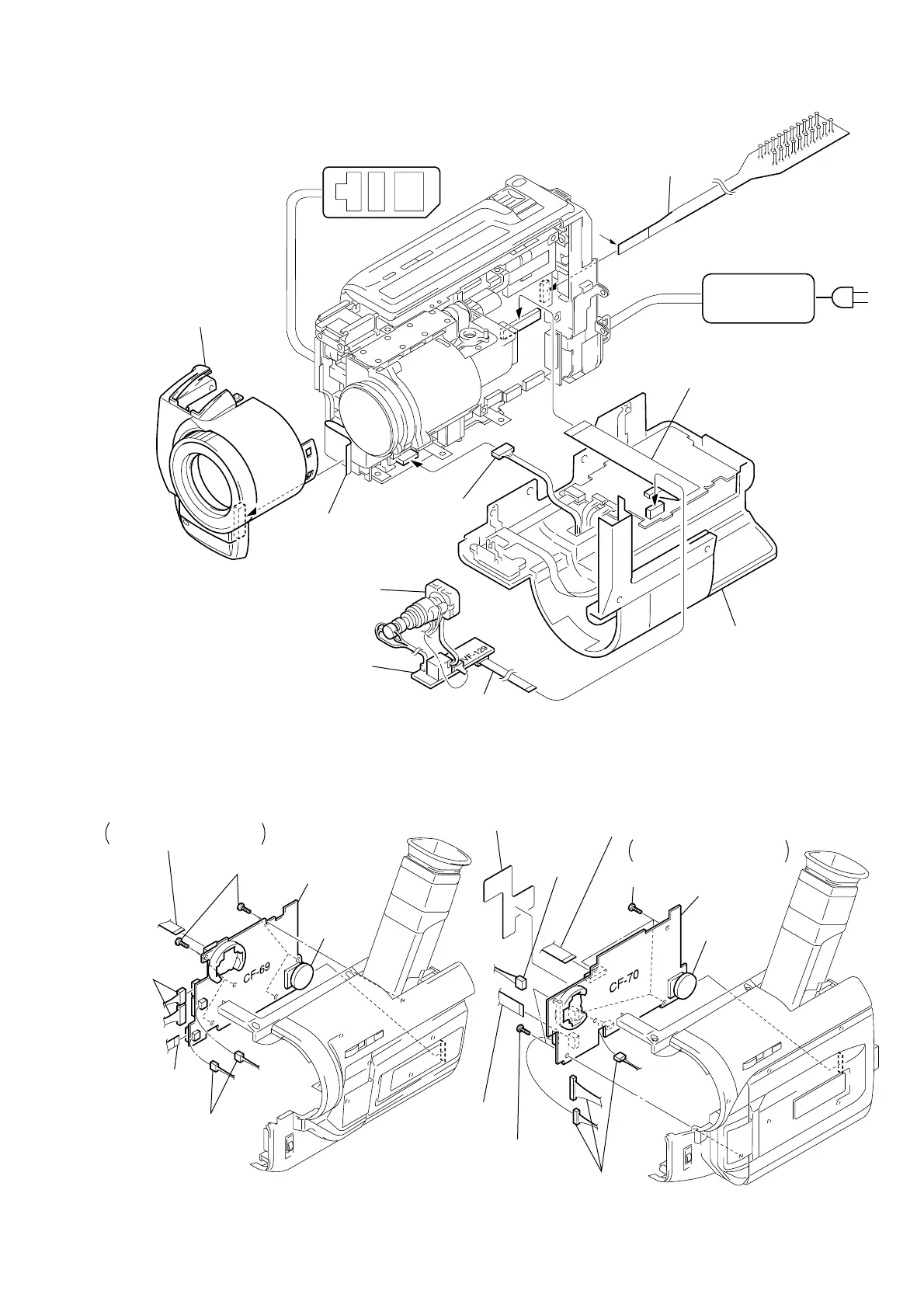

[CRT EVF SERVICE POSITION]
Adjustment remote
commander (RM-95)
Flont panel assembly
CPC-13 jig
(J-6082-443-A)
Contacting
surface
AC IN
AC power
adaptor
Flexible flat cable
(FFC-257)
Cabinet (R) assembly
Flexible flat cable
(FFC-289)
CRT assembly
VF-129 board
Harness (DP-83)
(TRV model)
FP-159
flexible board
2-10. CF-69 BOARD (2.5 LCD model) 2-11. CF-70 BOARD (3/3.5 LCD model)
1 Two connectors
(CN004, 005)
2 Flexible board
(CN002)
7 Two connectors
(CN003, 008)
4 Six screws
6 CF-69 board
5 Rotary
switch
3 Flexible board
CN006 ... LCD EVF model
CN007 ... CRT EVF model
9 CF-70 board
4 Three connectors
(CN003, 004, 005)
1 Flexible board
CN006 ... LCD EVF model
CN007 ... CRT EVF model
7 Two screws
3 Flexible board
(CN002)
8 Rotary
switch
6 Four screws
2 Connector
(CN008)
5 CF sheet
