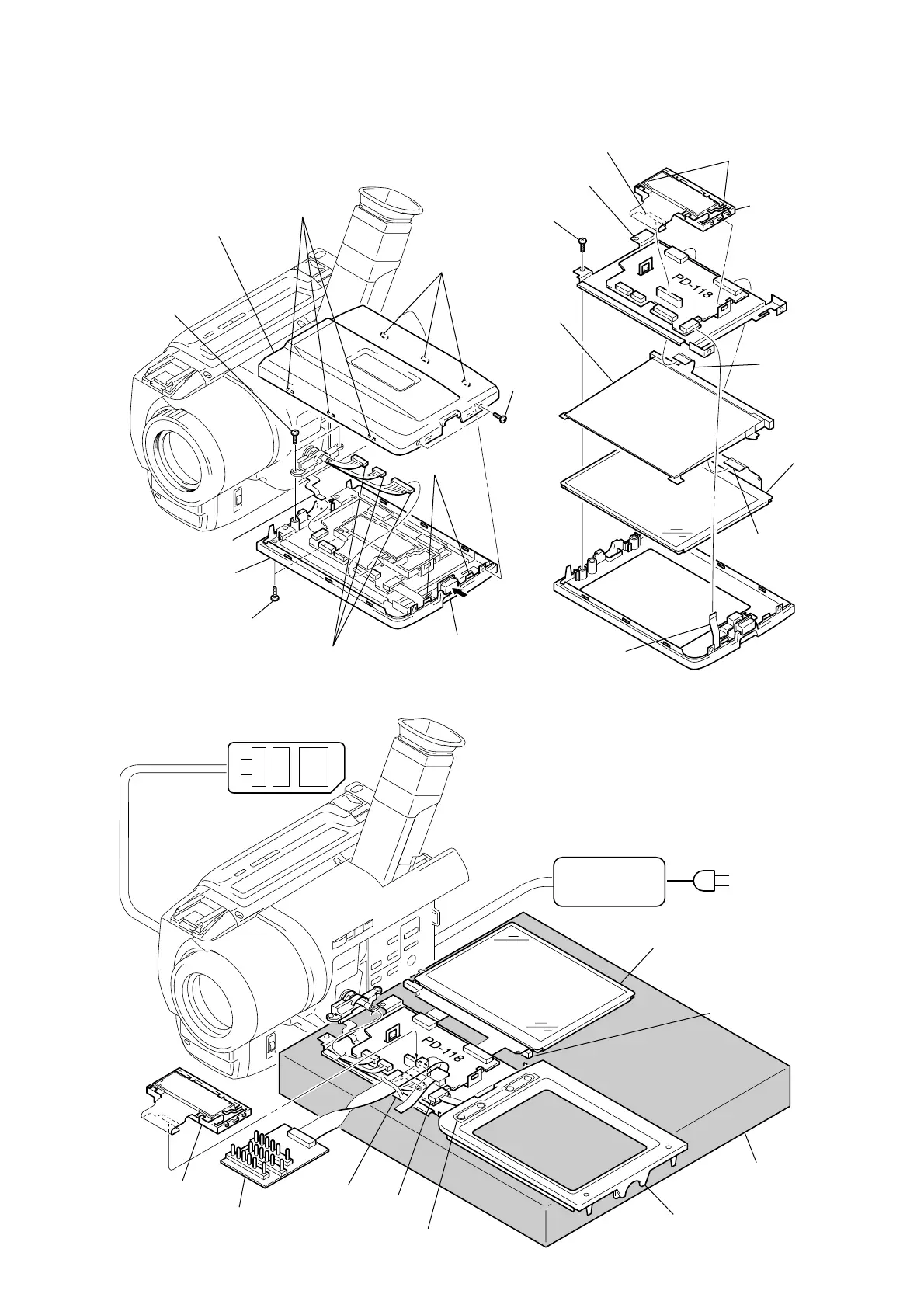

Sony DCR-TRV620E - 2.2. 3;3.5;4 LCD ASSEMBLY, PD-118 BOARD

2-3
3 Two screws
4 Two claws
qa 3/3.5/4 LCD
assembly
1 Open the
LCD panel.
8 Three connectors
(CN5701, 5702, 5704)
2 Two screws
(P2 × 4)
7 P cabinet (C)
0 Two screws
9 Flexible board
(CN5703)
qd Flexible board
(CN5501)
wa LCD module
qf Flexible board
(CN5604)
w; Cold cathode
fluorescent
tube
qh PD-118 board
qg Screw
(4 LCD model only)
qj Flexible board
(CN5705)
qk Two claws
ql Indication (LCD)
block assembly
qs Flexible board
(CN5708)
5 Three claws
6 Three claws
[3/3.5/4 LCD SERVICE POSITION]
2-2. 3/3.5/4 LCD ASSEMBLY, PD-118 BOARD
Indication (LCD)
block assembly
Base
PD-118 board
CN5502
Control switch block
(BV-10000)
Multi CPC jig
(J-6082-311-A)
Cold cathode
fluorescent tube
P cabinet (M)
assembly
LCD
AC power
adaptor
AC IN
Adjustment remote commander
(RM-95)
