DCR-TRV320/TRV320E/TRV320P/TRV420E/TRV520/TRV520E/TRV520P/TRV525
TRV620E/TRV720/TRV720E
4-13
4-14
CAMERA PROCESSOR, Y/C PROCESSOR, LENS MOTOR DRIVE, VIDEO/AUDIO IN/OUT, BASE BAND INPUT,
VIDEO/AUDIO DSP, DV INTERFACE, OSD, A/D CONVERTER, REC/PB AMP, Hi8/Std8 PB AMP,
HI/MECHANISM/CAMERA CONTROL, SERVO, D/A CONVERTER, DC/DC CONVERTER
VC-235

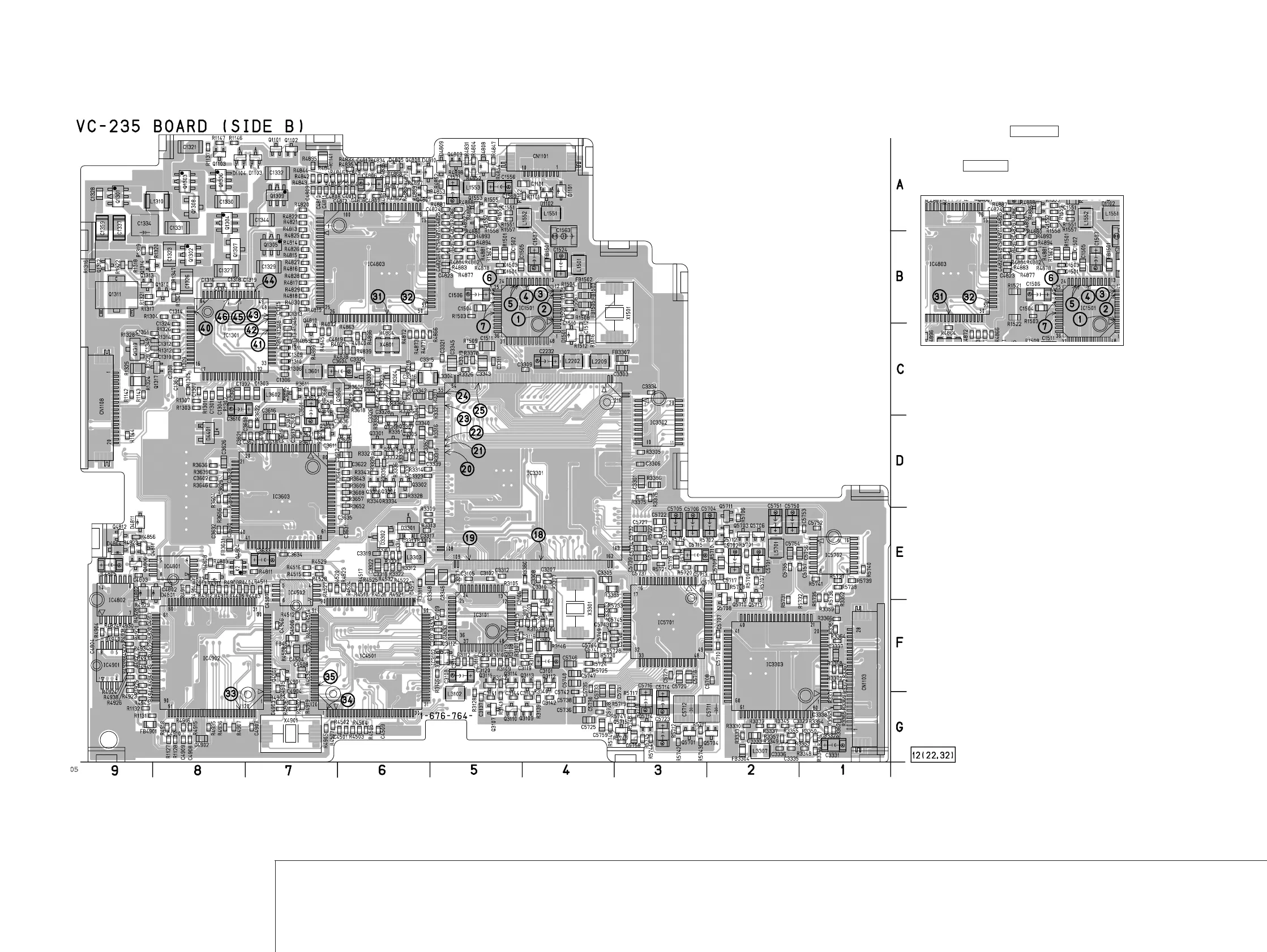

VC-235 BOARD (SIDE B)
Part No. 1-676-764-
13 (23, 33)
Location: B – 5
• Refer to the printed wiring board for suffix
number 12 (22, 32) for the parts not be shown here.
To Next Page
