Sony HT-ST5000 Service Manual

HT-ST5000
10
SECTION 2
DISASSEMBLY

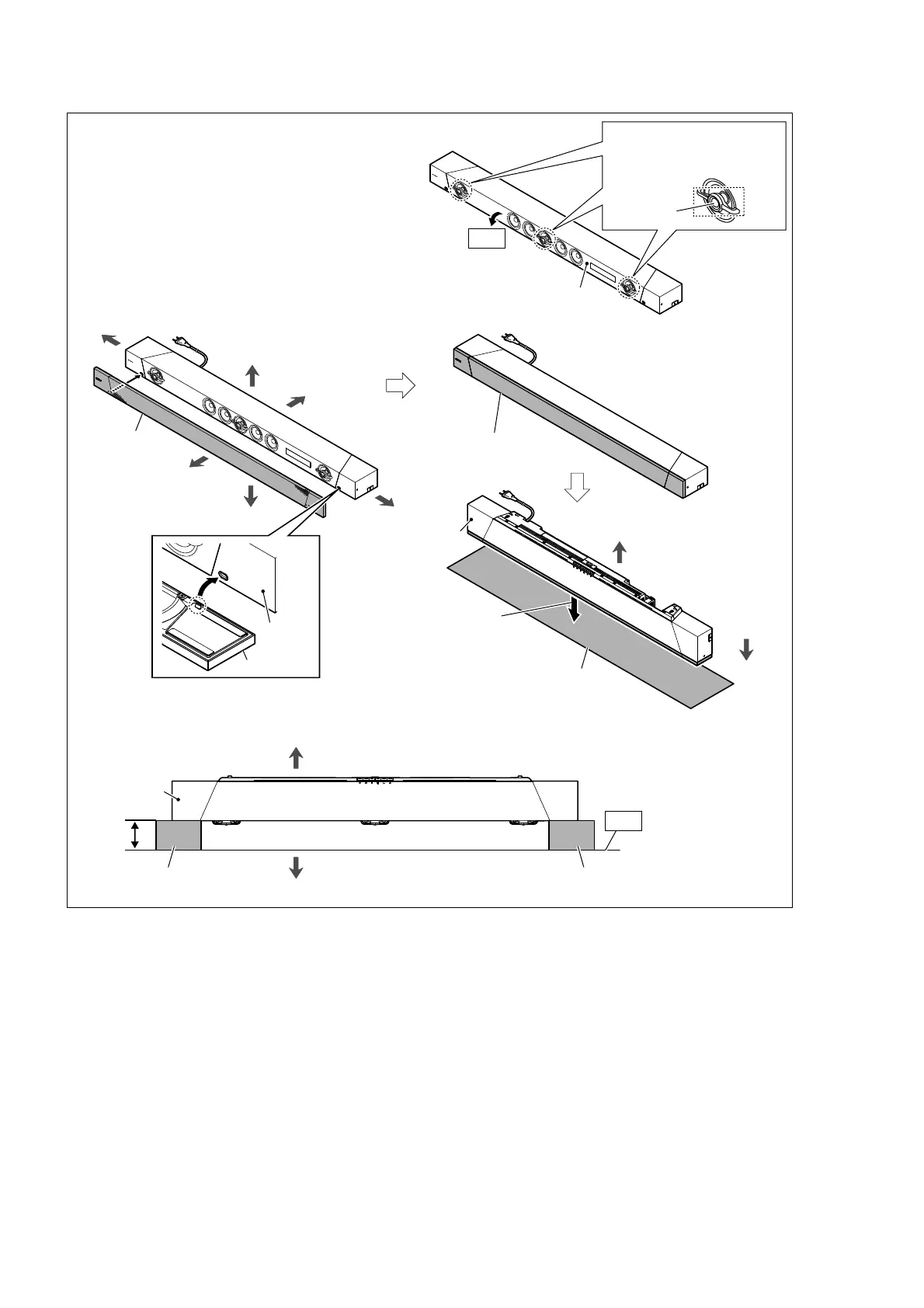

Note 1:
When disassembling this unit, facing the front side of the
unit toward the floor will make the tweeter touch the floor
and may result in damage.
Make sure to attach the included grille assy to this unit
when facing the front side of the unit toward the floor.
If you cannot prepare the grille assy, prepare a stand
high enough so that the tweeter does not touch the floor,
and place the unit on top of the stand to perform work.
front side
top side
front side
*ULOOHDVV\VHWWLQJ
6WDQGVHWWLQJ
–6LGHYLHZ–
100 mm
or more
front side
rear side
top side
bottom side
left side
right side
front side
rear side
stand
stand
front side
rear side
top side
grille assy
Note 2:
Lay a soft piece of cloth
under the unit to avoid
damaging the grille assy.
If you face the front side toward
the floor, the sections in the
dotted lines will touch the floor.
tweeter
floor
floor
1 grille assy
2 Attach the included grille
assy to this unit.
3 Face the front side
toward the floor.

Sony HT-ST5000 Specifications

General

Audio decoders	Dolby Atmos, Dolby Digital, Dolby Dual Mono
RMS rated power	- W
Audio output channels	7.1.2 channels
Soundbar speaker RMS power	90 W
Subwoofer included	Yes
Subwoofer connectivity	Wireless
Receiver included	-
Product color	Black
Bluetooth profiles	A2DP, AVRCP
HDMI in	3
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Power consumption (standby)	0.5 W
Power consumption (typical)	7 W

Weight and Dimensions

Depth	145 mm
Width	1180 mm
Height	80 mm
Soundbar weight	8200 g
Subwoofer depth	426 mm
Subwoofer width	248 mm
Subwoofer height	403 mm
Subwoofer weight	14100 g
