100
HT-ST5000
SECTION 6
EXPLODED VIEWS
Note:
-XX and -X mean standardized parts, so
they may have some difference from the
original one.
Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
The mechanical parts with no reference
number in the exploded views are not sup-
plied.
Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
Parts Color Cabinet’s Color

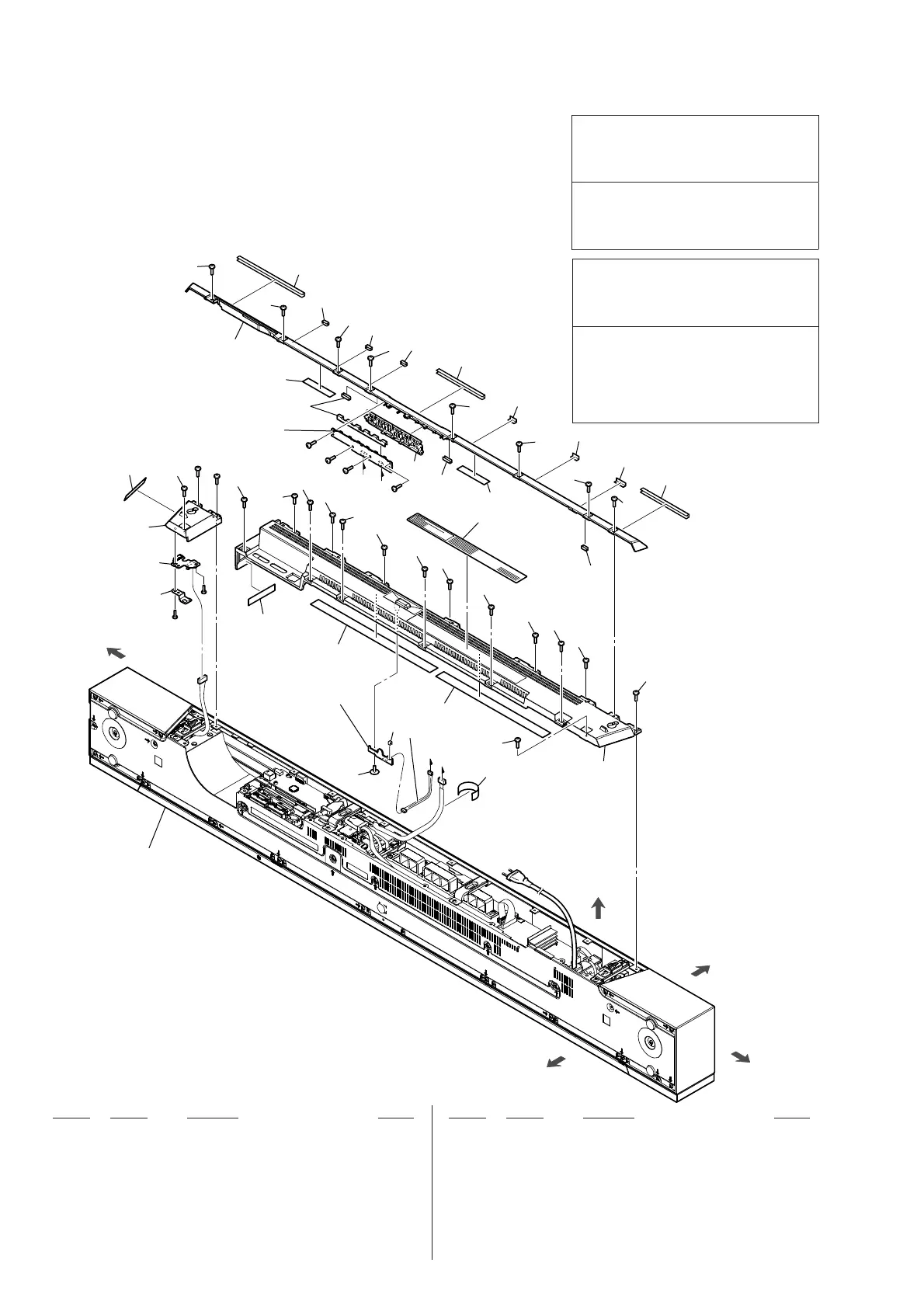

6-1. BACK PANEL SECTION
not supplied
(BAR WIRED board)
not supplied
not supplied
not supplied
not supplied
not
supplied
not supplied
not supplied
not supplied
(IR-REPEATER1 board)
not supplied
not supplied
not supplied
not supplied
not supplied
(KEY board)
not supplied
(model number
label)
bottom bracket section
A
B
B
A
1
#1
#1
#1
#1
#2
#2
#3
#3
2
3
4
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
6
6
7
8
8
8
8
8
8
8
8
9
9
9
9
9
10
11
12
rear side
top side
bottom side
left side
right side
9
The components identi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number speci ed.
Les composants identi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spéci é.
The components identi ed by mark 9 con-
tain con dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identi és par la marque
9 contiennent des informations con den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.
1 4-691-885-01 SCREW, +PWH 3X8
* 2 3-378-109-01 CUSHION, SARANET
3 4-692-070-01 SHEET (PLUG)
4 4-687-659-01 PANEL (BACK R)
5 4-537-542-01 STEP SCREW B3X6
6 3-378-109-12 CUSHION, SARANET
7 4-687-660-01 COVER (REAR)
8 4-227-843-03 SCREW (TP), FLAT HEAD
9 4-564-787-11 NON WOVEN FABRIC (T0.3)
10 4-687-661-01 BUTTON
11 X-2594-468-1 PANEL (BACK L) ASSY
12 4-427-517-01 CUSHION (F)
#1 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-645-71 SCREW +BVTP 3X6 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
