HT-ST5000
49

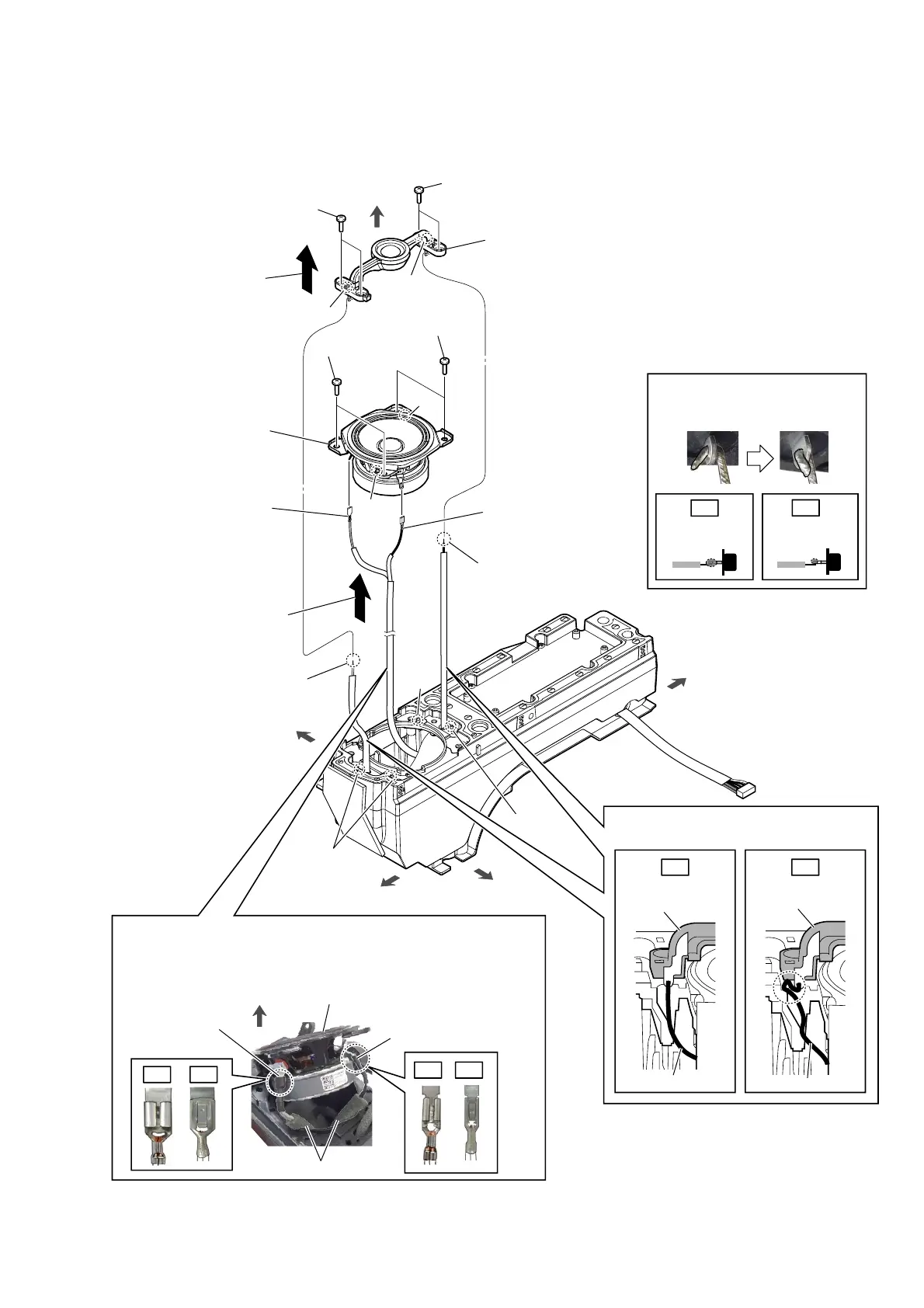

2-42. LOUDSPEAKER (FRONT L-CH)
top side
right side
2
Lift up the loudspeaker
(tweeter (front L-ch))
block in the direction
of the arrow.
4 terminal (narrow)
[black]
4 terminal (wide)
[gray]
3
Lift up the loudspeaker
(woofer (front L-ch)) block
in the direction of the arrow.
front side
OK
NG
:LUHVROGHULQJ
)LJ-!
Covered with
solder.
Not covered
with solder.
Note 1:
Solder so that wire is covered.
6 Remove the solder.
[black] (See Fig. J)
6 Remove the solder.
[white] (See Fig. J)
7 loudspeaker (tweeter (front L-ch))
Note 3:
When installing the loudspeaker
(tweeter (front L-ch)), align the
two bosses and two holes.
5 loudspeaker
(woofer (front L-ch))
Note 4:
When installing the
loudspeaker (woofer
(front L-ch)), align
the two bosses and
two holes.
hole
hole
hole
hole
boss
boss
two
bosses
loudspeaker
(tweeter)
loudspeaker
(tweeter)
OK NG
Wire is bent.
Wire is straight.
:LUHVHWWLQJ
–6HFWLRQDOYLHZ–
front side
loudspeaker
(woofer (front L-ch))
speaker connection cable
terminal (narrow)
[black]
Note 2:
When connecting the terminals of the speaker connection cable to the
loudspeaker, check the direction of the terminals before installing.
,QVWDOODWLRQGLUHFWLRQIRUWKHWHUPLQDOVZRRIHUIURQW/FK
bottom side
left side
OK NG
terminal (wide)
[gray]
OK NG
1 two screws
(BVTP3.5)
1 two screws
(BVTP3.5)
1 two screws
(BVTP3.5)
1 two screws
(BVTP3.5)
To Next Page
