Sony HT-ST5000 Service Manual

106
HT-ST5000

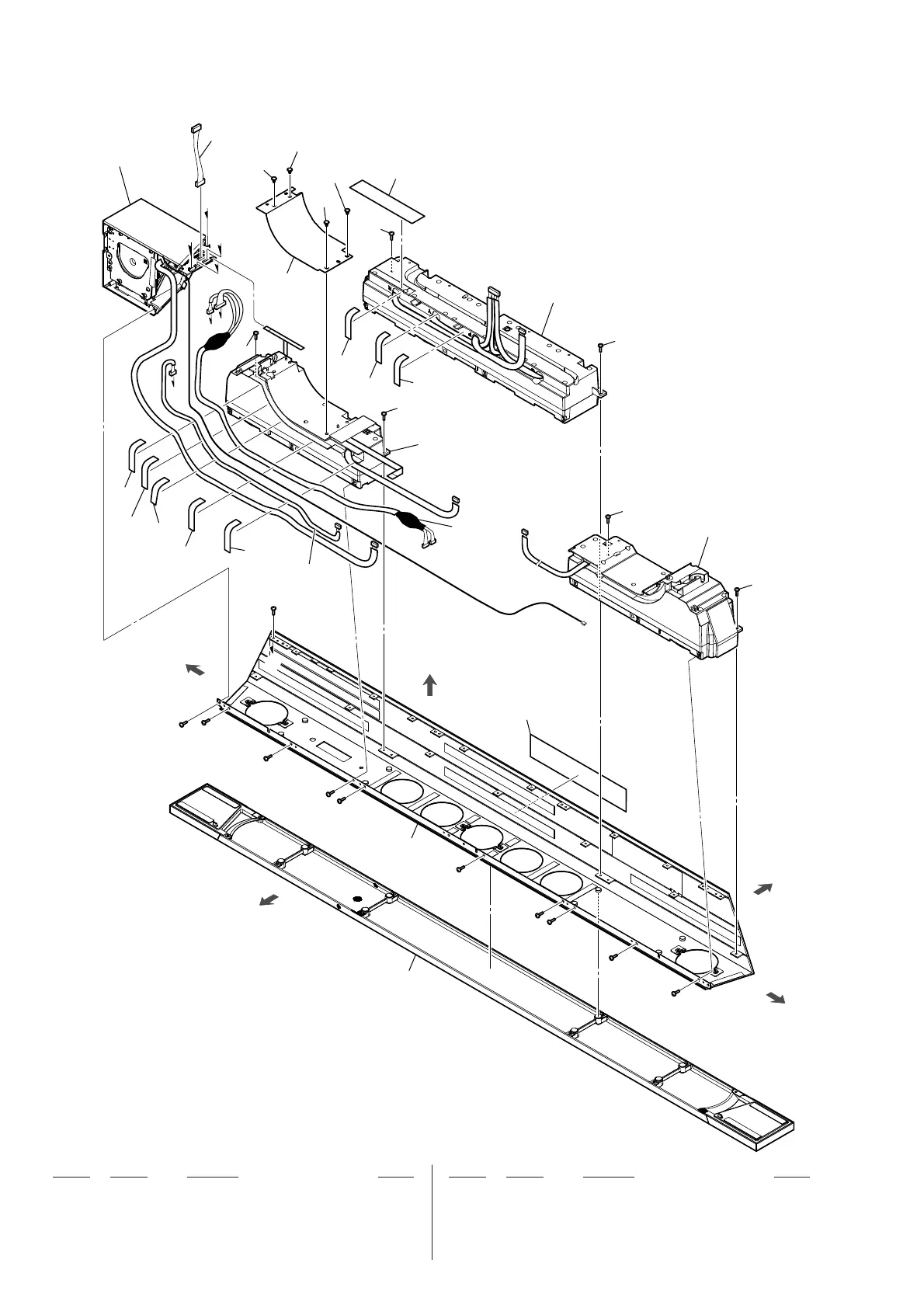

6-7. FRONT PANEL SECTION
not supplied
(POP label)
not supplied
not
supplied
not supplied
Q
R
R
S
S
T
T
Q
#6
#6
#6
#6
#6
#6
#6
#6
#6
#6
#6
speaker (L-ch) section
center speaker section
DISPLAY board section
RF modulator section
301
302
303
303
303
303
303
303
303
303
304
305
306
305
305
305
307
307
307
307
307
307
rear side
top side
bottom side
left side
right side
301 A-2170-761-A GRILLE ASSY (Grille frame) (Accessory)
302 X-2595-066-1 PANEL (FRONT) ASSY (SV)
(Including Magnet, Window)
* 303 3-378-109-01 CUSHION, SARANET
304 4-686-942-01 SHEET (R)
305 2-249-250-00 CLIP (SMALL), CANOE
306 4-691-715-01 CUSHION (FFC DISP)
307 4-537-542-01 STEP SCREW B3X6
#6 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
