HT-ST5000
21

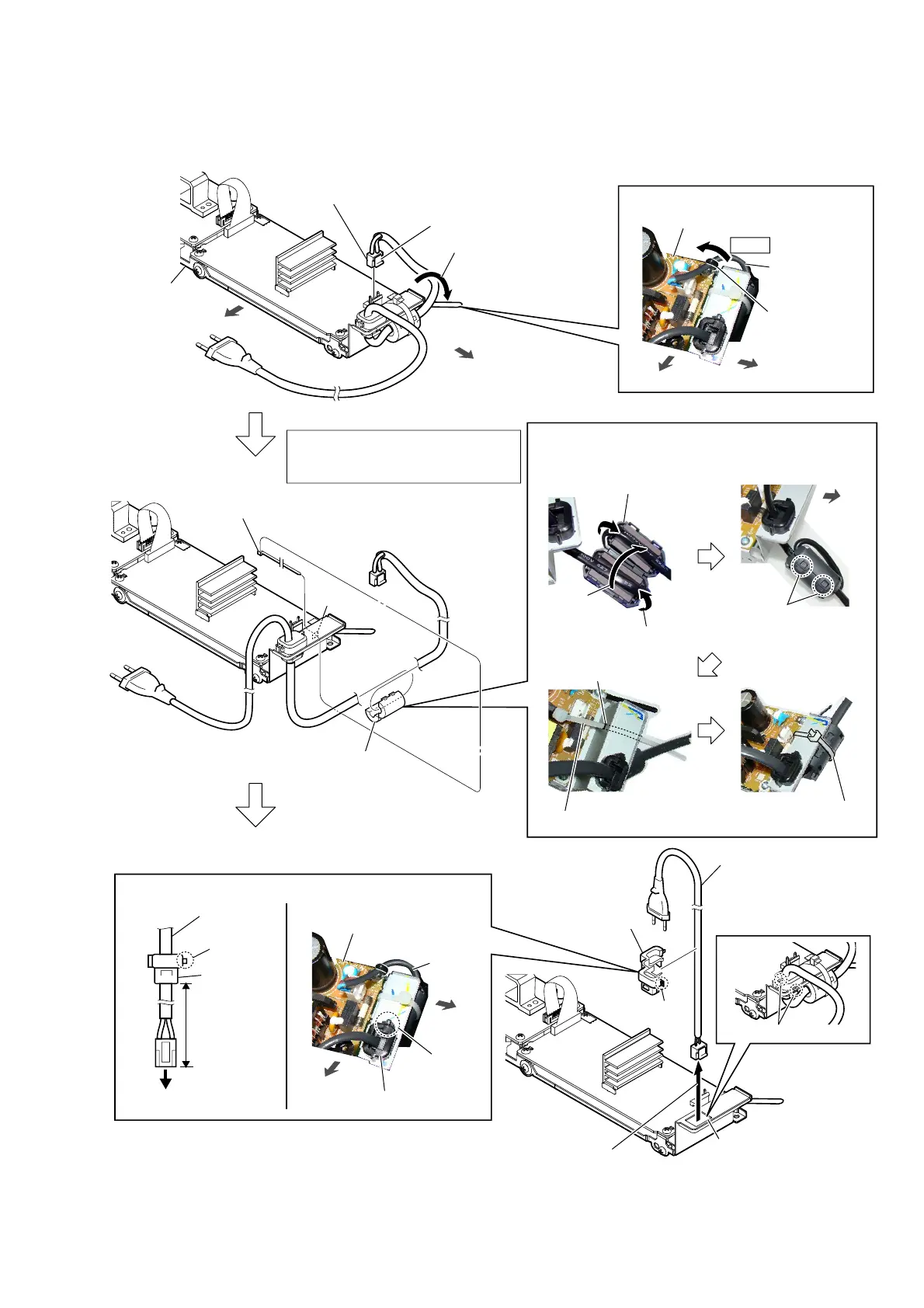

2-11. POWER CORD
2 power cord connector
(CN901)
hole
1 Remove the power cord
from the wiring stopper.
7 claw
9 power cord
8 cord bushing
3RZHUFRUGVHWWLQJ
4 clamp filter
+RZWRLQVWDOOWKHFODPSILOWHU
Attach in order from 1 to 6.
1 clamp filter
2 Wrap the power
cord around.
6 Wrap the binding
band around.
4 Lock the two claws.
5 binding band
bottom side
left side
hole
left side
6 Draw the power cord block out
of the hole in chassis block.
wiring stopper
BAR POWER board
power cord
3 Cut the binding band.
hole
power cord
cord bushing
claw
220 +5, -0 mm
to BAR POWER board
BAR POWER board
power
cord
claw
Bend.
bottom side
left side
claw side
chassis block
Note:
During reassembly, use new binding
band to fasten the wires back in place
as they were before disassembly.
,QVWDOODWLRQSRVLWLRQDQGGLUHFWLRQIRUWKHFRUGEXVKLQJ
cord bushing
bottom side
left side
3 close
5 two claws
