Sony HT-ST5000 Service Manual

109
HT-ST5000

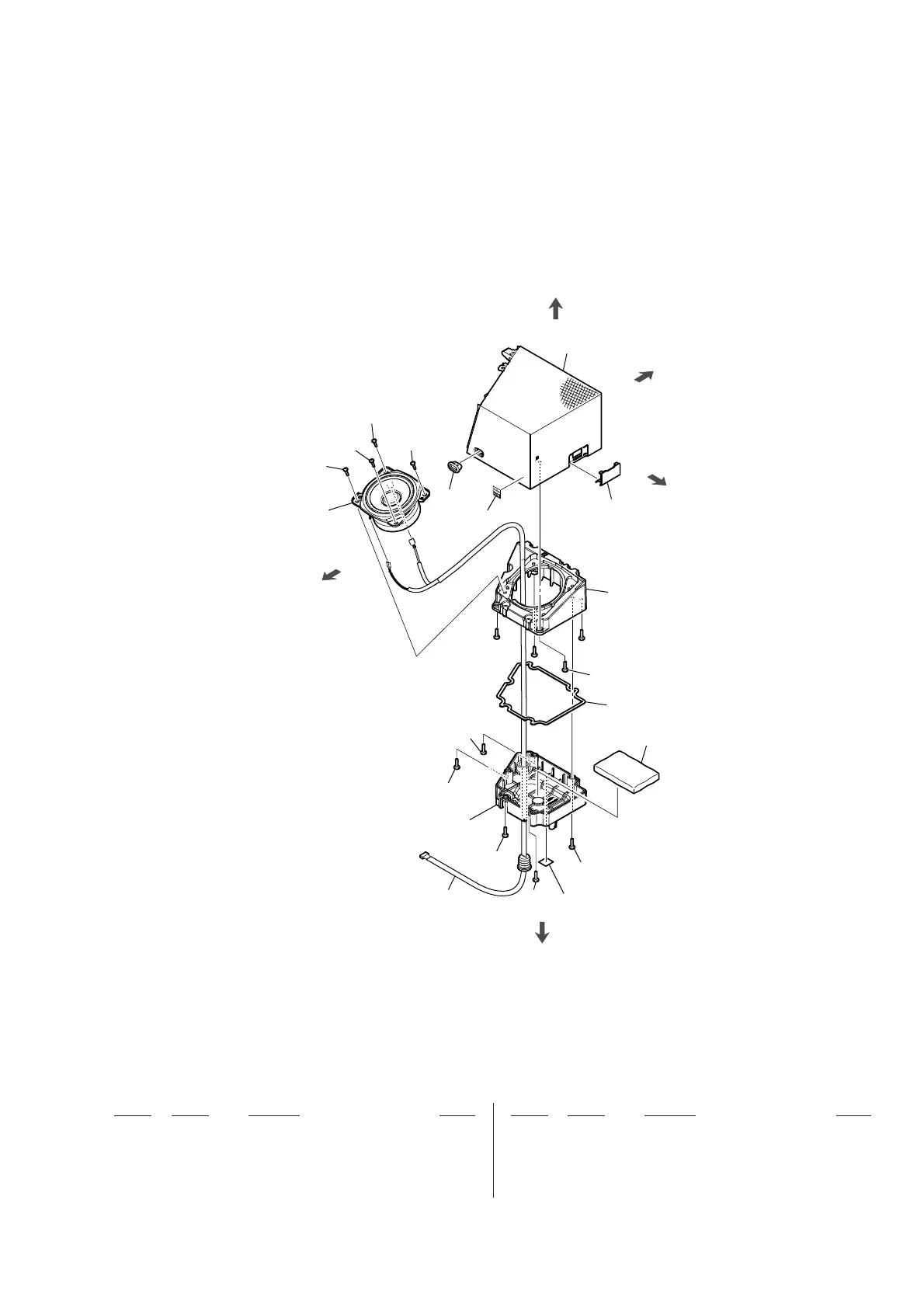

6-10. ENABLE (R-CH) SECTION
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
#2
#2
#2
#2
SP12
451
451
451
451
451
451
451
451
451
453
454
455
452
front side
rear side
top side
bottom side
right side
451 4-986-971-02 +BV TAPPING SCREW TYPE-2 3.5 (L = 10.0 mm)
452 X-2595-068-1 ENABLE (R) ASSY (SV)
(Including Housing, Punching, Base)
453 4-689-603-01 CATCHER (FLEX-OV)
454 4-477-465-21 HI-RES LABEL
455 4-686-805-01 LID (USB)
SP12 1-859-207-11 LOUDSPEAKER (56 mm)-207-11 (Top R-ch)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

Sony HT-ST5000 Specifications

General

Audio decoders	Dolby Atmos, Dolby Digital, Dolby Dual Mono
RMS rated power	- W
Audio output channels	7.1.2 channels
Soundbar speaker RMS power	90 W
Subwoofer included	Yes
Subwoofer connectivity	Wireless
Receiver included	-
Product color	Black
Bluetooth profiles	A2DP, AVRCP
HDMI in	3
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Power consumption (standby)	0.5 W
Power consumption (typical)	7 W

Weight and Dimensions

Depth	145 mm
Width	1180 mm
Height	80 mm
Soundbar weight	8200 g
Subwoofer depth	426 mm
Subwoofer width	248 mm
Subwoofer height	403 mm
Subwoofer weight	14100 g
