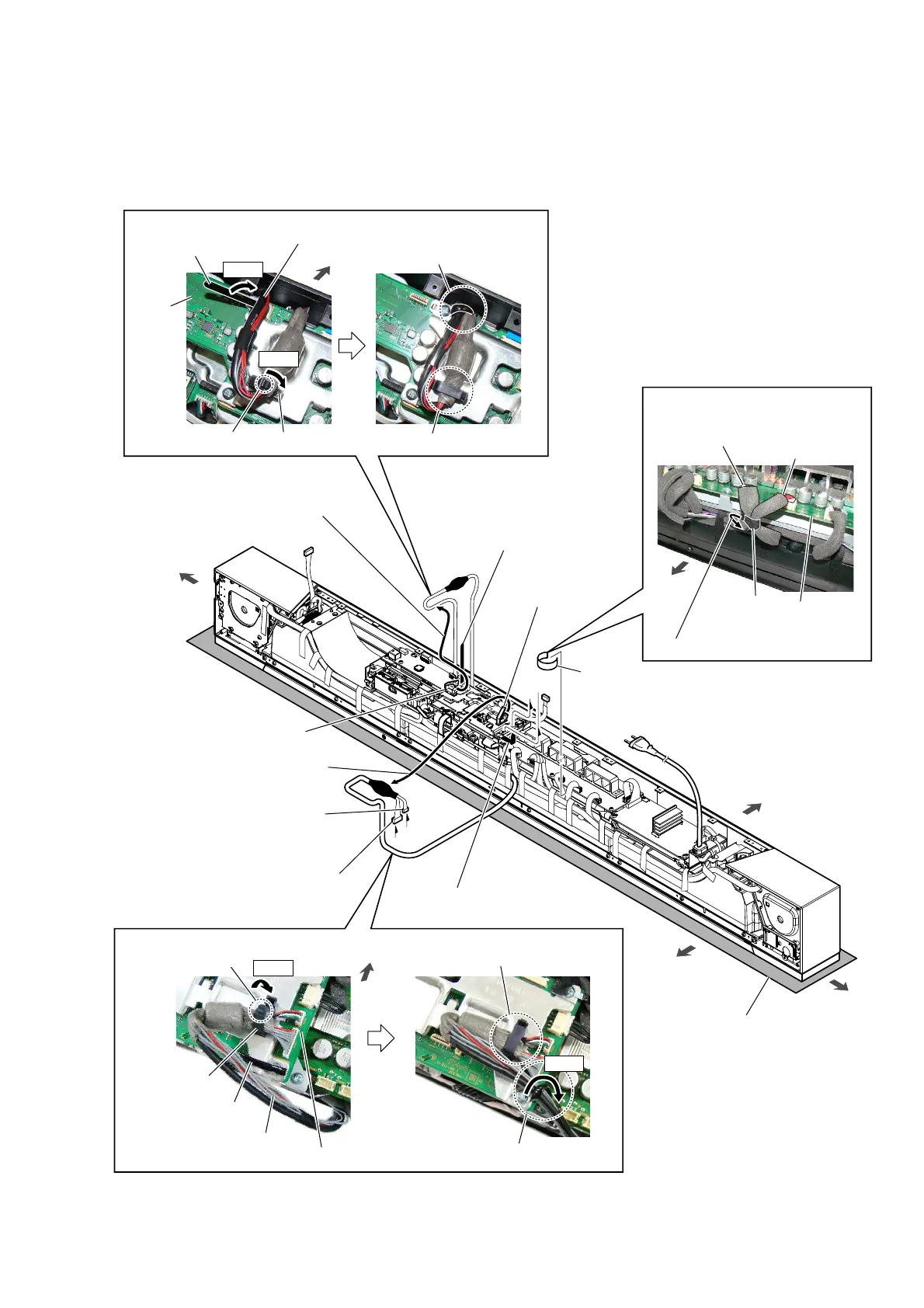

2-9. CHASSIS BLOCK-1
• Continued on 2-10 (page 20).
bottom side
claw
top side
Note:
Lay a soft piece of cloth
under the unit to avoid
damaging the grille assy.
right side
left side
7 CHUKEI-WIRE board cable
connector (CN1102)
6 CHUKEI-WIRE board cable
connector (CN1103)
4 Draw the WLAN/BT combo
card cable out of the cable
clamper.
5 Draw the CHUKEI-WIRE board
cable out of the cable clamper.
A
B
A
B
:LUHVHWWLQJ
:LUHVHWWLQJ
1
saranet
cushion
2 Remove the wire
from the clamp.
2 Remove the wire
from the clamp.
cable clamper
wiring stopper
cable clamper
saranet
cushion
AMP board
Wrap the two cables around.
bottom
side
center speaker
connection cable
front R-ch speaker
connection cable
:LUHVHWWLQJ
3 Unlock the
cable clamper.
claw
Bend.
wiring stopper
top side
DSP
board
Lock.
cable clamper
WLAN/BT combo card cable
3 Unlock the
cable clamper.
wiring stopper
cable clamper
Bend.
wiring stopper
top side
DSP board
Lock.
CHUKEI-WIRE board cable

Sony HT-ST5000 Specifications

General

Audio decoders	Dolby Atmos, Dolby Digital, Dolby Dual Mono
RMS rated power	- W
Audio output channels	7.1.2 channels
Soundbar speaker RMS power	90 W
Subwoofer included	Yes
Subwoofer connectivity	Wireless
Receiver included	-
Product color	Black
Bluetooth profiles	A2DP, AVRCP
HDMI in	3
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Power consumption (standby)	0.5 W
Power consumption (typical)	7 W

Weight and Dimensions

Depth	145 mm
Width	1180 mm
Height	80 mm
Soundbar weight	8200 g
Subwoofer depth	426 mm
Subwoofer width	248 mm
Subwoofer height	403 mm
Subwoofer weight	14100 g
