Sony HT-ST5000 Service Manual

HT-ST5000
31

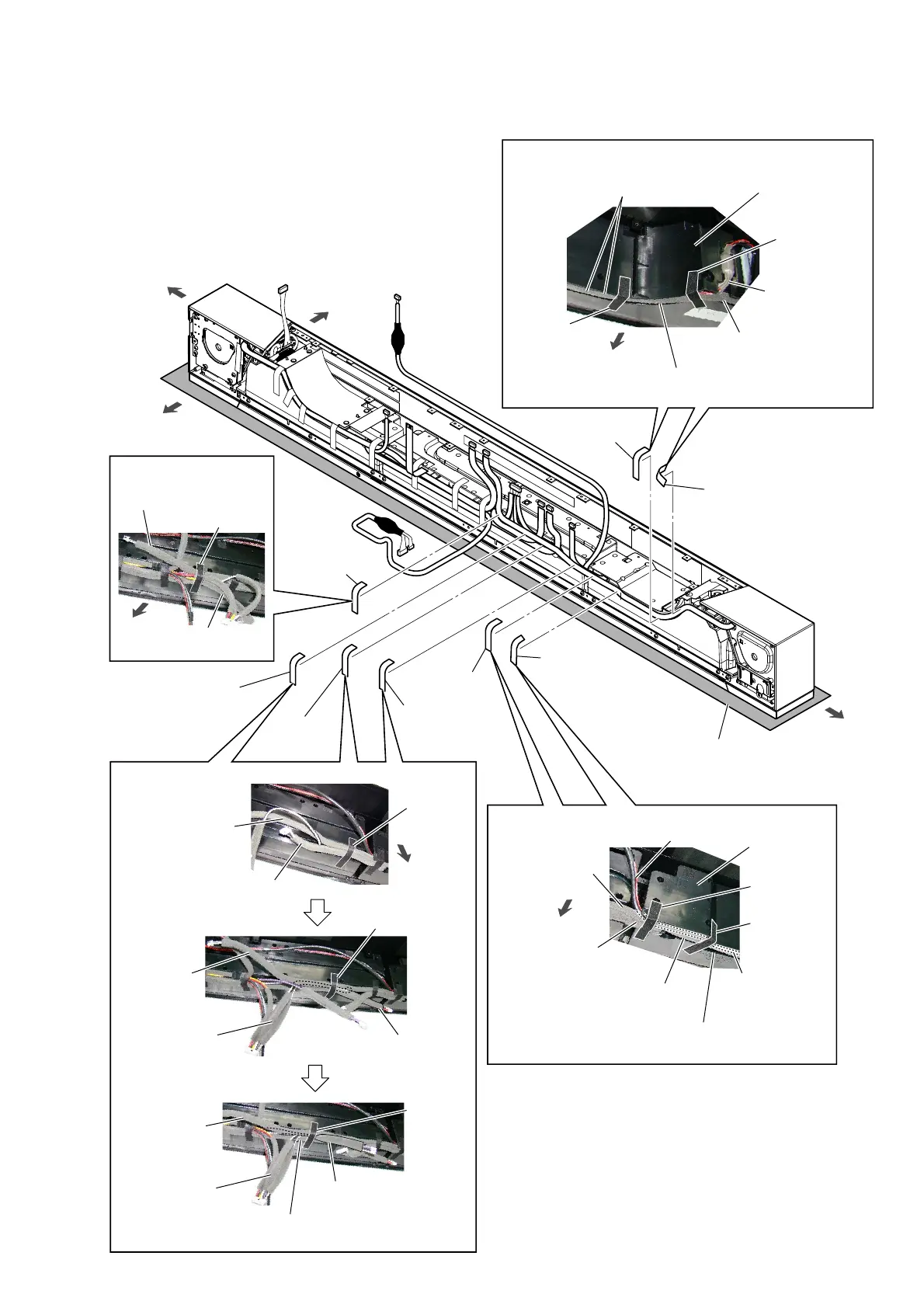

2-22. ENABLE (L-CH) BLOCK-2
• Continued on 2-23 (page 32).
bottom side
Note 1:
Lay a soft piece of cloth
under the unit to avoid
damaging the grille assy.
right side
left side
top side
7
saranet
cushion
5
saranet
cushion
6
saranet
cushion
4
saranet
cushion
3
saranet
cushion
saranet
cushion
saranet
cushion
8
saranet
cushion
1
saranet
cushion
2
saranet
cushion
saranet cushion
:LUHVHWWLQJ
top L-ch speaker
connection cable
WLAN/BT combo
card cable
saranet
cushion
saranet cushion
saranet
cushion
saranet
cushion
saranet
cushion
center speaker
connection cable
:LUHVHWWLQJ
bottom
side
front L-ch speaker
connection cable
top L-ch speaker
connection cable
bottom
side
front R-ch speaker
connection cable
center speaker
connection cable
top L-ch
speaker
connection
cable
center speaker
connection cable
center speaker
connection cable
front R-ch speaker
connection cable
top L-ch
speaker
connection
cable
:LUHVHWWLQJ
:LUHVHWWLQJ
bottom side
front L-ch speaker
connection cable
top L-ch speaker
connection cable
top L-ch speaker
connection cable
WLAN/BT combo
card cable
bottom side
WLAN/BT combo
card cable
top L-ch speaker
connection cable
WLAN/BT combo card cable and
top L-ch speaker connection cable
Note 2:
Press the two cables into the groove
of front (L-ch) speaker block.
front (L-ch)
speaker block
Note 2:
Press the two cables into the groove
of front (L-ch) speaker block.
front (L-ch)
speaker block

Sony HT-ST5000 Specifications

General

Audio decoders	Dolby Atmos, Dolby Digital, Dolby Dual Mono
RMS rated power	- W
Audio output channels	7.1.2 channels
Soundbar speaker RMS power	90 W
Subwoofer included	Yes
Subwoofer connectivity	Wireless
Receiver included	-
Product color	Black
Bluetooth profiles	A2DP, AVRCP
HDMI in	3
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Power consumption (standby)	0.5 W
Power consumption (typical)	7 W

Weight and Dimensions

Depth	145 mm
Width	1180 mm
Height	80 mm
Soundbar weight	8200 g
Subwoofer depth	426 mm
Subwoofer width	248 mm
Subwoofer height	403 mm
Subwoofer weight	14100 g
