Sony HT-ST5000 Service Manual

HT-ST5000
41

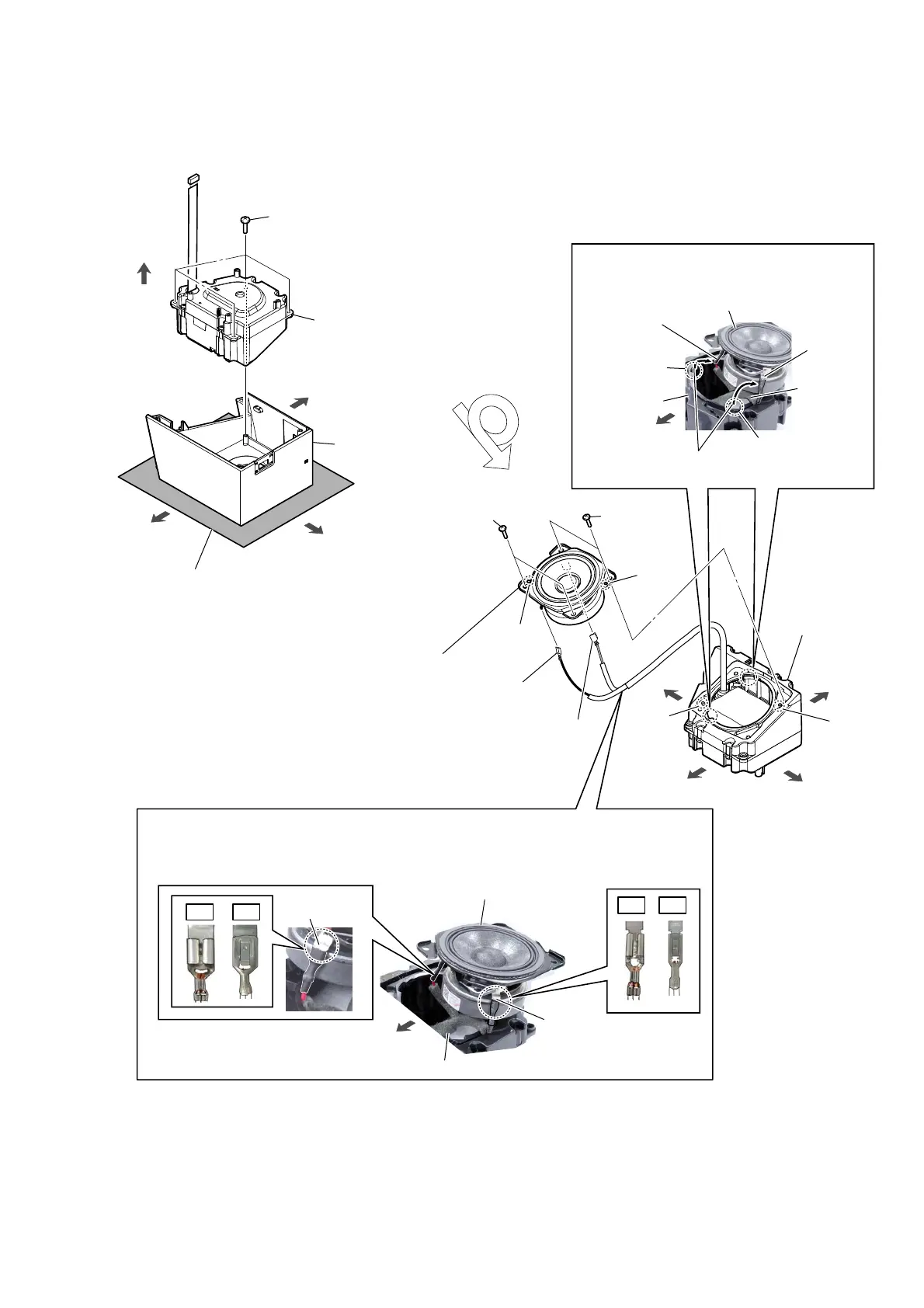

2-32. LOUDSPEAKER (TOP R-CH)
loudspeaker (top R-ch)
speaker connection cable
terminal
(narrow)
[black]
left side
Note 4:
When connecting the terminals of the speaker
connection cable to the loudspeaker, check the
direction of the terminals before installing.
,QVWDOODWLRQGLUHFWLRQIRUWKHWHUPLQDOVWRS5FK
8 loudspeaker (top R-ch)
Note 2: When installing the loudspeaker (top R-ch),
check the position of the terminals and align
the two bosses and two holes.
7 terminal
(wide)
[red]
7 terminal
(narrow)
[black]
baffle block
right side
front side
rear side
right side
bottom side
front side
rear side
left side
1 four screws
(BVTP3 u 8)
hole
hole
boss
boss
OK NG
3 top (R-ch) speaker block
2 enable (R) block
OK NG
terminal
(wide) [red]
4 two screws
(BVTP3.5)
4 two screws
(BVTP3.5)
5
Lift up the speaker block
in the direction of the arrow.
terminal
(wide)
[red]
terminal
(narrow)
[black]
groove
groove
left side
speaker
connection
cable
6 speaker block
Note 1: When installing the speaker block,
push the speaker connection cable
into the baffle (enable R).
baffle block
Note 3:
Lay a soft piece of cloth
under the unit to avoid
damaging the grille assy.

Sony HT-ST5000 Specifications

General

Audio decoders	Dolby Atmos, Dolby Digital, Dolby Dual Mono
RMS rated power	- W
Audio output channels	7.1.2 channels
Soundbar speaker RMS power	90 W
Subwoofer included	Yes
Subwoofer connectivity	Wireless
Receiver included	-
Product color	Black
Bluetooth profiles	A2DP, AVRCP
HDMI in	3
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Power consumption (standby)	0.5 W
Power consumption (typical)	7 W

Weight and Dimensions

Depth	145 mm
Width	1180 mm
Height	80 mm
Soundbar weight	8200 g
Subwoofer depth	426 mm
Subwoofer width	248 mm
Subwoofer height	403 mm
Subwoofer weight	14100 g
