Sony HT-ST5000 Service Manual

HT-ST5000
52

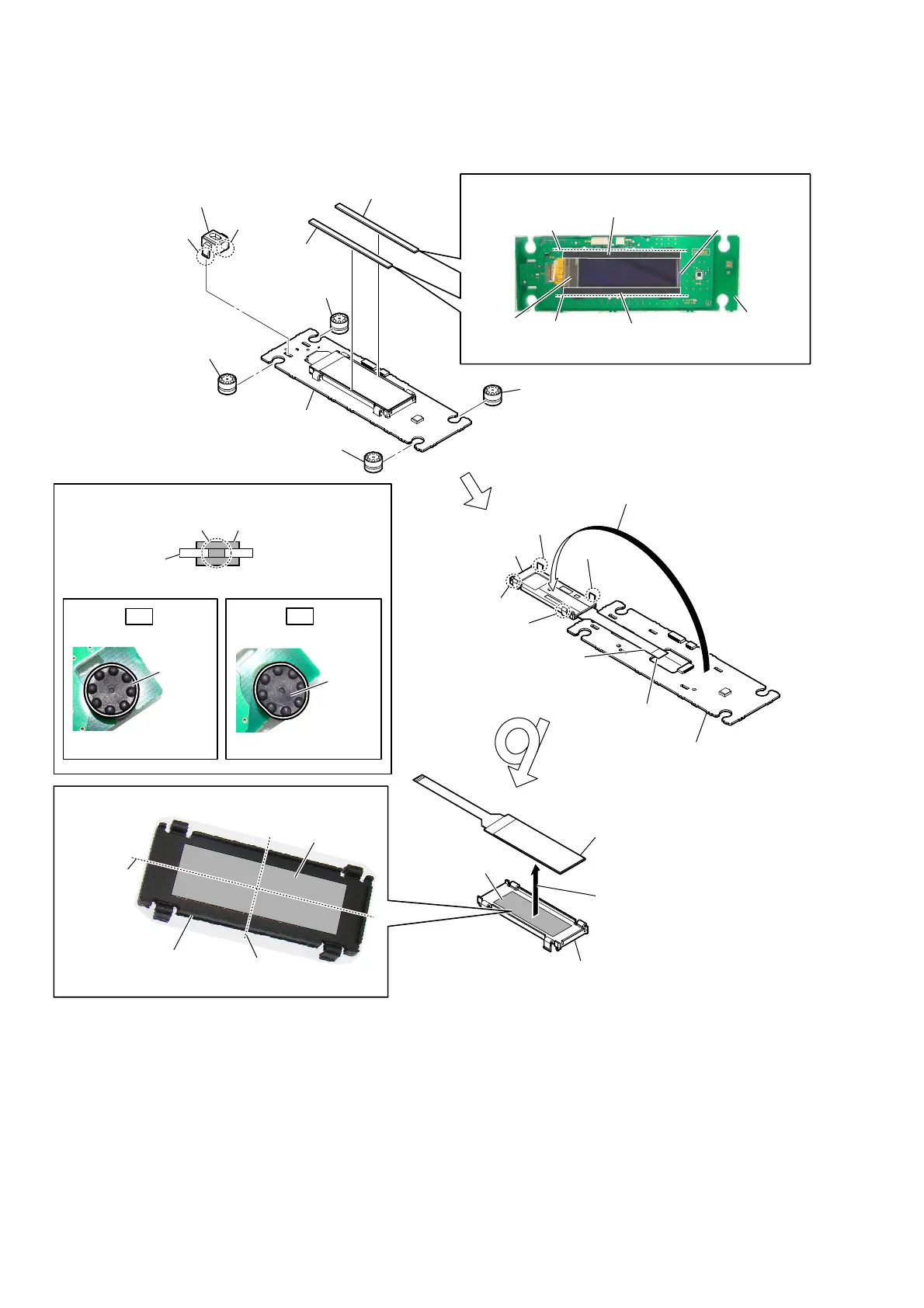

2-45. DISPLAY BOARD, OLED DISPLAY
4 cushion
(window)
cushion (window)
DISPLAY
board
OLED
display
holder (OLED)
4 cushion
(window)
3DVWLQJSRVLWLRQRIWKHFXVKLRQZLQGRZ)
guide line
guide line
cushion (window)
5 claw
5 claw
5 claw
5 claw
6
Open the OLED display block
in the direction of the arrow.
7
OLED display flexible
board (CN1702)
8 DISPLAY board
qs
OLED display
qa holder (OLED) block
0 Peel the OLED display
off of the tape (OLED).
terminal side
3DVWLQJSRVLWLRQRIWKHWDSHOLED)
tape (OLED)
holder (OLED)
guide line
(center)
tape (OLED)
guide line
(center)
9
OLED display block
OK
NG
3 holder (LED) block
1 damper (display)
(See Fig. K)
2 claw
2 claw
+RZWRLQVWDOOWKHGDPSHUGLVSOD\)
Shape is round.
Shape is not round.
damper
(display)
damper
(display)
DISPLAY board
groove
1 damper (display)
(See Fig. K)
1 damper (display)
(See Fig. K)
1 damper (display)
(See Fig. K)
)LJK!
–7RSYLHZ–
–7RSYLHZ–
–6LGHYLHZ–
damper (display)
DISPLAY board block

Sony HT-ST5000 Specifications

General

Audio decoders	Dolby Atmos, Dolby Digital, Dolby Dual Mono
RMS rated power	- W
Audio output channels	7.1.2 channels
Soundbar speaker RMS power	90 W
Subwoofer included	Yes
Subwoofer connectivity	Wireless
Receiver included	-
Product color	Black
Bluetooth profiles	A2DP, AVRCP
HDMI in	3
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Power consumption (standby)	0.5 W
Power consumption (typical)	7 W

Weight and Dimensions

Depth	145 mm
Width	1180 mm
Height	80 mm
Soundbar weight	8200 g
Subwoofer depth	426 mm
Subwoofer width	248 mm
Subwoofer height	403 mm
Subwoofer weight	14100 g
