Sony HT-ST5000 Service Manual

HT-ST5000
51

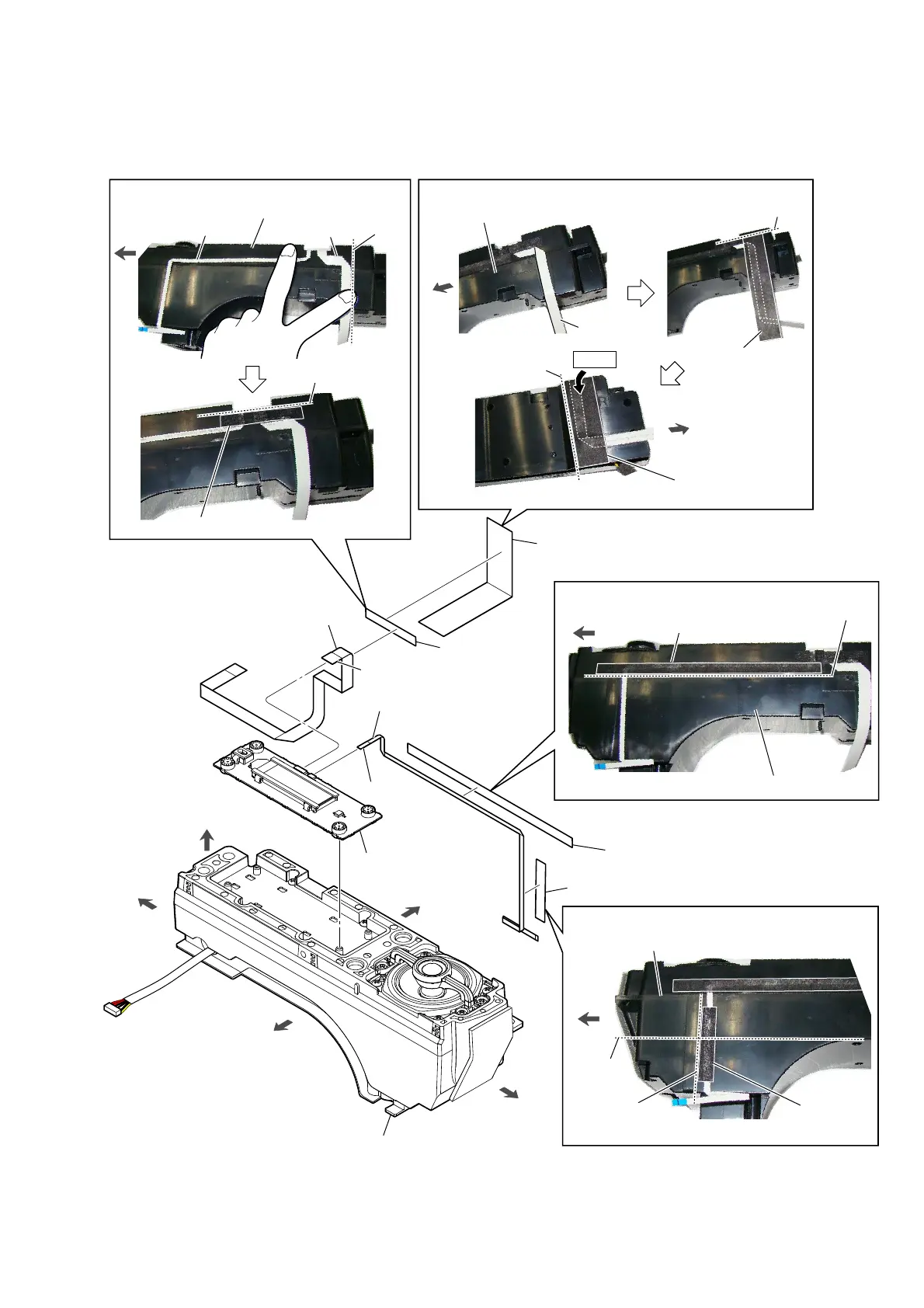

2-44. DISPLAY BLOCK
guide line
guide line
7 display block
cushion
(FFC DISP)
,QVWDOODWLRQSRVLWLRQRIWKHFXVKLRQ))&',63
,QVWDOODWLRQSRVLWLRQRIWKHFXVKLRQ))&1)&
,QVWDOODWLRQSRVLWLRQRIWKHVDUDQHWFXVKLRQ
guide line
cushion
(FFC NFC)
front speaker (R-ch) block
right side
left side
bottom side
top side
saranet
cushion
,QVWDOODWLRQSRVLWLRQRIWKHVDUDQHWFXVKLRQ
saranet cushion
guide line
front side
guide line
FFC 16P
cushion
(FFC DISP)
–7RSYLHZ–
front (R-ch) speaker block
right
side
–5HDUYLHZ–
Bend.
left side
–7RSYLHZ–
–7RSYLHZ–
front (R-ch) speaker block
front (R-ch) speaker block
front (R-ch) speaker block
right
side
guide line
(center)
right side
–7RSYLHZ–
right
side
guide line
FFC 16PFFC 6P
5 FFC 6P
(CN1704)
terminal side
2 saranet cushion
3 cushion (FFC NFC)
6 FFC 16P
(CN1705)
terminal side
4 saranet cushion
1 cushion
(FFC DISP)

Sony HT-ST5000 Specifications

General

Audio decoders	Dolby Atmos, Dolby Digital, Dolby Dual Mono
RMS rated power	- W
Audio output channels	7.1.2 channels
Soundbar speaker RMS power	90 W
Subwoofer included	Yes
Subwoofer connectivity	Wireless
Receiver included	-
Product color	Black
Bluetooth profiles	A2DP, AVRCP
HDMI in	3
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Power consumption (standby)	0.5 W
Power consumption (typical)	7 W

Weight and Dimensions

Depth	145 mm
Width	1180 mm
Height	80 mm
Soundbar weight	8200 g
Subwoofer depth	426 mm
Subwoofer width	248 mm
Subwoofer height	403 mm
Subwoofer weight	14100 g
