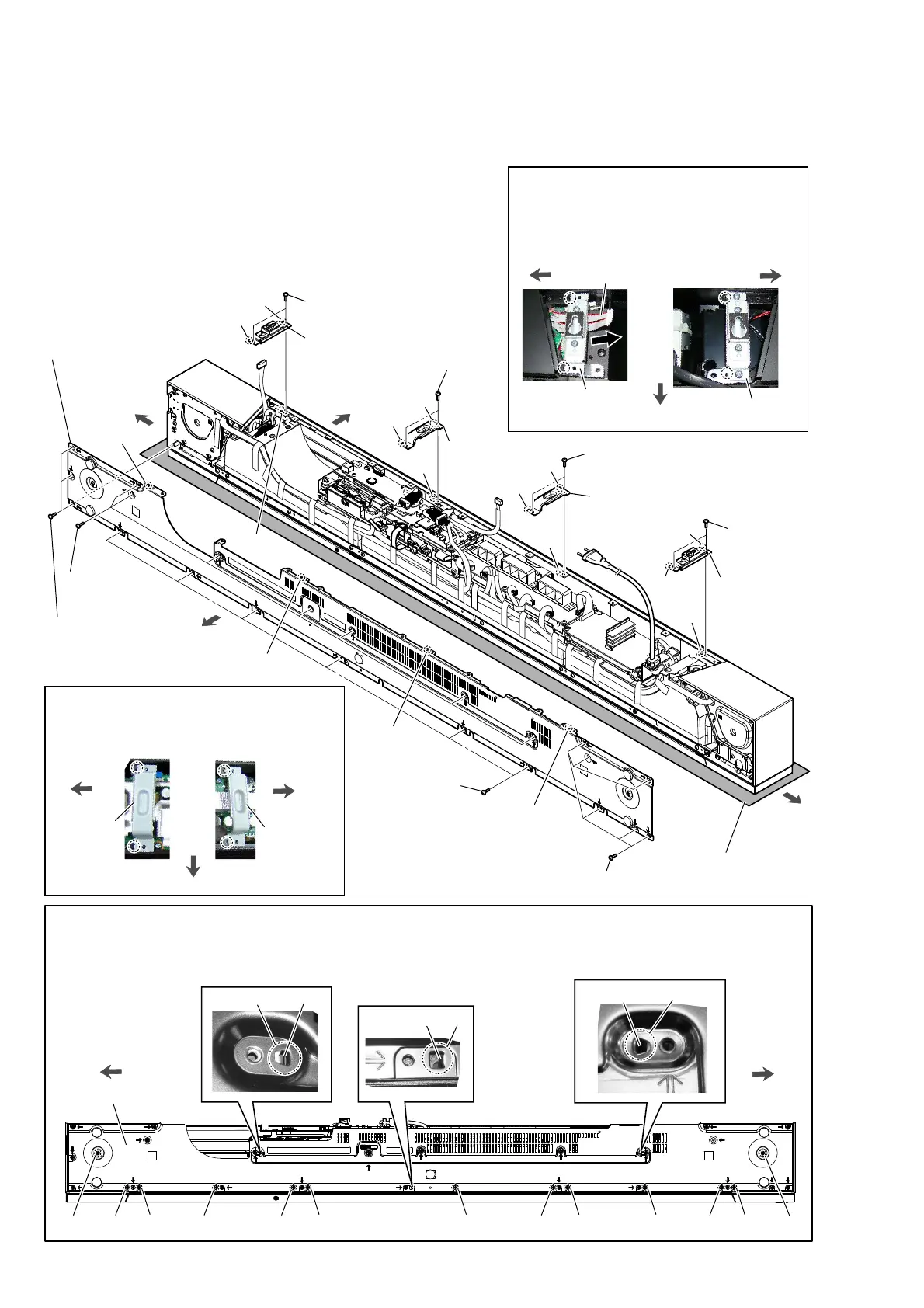

2-8. BRACKET (BOTTOM) BLOCK
1 two screws
(BV3)
3 two screws
(BV3)
4
bracket (arm-B)
(See Fig. D)
3 two screws
(BV3)
1 two screws
(BV3)
5 seven screws
(BV/ring)
5 three screws
(BV/ring)
5 six screws
(BV/ring)
5 six screws
(BV/ring)
bottom side
bottom side
top side
Note 2:
Lay a soft piece of cloth
under the unit to avoid
damaging the grille assy.
right side
left side
rib
rib
hole
hole
rib
rib
hole
hole
hole
2
bracket (arm-A)
block
(See Fig. C)
6
bracket (bottom) block
(See Fig. B)
rib
rib
rib
rib
4
bracket (arm-B)
(See Fig. D)
2
bracket (arm-A)
block
(See Fig. C)
hole
hole
hole
bottom side
< Fig. C >
bracket (arm-A)
block
CHUKEI-WIRE
board cable
Note 1:
When installing the bracket (arm-A) block,
align the two ribs and two holes.
(Draw out the cable before installation)
< Fig. D >
< Fig. B >
bracket
(arm-B)
block
bracket
(arm-B)
block
Note 3:
When installing the bracket (arm-B) block,
align the two ribs and two holes.
1RWHVZKHQDVVHPEOLQJRUGLVDVVHPEOLQJWKHEUDFNHWERWWRPEORFN
–%RWWRPYLHZ–
bracket (bottom) block
Disassembling:
Removing the thirteen screws at the
Ÿ
mark screws is not necessary.
Assembling:
When installing the bracket (bottom) block, align the three ribs and three holes.
Ÿ
ŸŸ
Ÿ
Ÿ
Ÿ
Ÿ Ÿ
Ÿ
Ÿ
ŸŸ
Ÿ
rib
hole
rib
hole
rib hole
left side
right side
left side
right side
1RWHDERXWLQVWDOOLQJWKHEUDFNHWDUP$EORFN
1RWHDERXWLQVWDOOLQJWKHEUDFNHWDUP%EORFN
left side
right side
bracket (arm-A)
block
To Next Page
