HT-ST5000
15

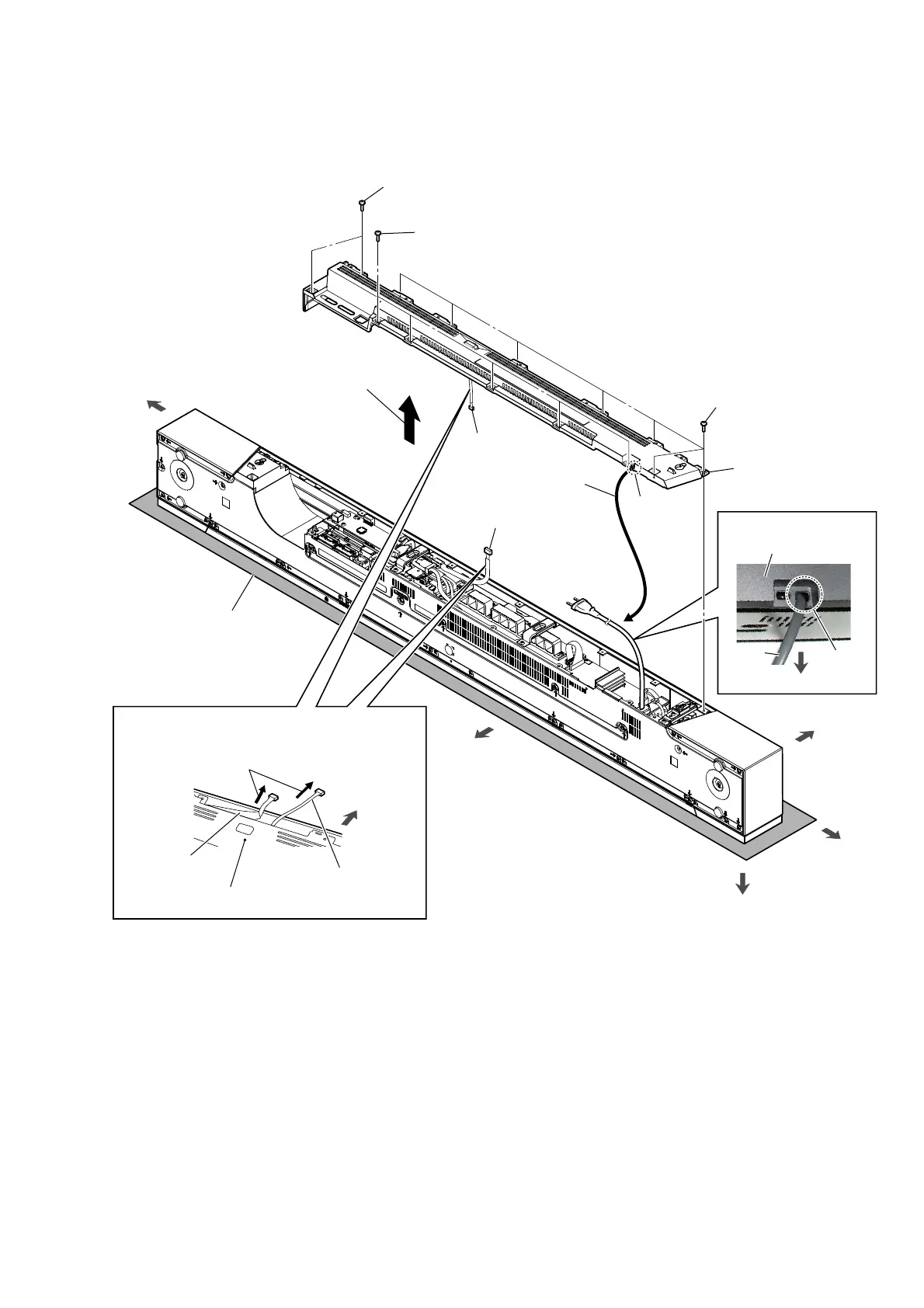

2-4. PANEL (BACK L) BLOCK
bottom side
top side
Note 1:
Lay a soft piece of cloth
under the unit to avoid
damaging the grille assy.
right side
left side
1 two step screws
(B3 u 6)
2
Lift up the
panel (back L)
block
in the direction of the arrow.
4 panel (back L)
block
1 seven step screws
(B3 u 6)
1 five step screws
(B3 u 6)
3 Draw the power cord
out of the groove.
3RZHUFRUGVHWWLQJ
groove
power
cord
groove
panel (back L) block
bottom side
front side
IR-REPEATER1
board cable
DSP board cable
1RWHDERXWLQVWDOOLQJWKHSDQHOEDFN/EORFN
DSP board cable
Note 2:
Draw out the two cables
before installation.
IR-REPEATER1
board cable
top side
panel (back L) block
5HDUYLHZ
