HT-ST5000
43

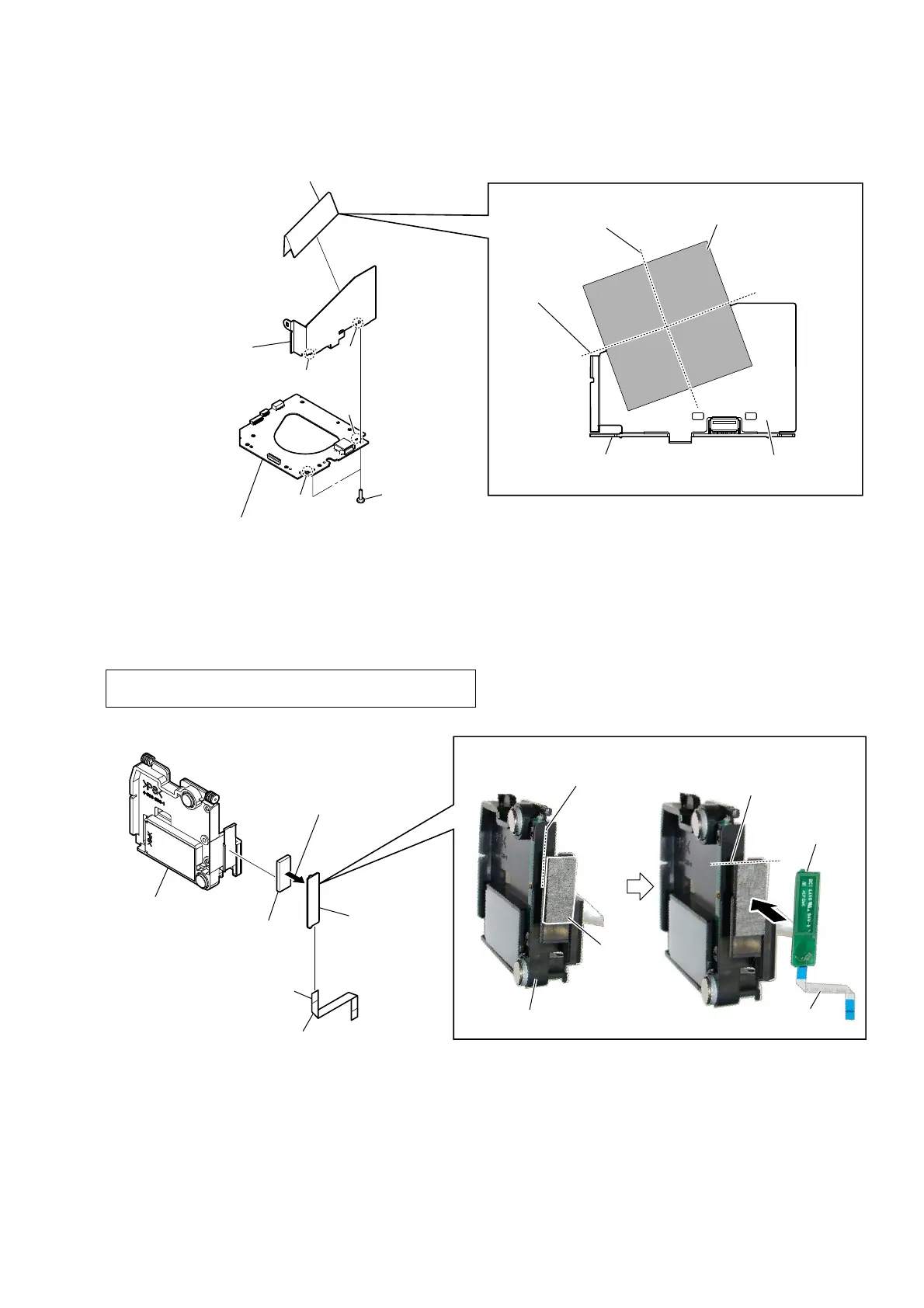

2-34. USB-CHUKEI BOARD
2-35. NFC BOARD
2 two screws
(BVTP3 u 8)
guide line
(center)
guide line
(center)
bracket
(sheald magnet)
cushion (shield magnet)
USB-CHUKEI board
3DVWLQJSRVLWLRQRIWKHFXVKLRQVKLHOGPDJQHW
3 bracket
(sheald magnet)
1 cushion
(shield magnet)
hole
rib
rib
hole
4 USB-CHUKEI board
Note:
When installing the USB-CHUKEI board,
align the two ribs and two holes.
3 FFC 6P
2 cushion
(NFC)
4 NFC board
cushion
(NFC)
guide line
NFC board
FFC 6P
terminal side
holder (wireless R) block
,QVWDOODWLRQSRVLWLRQRIWKH1)&ERDUGEORFN
holder (wireless R) block
1 Peel the NFC board block
off of the cushion (NFC).
guide line
Note: When the NFC board is replaced, refer to “NFC CONNECTION
CHECKING METHOD” on page 6.
