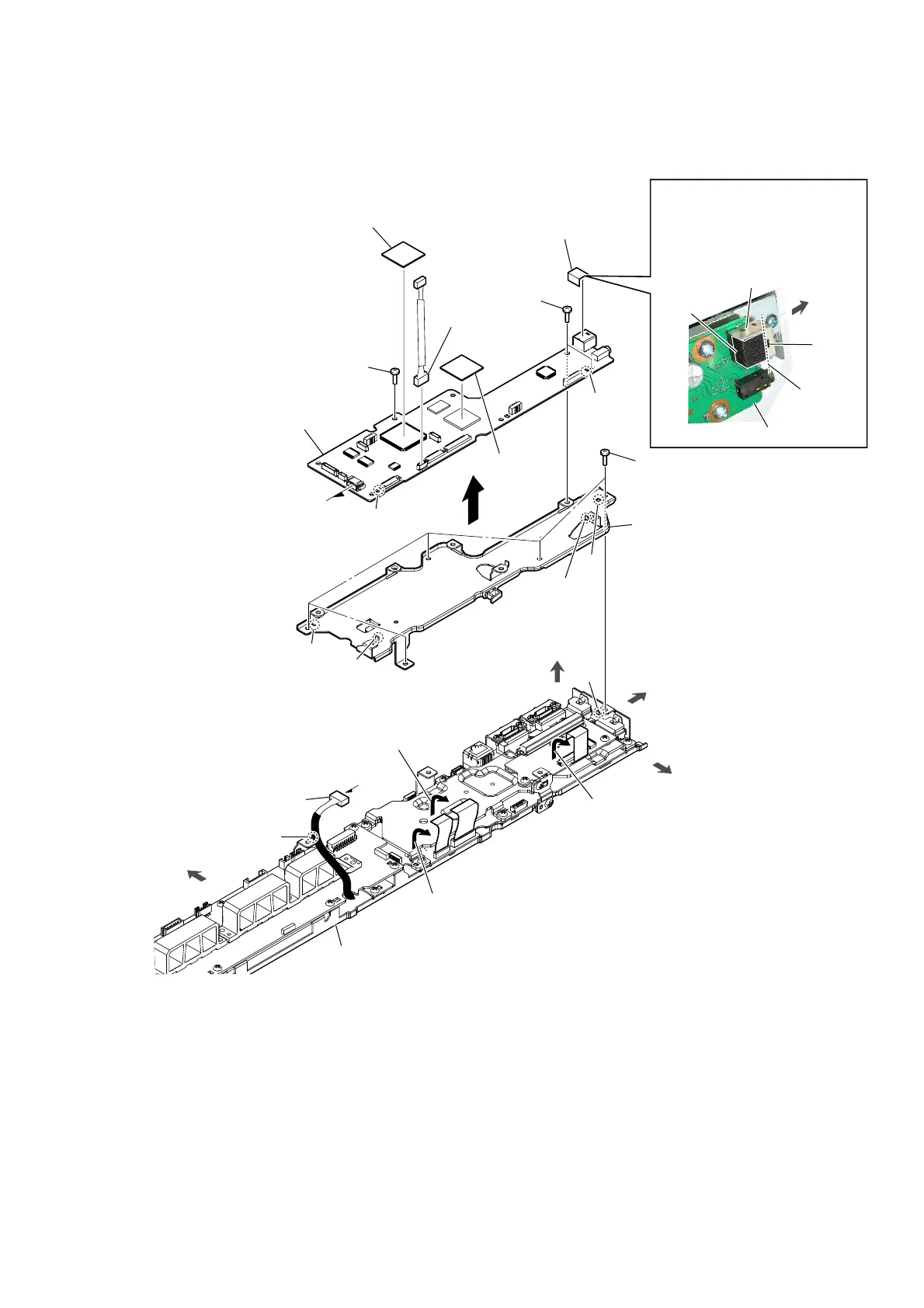

2-16. DSP BOARD-3, CHASSIS (DSP) BLOCK
1
connector
(CN2404)
3 cushion (T03)
3DVWLQJSRVLWLRQRI
WKHFXVKLRQ7
Note 2:
When affixing the cushion,
be careful that it does not
obstruct the hole.
9 five screws
(BV3)
6 two screws
(BVTP3 u 8)
6 screw
(BVTP3 u 8)
5 radio wave absorption sheet
4 radiation sheet
C
C
2
MB-1611 board cable
connector (CN801)
0
Move the FFC 30P
to the top side.
0
Move the FFC 40P
to the top side.
0
Move the FFC 24P
to the top side.
7
top side
8 DSP board
Note 1:
When installing the DSP board,
align the two ribs and two holes.
hole
hole
rib
rib
bottom side
rear side
guide line
hole
CN1101
cushion
(T03)
DSP board
right side
right side
chassis block
hole
hole
rib
rib
qa chassis
(
DSP
) block
Note 3:
When installing the chassis
(DSP) block, align the two
ribs and two holes.
