HT-ST5000
47

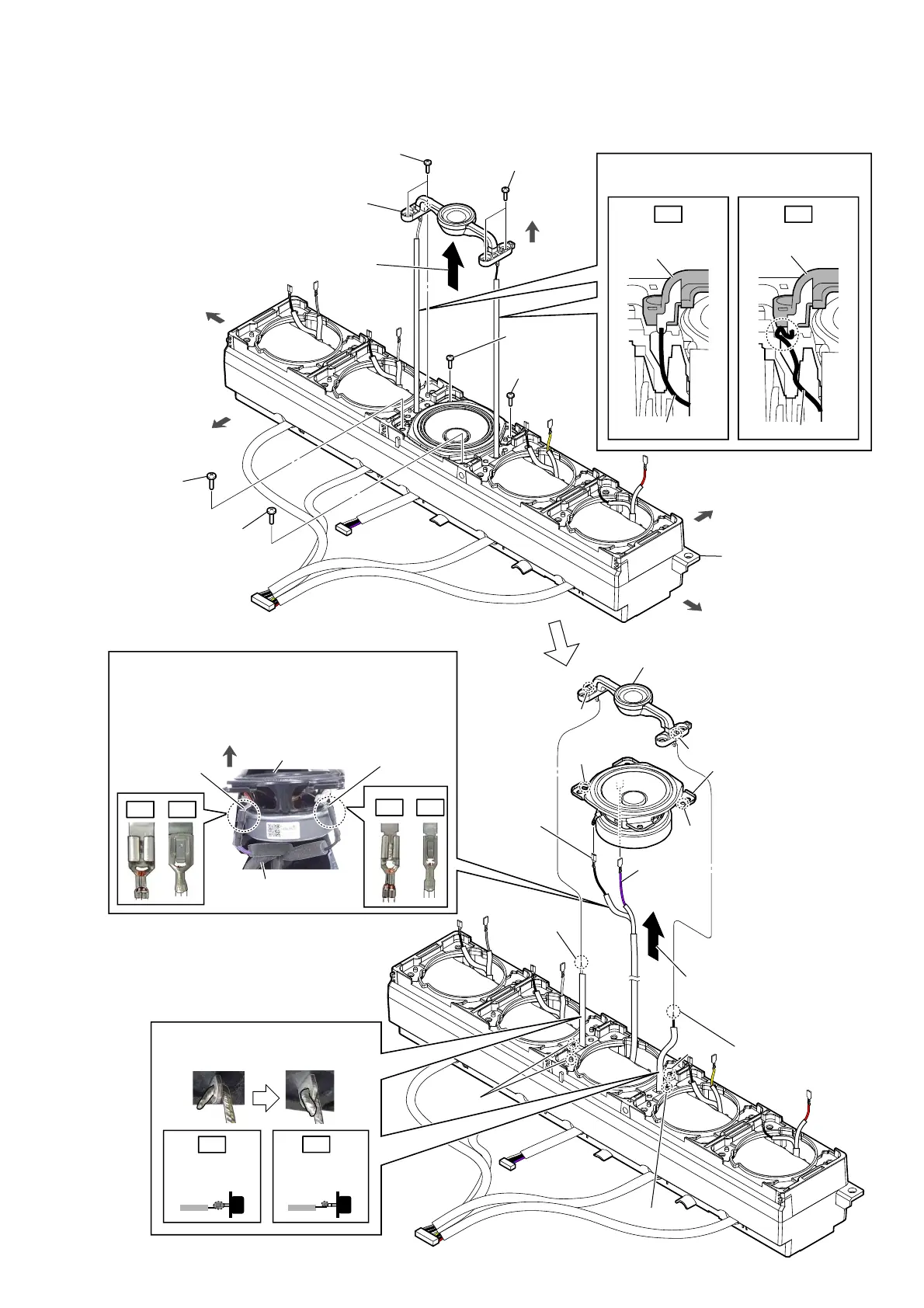

2-40. LOUDSPEAKER (CENTER: TWEETER/WOOFER)
top side
loudspeaker
(tweeter)
loudspeaker
(tweeter)
bottom side
left side
right side
2
Lift up the loudspeaker
(tweeter (center)) block
in the direction of the arrow.
3 loudspeaker
(tweeter (center))
block
1 two screws
(BVTP3.5)
1 two screws
(BVTP3.5)
1 screw
(BVTP3.5)
1 screw
(BVTP3.5)
1 screw
(BVTP3.5)
1 screw
(BVTP3.5)
OK NG
center speaker block
Wire is bent.
Wire is straight.
:LUHVHWWLQJ
–6HFWLRQDOYLHZ–
5 terminal
(narrow)
[black]
front side
5 terminal
(wide)
[purple]
8 loudspeaker (
tweeter (center)
)
Note 4:
When installing the loudspeaker
(tweeter (center)), align the two
bosses and two holes.
6 loudspeaker
(woofer (center))
Note 3:
When installing the
loudspeaker
(woofer (center)),
align the two bosses
and two holes.
hole
hole
hole
hole
7 Remove the solder.
[black]
front side
loudspeaker
(woofer (center))
speaker connection cable
Note 1:
When connecting the terminals of the speaker
connection cable to the loudspeaker, check the
direction of the terminals before installing.
,QVWDOODWLRQGLUHFWLRQIRUWKHWHUPLQDOVZRRIHUFHQWHU
terminal (wide)
[purple]
OK NG
OK NG
terminal
(narrow)
[black]
7 Remove
the solder.
[white]
OK
NG
Covered with
solder.
Not covered
with solder.
Note 2:
Solder so that wire is covered.
:LUHVROGHULQJ
boss
boss
two bosses
4
Lift up the loudspeaker
(woofer (center)) block
in the direction of the arrow.
To Next Page
