Sony HT-ST5000 Service Manual

HT-ST5000
38

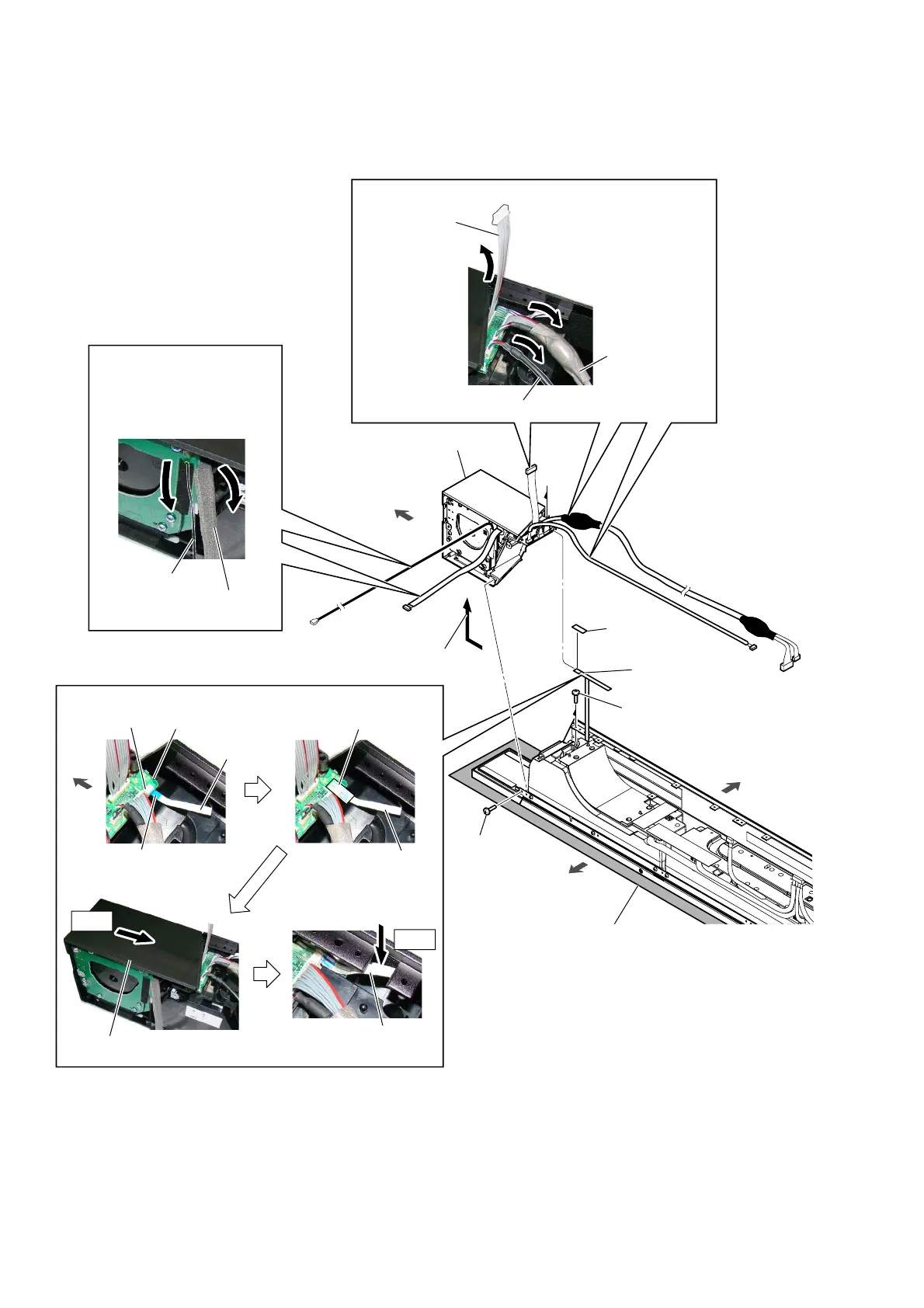

2-29. ENABLE (R-CH) BLOCK-3
Note 2:
Lay a soft piece of cloth
under the unit to avoid
damaging the grille assy.
bottom side
right side
top side
))&3VHWWLQJ
1 screw
(BVTP3 u 8)
1 screw
(BVTP3 u 8)
2 Lift up the enable (R-ch) block
in the direction of the arrow.
5 enable (R-ch) block
CHUKEI-WIRE board
FFC 6P
4 FFC 6P
(CN2301)
3
filament tape
(sub material)
enable (R-ch) block
The opposite side
is terminal side.
CN2301
filament tape
(sub material)
Push.
Push.
I
I
FFC 6P
FFC 6P
right
side
1RWHDERXWLQVWDOOLQJWKHHQDEOH5FKEORFN
Note 1:
Draw out the three cables
before installation.
1RWHDERXWLQVWDOOLQJ
WKHHQDEOH5FKEORFN
Note 1:
Draw out the cable and
coaxial harness before
installation.
top R-ch speaker
connection cable
coaxial harness
CHUKEI-WIRE board cable
CHUKEI-WIRE
board cable
CHUKEI-WIRE
board cable

Sony HT-ST5000 Specifications

General

Audio decoders	Dolby Atmos, Dolby Digital, Dolby Dual Mono
RMS rated power	- W
Audio output channels	7.1.2 channels
Soundbar speaker RMS power	90 W
Subwoofer included	Yes
Subwoofer connectivity	Wireless
Receiver included	-
Product color	Black
Bluetooth profiles	A2DP, AVRCP
HDMI in	3
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Power consumption (standby)	0.5 W
Power consumption (typical)	7 W

Weight and Dimensions

Depth	145 mm
Width	1180 mm
Height	80 mm
Soundbar weight	8200 g
Subwoofer depth	426 mm
Subwoofer width	248 mm
Subwoofer height	403 mm
Subwoofer weight	14100 g
