HT-ST5000

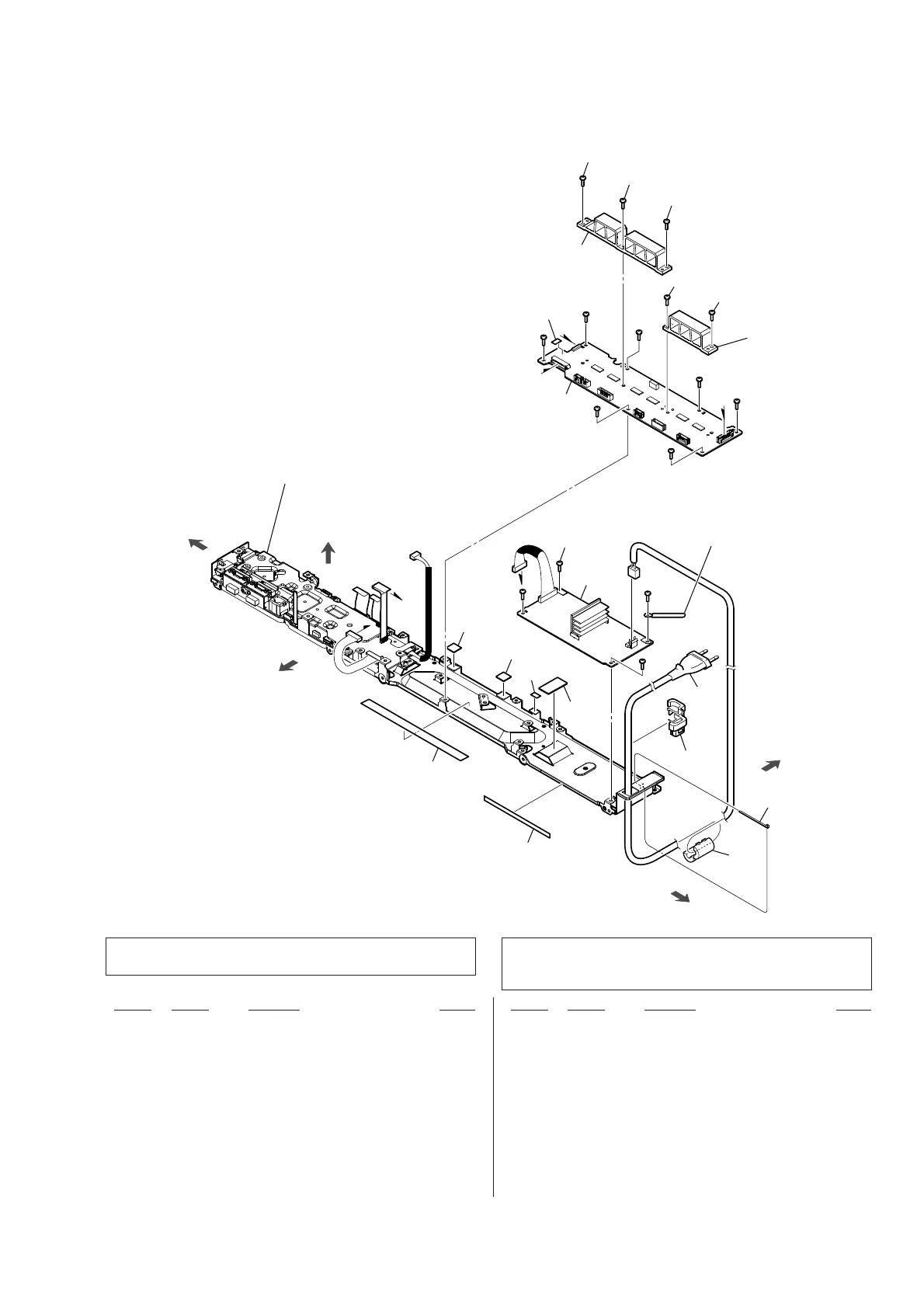

6-4. AMP BOARD SECTION
not supplied
not supplied
not supplied
M
M
K
K
L
L
rear side
top side
bottom side
left side
right side
MB-1611 board section
#2
151
#2
#2
#2
#2
#2
#2
#2
#2
#2
AC1
FC1
152
153
153
154
154
155
156
157
158
159
160
160
160
160
160
161
Note 1: When the complete AMP board (Ref. No. 157) is replaced,
refer to “SPREADING OF COMPOUND” on page 8.
151 4-691-336-31 SHEET, RADIATION (6.0X80.0X2.0 mm)
152 4-691-336-41 SHEET, RADIATION (12.0X160.0X2.0 mm)
153 4-691-336-01 SHEET, RADIATION (13.0X13.0X2.0 mm)
154 4-562-041-21 SHEET, RADIATION (10.0X6.0X1.0 mm)
155 4-691-336-51 SHEET, RADIATION (16.0X30.0X4.0 mm)
156 A-2167-168-A BAR POWER BOARD, COMPLETE (US, CND)
(See Note 2)
156 A-2167-292-A BAR POWER BOARD, COMPLETE (AEP, UK)
(See Note 2)
157 A-2167-159-A AMP BOARD, COMPLETE (See Note 1)
0 158 4-966-267-12 BUSHING (FBS001), CORD
159 3-655-653-11 BAND (TAITON), BINDING
160 3-905-609-13 SCREW (TRANSISTOR)
161 4-974-510-11 SCREW (+BV 3X8 CU)
0 AC1 1-834-965-23 CORD, POWER (US, CND)
0 AC1 1-834-966-22 CORD, POWER (AEP)
0 AC1 1-839-999-12 POWER-SUPPLY CORD (UK)
FC1 1-500-386-11 FILTER, CLAMP (FERRITE CORE) (US, CND)
FC1 1-543-798-11 FILTER, CLAMP (FERRITE CORE) (AEP, UK)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note 2: When the complete BAR POWER board (Ref. No. 156) is
replaced, refer to “BOND FIXED POSITION OF ELECTRI-
CAL PARTS” on page 9.
