Sony HT-ST5000 Service Manual

HT-ST5000
28

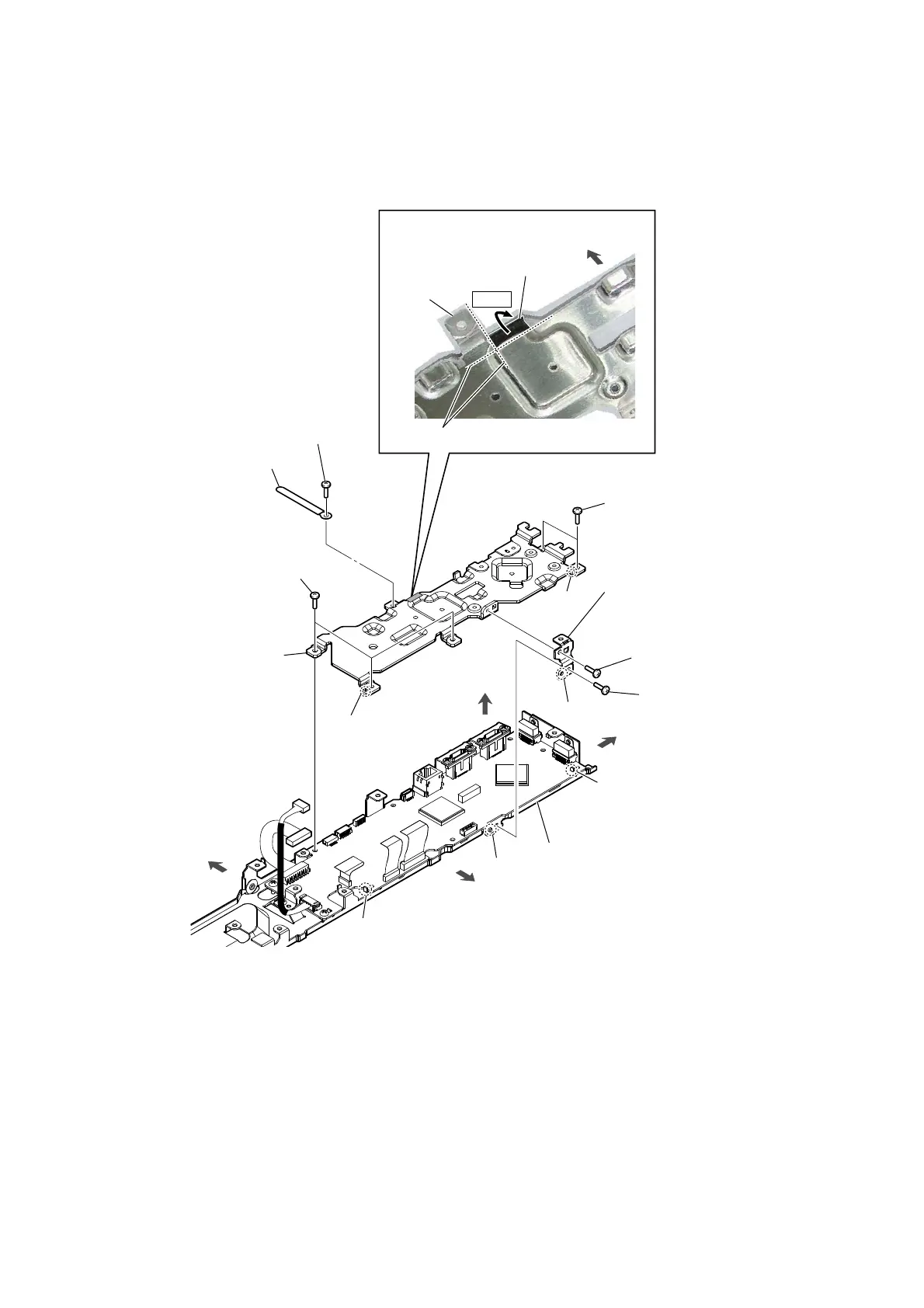

2-19. MB-1611 BOARD-1
• Continued on 2-20 (page 29).
3DVWLQJSRVLWLRQRIWKHFXVKLRQ7
3 two screws
(BVTP3 u 8)
3 three screws
(BVTP3 u 8)
4 screw
(BVTP3 u 10)
1 screw
(BV3)
1 screw
(BV3)
5 wire holder
top side
bottom side
bottom side
rear side
right side
hole
hole
rib
rib
6 shield
(MB) block
Note 1:
When installing the shield (MB)
block, align the two ribs and
two holes.
guide line
cushion (T03)
shield (MB)
block
chassis block
Bend.
boss
hole
2 bracket
(
DSP chassis
)
Note 2:
When installing the bracket
(DSP chassis), align the hole
and boss.
