Sony HT-ST5000 Service Manual

HT-ST5000
39

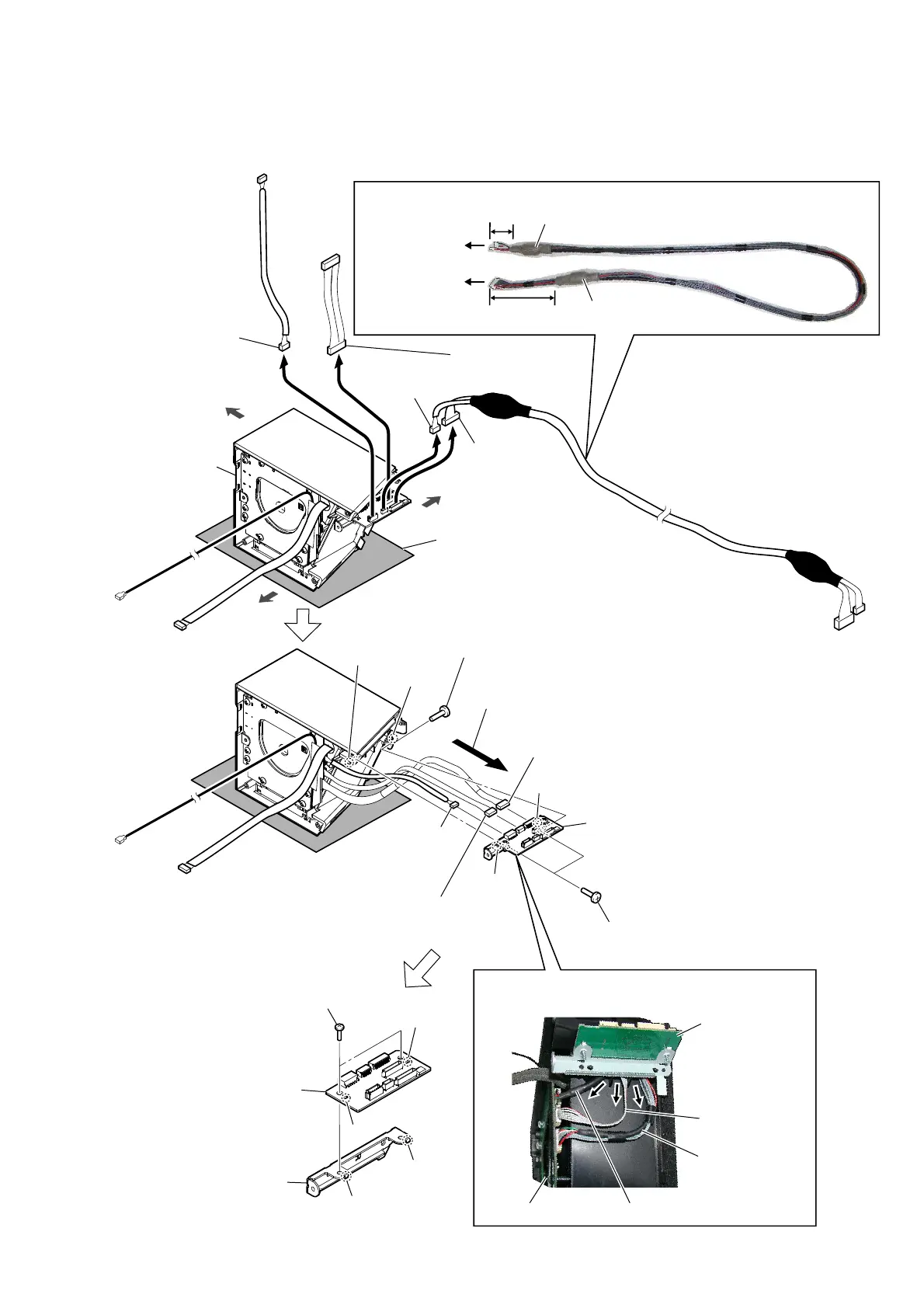

2-30. CHUKEI-WIRE BOARD
Note 4:
Lay a soft piece of cloth
under the unit to avoid
damaging the grille assy.
enable (R-ch) block
1 connector
(CN2302)
3 connector
(CN2303)
2 connector
(CN2308)
4 connector
(CN2309)
long
to CHUKEI-WIRE
board
5 screw
(BV/ring)
6 two screws
(BVTP3 u 8)
boss
hole
hole
boss
qa CHUKEI-WIRE board block
Note 1:
When installing the CHUKEI-WIRE board
block, align the two holes and two bosses.
qs two screws
(BVTP3 u 8)
7
Remove the
CHUKEI-WIRE board
block in the direction of the arrow.
0 USB-CHUKEI
board cable
connector
(CN2305)
9 USB-CHUKEI board cable
connector (CN2304)
8 USB-CHUKEI board cable
connector (CN2306)
qd bracket
(connector R)
hole
rib
rib
qf CHUKEI-WIRE board
Note 2:
When installing the
CHUKEI-WIRE board,
align the two holes and
two ribs.
hole
USB-CHUKEI board
CHUKEI-WIRE
board block
short
ferrite core
ferrite core
,QVWDOODWLRQGLUHFWLRQIRUWKH&+8.(,:,5(ERDUGFDEOH
top side
right side
bottom side
1RWHDERXWLQVWDOOLQJWKH&+8.(,:,5(ERDUGEORFN
USB-CHUKEI board cable (11P)
Note 3:
Draw out the three cables before installation.
USB-CHUKEI
board cable (6P)
USB-CHUKEI
board cable (5P)
to DSP board

Sony HT-ST5000 Specifications

General

Audio decoders	Dolby Atmos, Dolby Digital, Dolby Dual Mono
RMS rated power	- W
Audio output channels	7.1.2 channels
Soundbar speaker RMS power	90 W
Subwoofer included	Yes
Subwoofer connectivity	Wireless
Receiver included	-
Product color	Black
Bluetooth profiles	A2DP, AVRCP
HDMI in	3
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Power consumption (standby)	0.5 W
Power consumption (typical)	7 W

Weight and Dimensions

Depth	145 mm
Width	1180 mm
Height	80 mm
Soundbar weight	8200 g
Subwoofer depth	426 mm
Subwoofer width	248 mm
Subwoofer height	403 mm
Subwoofer weight	14100 g
