Sony HT-ST5000 Service Manual

105
HT-ST5000

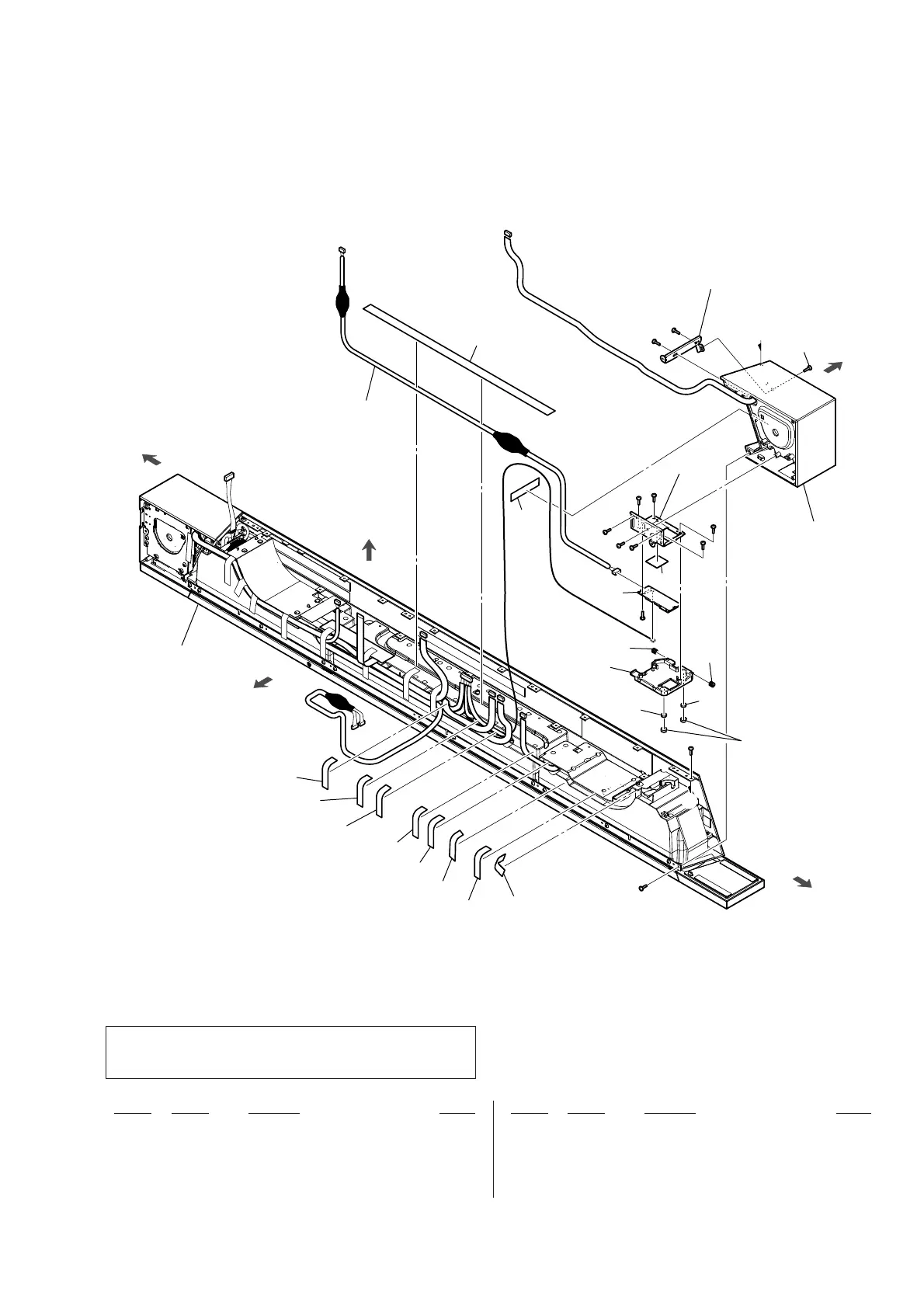

6-6. WLAN/BT COMBO CARD SECTION
not supplied
not supplied
not supplied
not supplied
P
P
#6
251
#6
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
front panel section
WIFI1
251
252
253
253
254
255
256
257
enable (L-ch) section
rear side
top side
bottom side
left side
right side
256
256
256
256
256
256
256
256
Note: When the WLAN/BT combo card (Ref. No. WIFI1) is replaced,
refer to “NOTE OF REPLACING THE MB-1611 BOARD OR
WLAN/BT COMBO CARD” on page 5.
251 4-686-814-01 CUSHION (MAGNET S)
252 4-598-536-01 HOLDER (WIRELESS L)
253 4-686-804-01 BUSHING (ENABLE)
254 4-686-810-01 SHEET (THERMAL WIFI)
255 4-691-717-01 CUSHION (WIRE WIFI)
* 256 3-378-109-01 CUSHION, SARANET
257 3-704-515-22 SCREW (BV/RING)
WIFI1 1-493-092-11 CARD, WLAN/BT COMBO (See Note)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#6 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

Sony HT-ST5000 Specifications

General

Audio decoders	Dolby Atmos, Dolby Digital, Dolby Dual Mono
RMS rated power	- W
Audio output channels	7.1.2 channels
Soundbar speaker RMS power	90 W
Subwoofer included	Yes
Subwoofer connectivity	Wireless
Receiver included	-
Product color	Black
Bluetooth profiles	A2DP, AVRCP
HDMI in	3
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Power consumption (standby)	0.5 W
Power consumption (typical)	7 W

Weight and Dimensions

Depth	145 mm
Width	1180 mm
Height	80 mm
Soundbar weight	8200 g
Subwoofer depth	426 mm
Subwoofer width	248 mm
Subwoofer height	403 mm
Subwoofer weight	14100 g
