Sony HT-ST5000 Service Manual

HT-ST5000
24

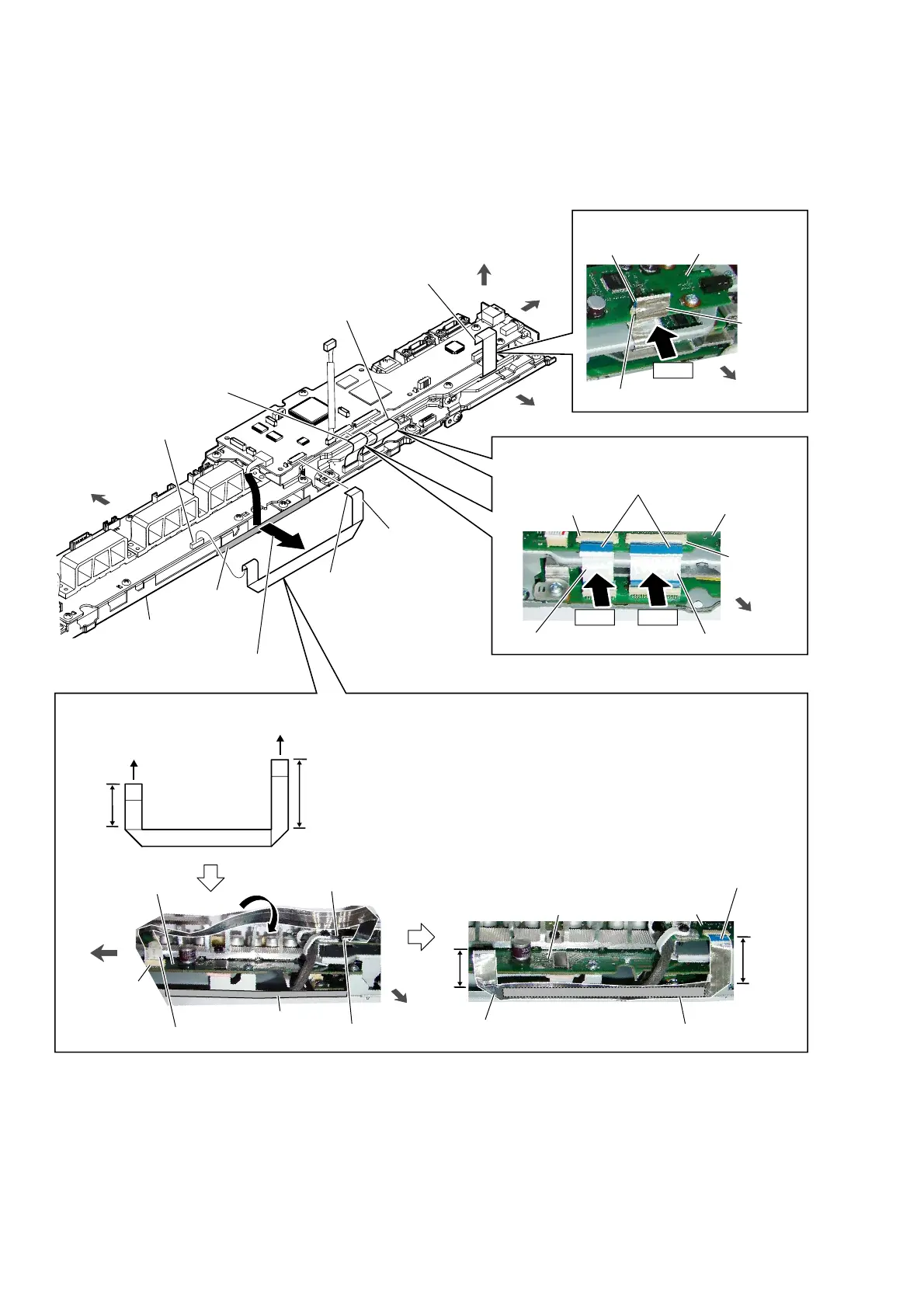

2-15. DSP BOARD-2
• Continued on 2-16 (page 25).
left side
double side tape
FFC 20P
DSP board
AMP board
AMP board
DSP board
to AMP board
to DSP board
short
long
short
long
DSP board
DSP board
double side tape
CN7006
1 FFC 30P
(CN2401)
2 FFC 40P
(CN2402)
3 FFC 24P
(CN2403)
5 FFC 20P
(CN1104)
right side
bottom side
top side
top side
rear side
6 connector
(CN7006)
4 Peel the FFC 20P off of the
double side tape.
The opposite side
is terminal side.
terminal side
CN2403
CN2402
terminal side
CN2401
double
side tape
+RZWRLQVWDOOWKH))&3
Push.
FFC 30P
Push. Push.
top side
top side
CN1104
terminal side
The opposite side
is terminal side.
chassis block
))&3VHWWLQJ
))&3DQG))&3VHWWLQJ
FFC 24P
FFC 40P

Sony HT-ST5000 Specifications

General

Audio decoders	Dolby Atmos, Dolby Digital, Dolby Dual Mono
RMS rated power	- W
Audio output channels	7.1.2 channels
Soundbar speaker RMS power	90 W
Subwoofer included	Yes
Subwoofer connectivity	Wireless
Receiver included	-
Product color	Black
Bluetooth profiles	A2DP, AVRCP
HDMI in	3
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Power consumption (standby)	0.5 W
Power consumption (typical)	7 W

Weight and Dimensions

Depth	145 mm
Width	1180 mm
Height	80 mm
Soundbar weight	8200 g
Subwoofer depth	426 mm
Subwoofer width	248 mm
Subwoofer height	403 mm
Subwoofer weight	14100 g
