HT-ST5000
23

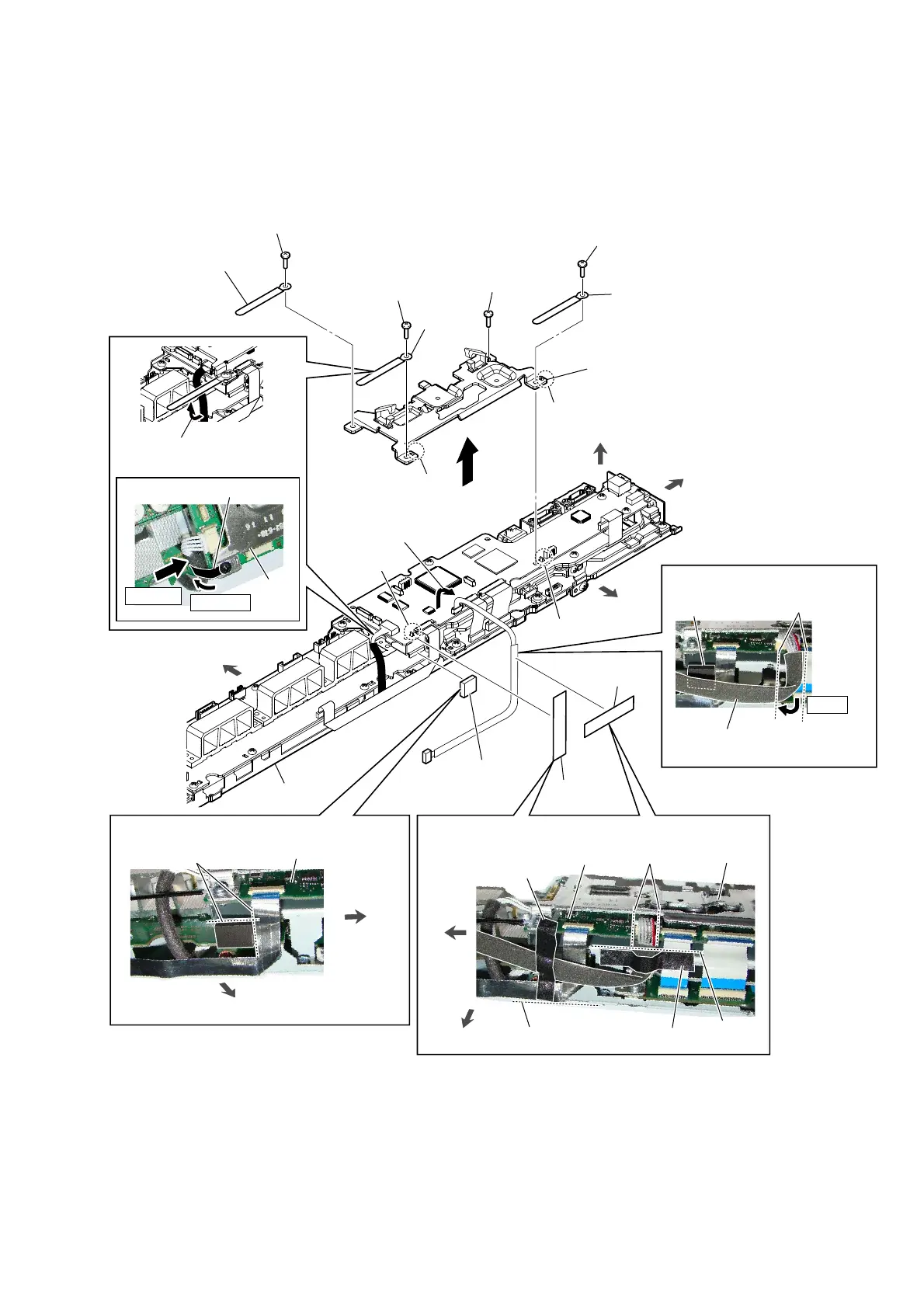

2-14. DSP BOARD-1
Continued on 2-15 (page 24).
:LUHVHWWLQJ
3DVWLQJSRVLWLRQRIWKHVDUDQHWFXVKLRQ
top side
left side
guide line
guide line
straight condition
cushion
(key wire)
guide line
saranet cushion
saranet cushion
DSP board
shield
(DSP)
block
3 cushion
(key wire)
right side
bottom side
top side
rear side
4 screw
(BVTP3 u 8)
4 screw
(BVTP3 u 8)
4 screw
(BVTP3 u 8)
4 screw
(BVTP3 u 8)
5 wiring stopper
2 saranet
cushion
3DVWLQJSRVLWLRQRIWKHFXVKLRQNH\ZLUH
guide line
right side
top side
DSP board
2 saranet
cushion
5 wiring stopper
5 wiring
stopper
7 shield (DSP) block
Note 1:
When installing the shield (DSP) block,
align the two bosses and two holes.
hole
hole
boss
boss
6
Move the KEY board
cable to the top side.
chassis block
Bend.
Note 2:
Pass the wire over
the cushion (key wire).
:LUHVHWWLQJ
shield
(DSP)
wiring stopper
2 Push.
1 Bend.
1 Remove the wire from
the wiring stopper.
