Sony HT-ST5000 Service Manual

HT-ST5000
14

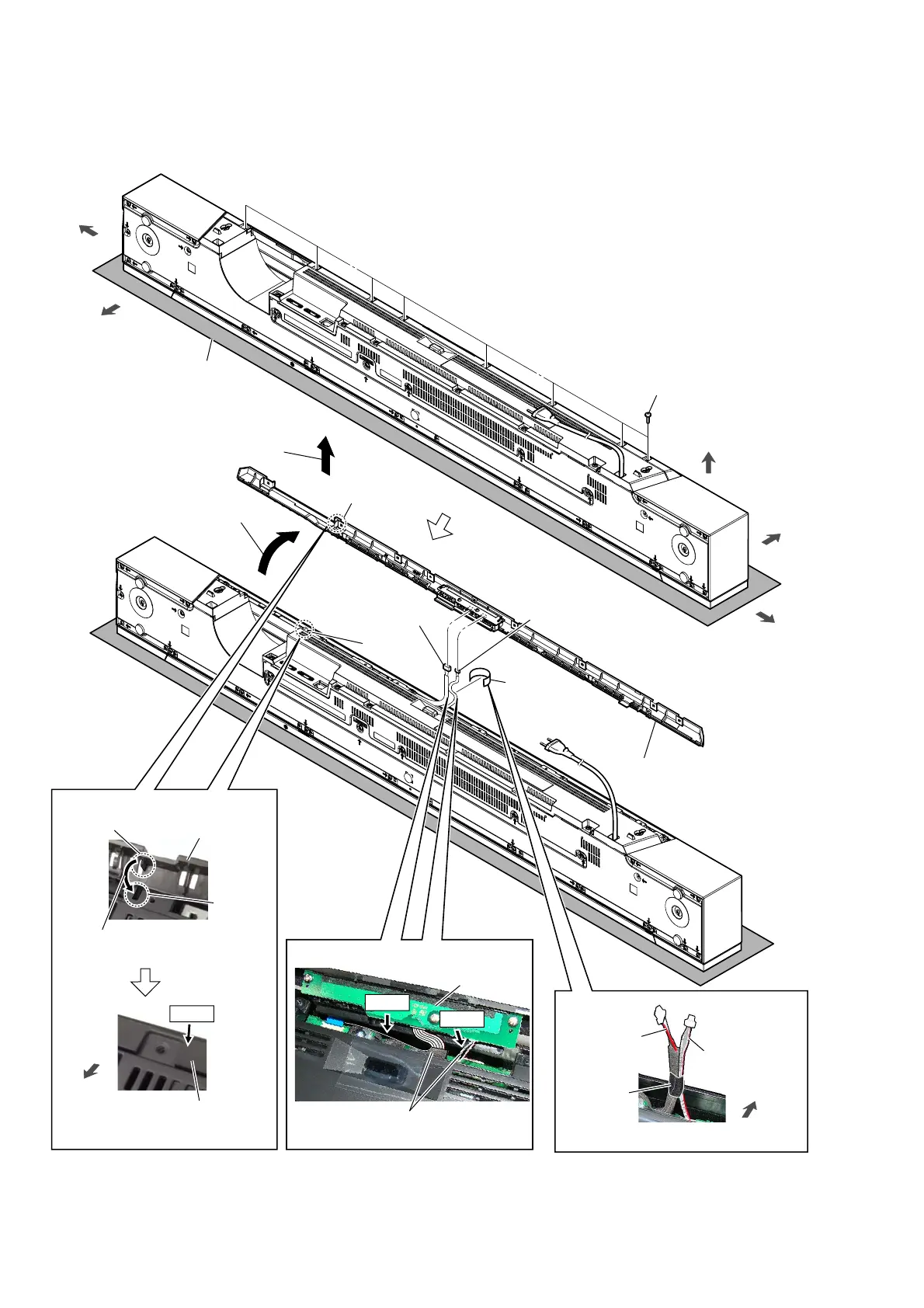

2-3. REAR COVER BLOCK
2
Open the rear cover block
in the direction of the arrow.
5 DSP board cable
connector (CN1901)
6 IR-REPEATER1 board
cable connector (CN1902)
1 eight flat head screws
top side
:LUHVHWWLQJ
right side
left side
bottom side
rear cover block
hole
rib
Note 1:
Lay a soft piece of cloth
under the unit to avoid
damaging the grille assy.
Lean the rear cover block
in the direction of the arrow.
3
Lift up the rear cover block
in the direction of the arrow.
rear side
+RZWRLQVWDOOWKHUHDUFRYHUEORFN
hole
rib
7
rear cover block
Note 3:
When installing the rear
cover block, align the rib
and hole.
Push.
rear cover block
–5HDUYLHZ–
bottom
side
4 cushion
(CZ2-A)
:LUHVHWWLQJ
cushion
(CZ2-A)
IR-REPEATER1
board cable
DSP board
cable
–5HDUYLHZ–
top side
KEY board
Note 2:
When installing the rear cover block,
push the two cables into the unit.
Push.
Push.

Sony HT-ST5000 Specifications

General

Audio decoders	Dolby Atmos, Dolby Digital, Dolby Dual Mono
RMS rated power	- W
Audio output channels	7.1.2 channels
Soundbar speaker RMS power	90 W
Subwoofer included	Yes
Subwoofer connectivity	Wireless
Receiver included	-
Product color	Black
Bluetooth profiles	A2DP, AVRCP
HDMI in	3
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Power consumption (standby)	0.5 W
Power consumption (typical)	7 W

Weight and Dimensions

Depth	145 mm
Width	1180 mm
Height	80 mm
Soundbar weight	8200 g
Subwoofer depth	426 mm
Subwoofer width	248 mm
Subwoofer height	403 mm
Subwoofer weight	14100 g
