Sony HT-ST5000 Service Manual

HT-ST5000
44

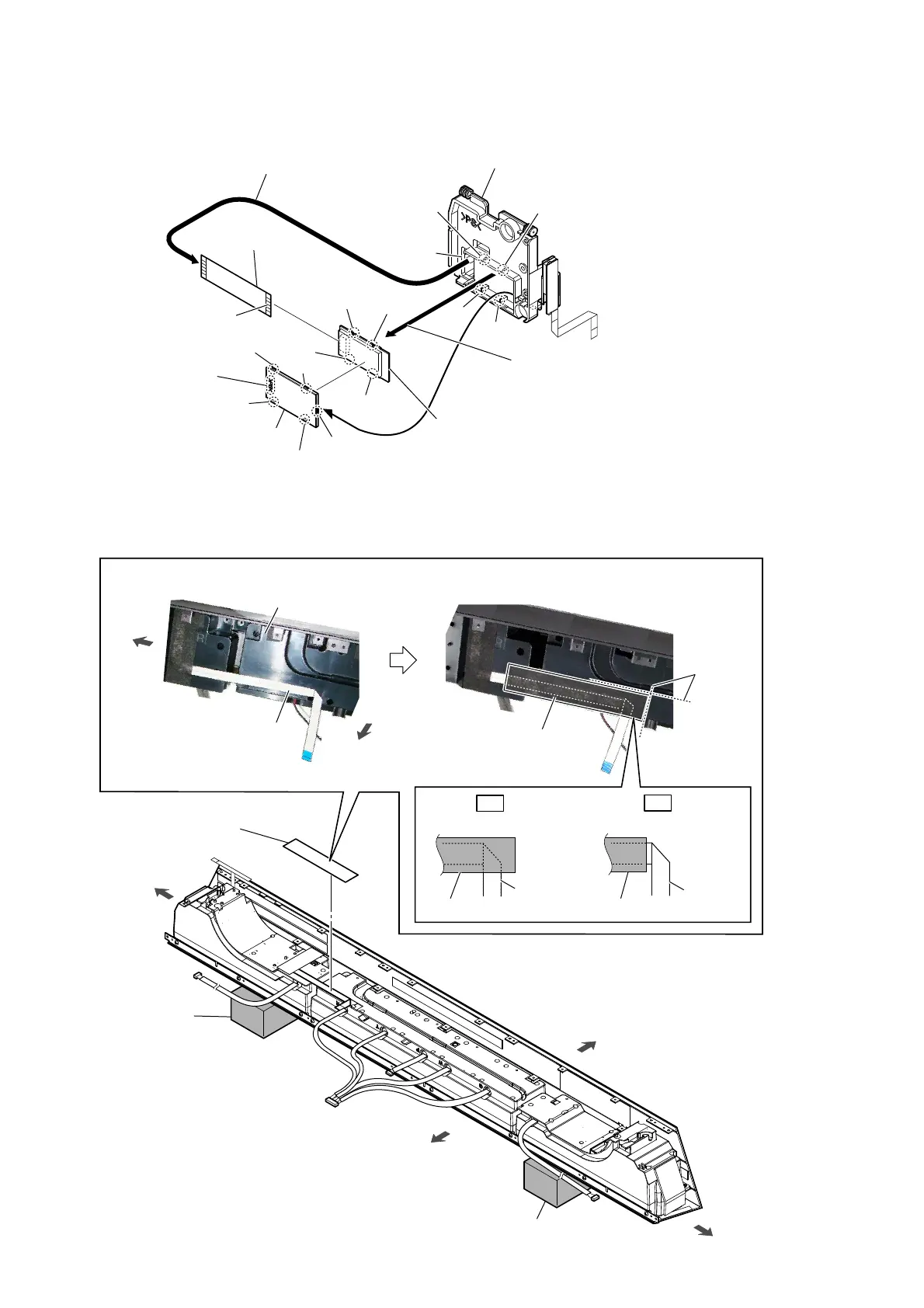

2-36. RF MODULATOR
2-37. CUSHION (FFC DISP)
5 FFC 26P
2 housing (top) assy
terminal side
groove
groove
groove
“>PS<” mark
groove
rib
rib
rib
rib
1 claw
1 claw
1 claw
1 claw
1 claw
hole
holder (wireless R) block
4 Draw the FFC 26P out of the hole
in holder (wireless R).
3 Remove the RF modulator block
in the direction of the arrow.
6 RF modulator
Note:
When installing the RF modulator,
align the four bosses and four ribs.
right side
stand
bottom side
top side
left side
3DVWLQJSRVLWLRQRIWKHFXVKLRQ))&',63
FFC 16P
center speaker block
cushion (FFC DISP)
guide line
1 cushion
(FFC DISP)
Fully covers the FFC. Not fully covers the FFC.
OK
NG
cushion (FFC DISP)
FFC 16P
cushion (FFC DISP)
FFC 16P
bottom side
–5HDUYLHZ–
right side
stand

Sony HT-ST5000 Specifications

General

Audio decoders	Dolby Atmos, Dolby Digital, Dolby Dual Mono
RMS rated power	- W
Audio output channels	7.1.2 channels
Soundbar speaker RMS power	90 W
Subwoofer included	Yes
Subwoofer connectivity	Wireless
Receiver included	-
Product color	Black
Bluetooth profiles	A2DP, AVRCP
HDMI in	3
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Power consumption (standby)	0.5 W
Power consumption (typical)	7 W

Weight and Dimensions

Depth	145 mm
Width	1180 mm
Height	80 mm
Soundbar weight	8200 g
Subwoofer depth	426 mm
Subwoofer width	248 mm
Subwoofer height	403 mm
Subwoofer weight	14100 g
