2-2

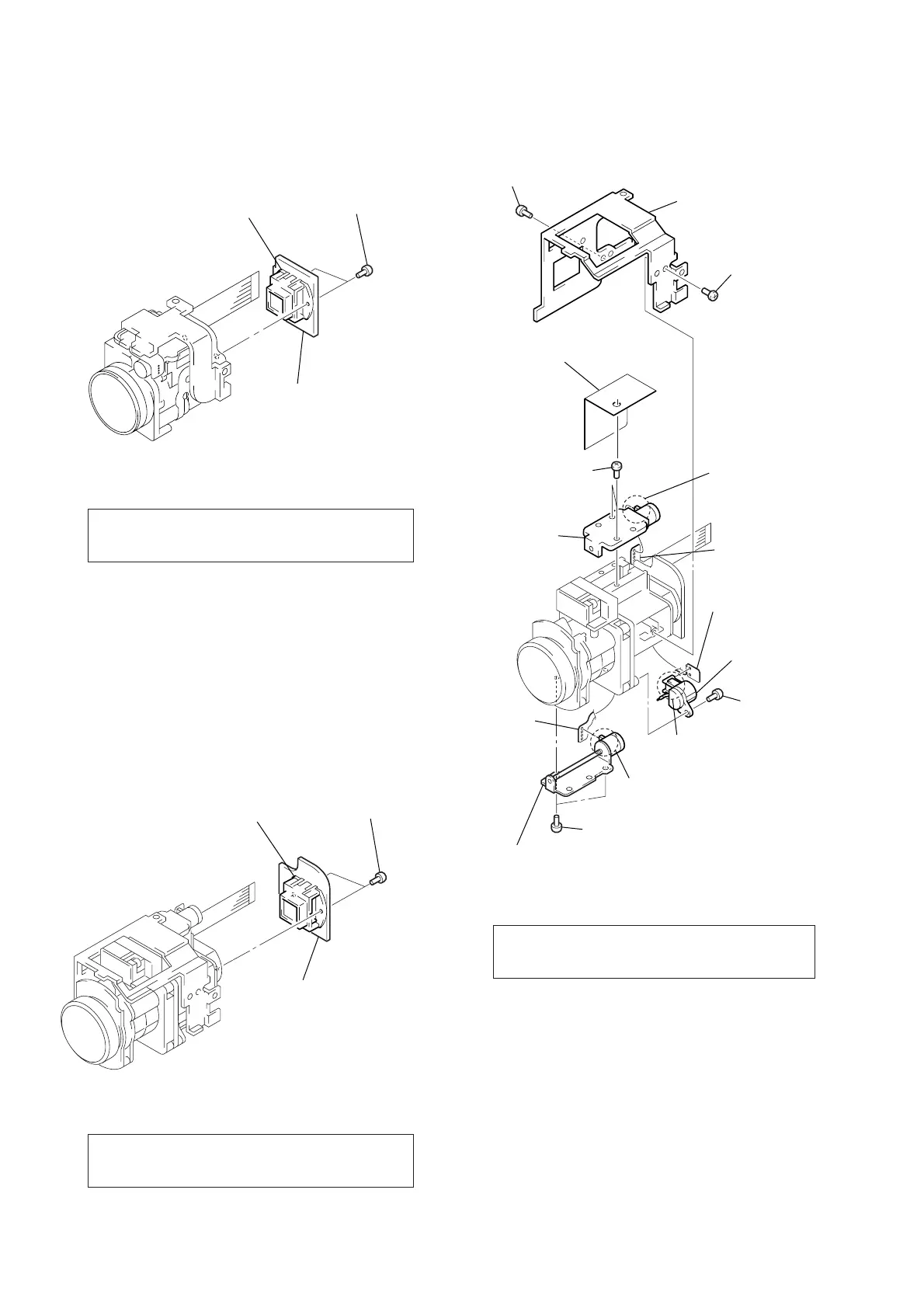

2-5. MOTOR UNITS (FD88)2-3. CD-229 BOARD (FD83)
2-4. CD-228 BOARD (FD88)
(Note) Flexible board of video lens is not supplied.
Please be careful not to break the flexible board
when you change the motor unit.
(Note) Be sure to read “Precautions for Replacement of
CCD Imager” on page 4-8 when changing the
CCD imager.
(Note) Be sure to read “Precautions for Replacement of
CCD Imager” on page 4-6 when changing the
CCD imager.
CCD imager
(Note)
2 CD-229 board
1 Two screws
3 Holder (lens)
5 Break solders
of motor. (Note)
6 Flexible board
!¢ Flexible board
!§ ND meter
!£ Break solders
of motor. (Note)
9 Break solders
of motor. (Note)
!™ Zoom stepping
motor
0 Flexible
board
8 Focus stepping
motor
1 Screw
7 Two screws
2 Screw
!∞ Screw
!¡ Two screws
4 Sheet (190), lens
CD-228
2 CD-228 board
CCD imager
(Note)
1 Two screws
(B1.7 × 6)
To Next Page
