Sony MVC-FD83 - Lens Block Section (FD88)

6-4

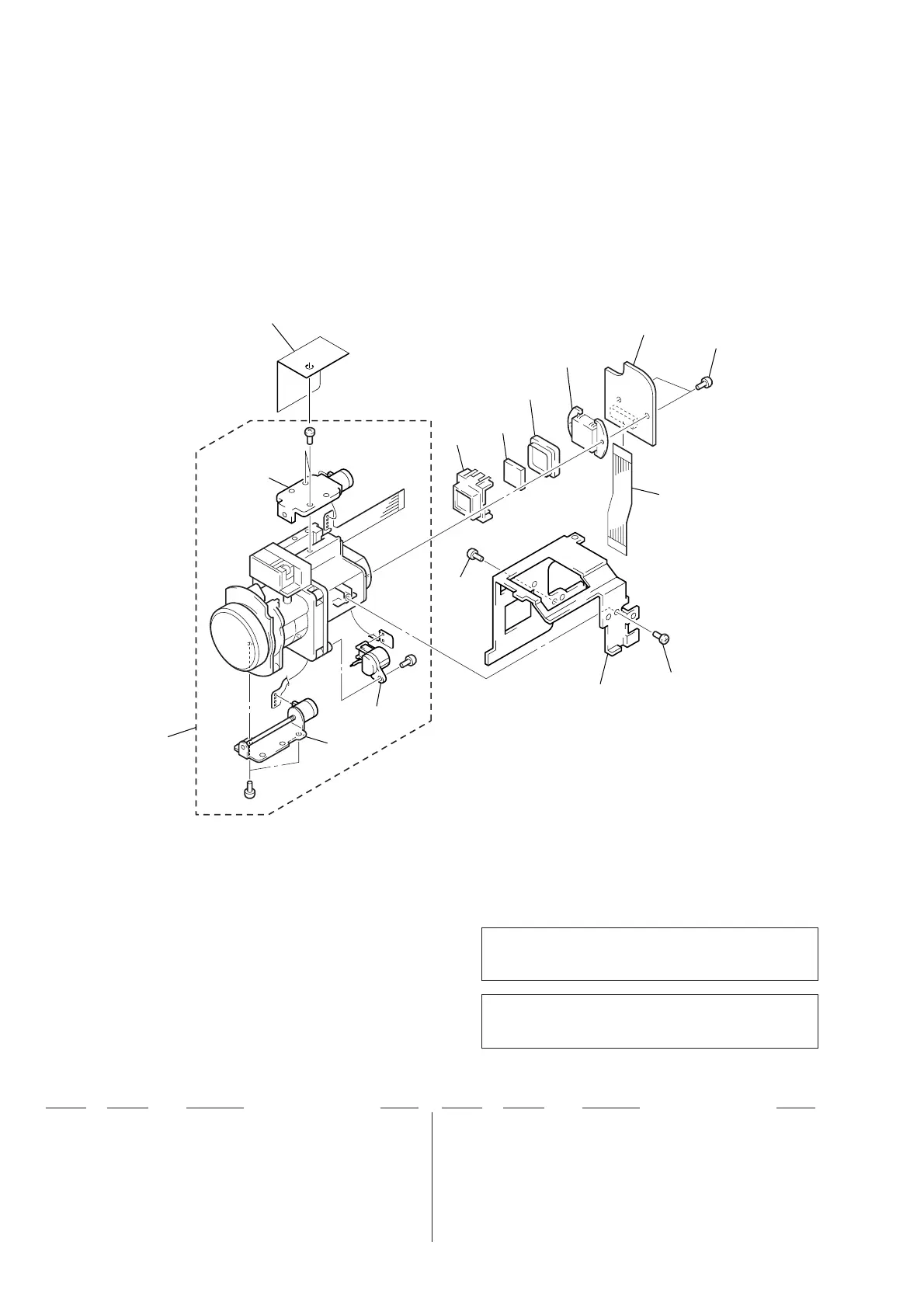

6-1-4. LENS BLOCK SECTION (FD88)
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
151 1-758-323-11 LENS, VIDEO (VCL-4708VA)
* 152 3-055-924-01 HOLDER (LENS)
153 3-948-339-61 TAPPING
154 3-963-467-11 ADAPTOR (FH), CCD FITTING
155 1-758-322-21 FILTER BLOCK, OPTICAL
156 3-968-054-11 RUBBER (FM), SHIELD
157 A-7074-007-A CD-228 BOARD, COMPLETE
158 3-318-203-11 SCREW (B1.7X6), TAPPING
159 1-674-161-11 FP-115 (CD-FC) FLEXIBLE B0ARD
* 160 3-056-790-01 SHEET (190), LENS
IC201 A-7030-999-A CCD BLOCK ASSY (CCD IMAGER) (Note 1)
M901 3-709-497-01 MOTOR, FOCUS STEPPING (Note 2)
M902 3-709-498-01 MOTOR, ZOOM STEPPING (Note 2)
M903 3-709-499-01 METER, ND (Note 2)
CD-228
board
151
152
153
153
154
155
156
157
158
159
160
IC201
(Note 1)
M901
M903
M902
(Note 2) Flexible board of video lens is not supplied.
Please be careful not to break the flexible board
when you change the motor unit.
(Note 1) Be sure to read “Precautions for Replacement of
CCD Imager” on page 4-6 when changing the
CCD imager.
