Sony MVC-FD83 - CAMERA SIGNAL PROCESS) Schematic Diagram

MVC-FD83/FD88
4-14 4-15
CAMERA SIGNAL PROCESS
FC-70 (1/10)
4-16

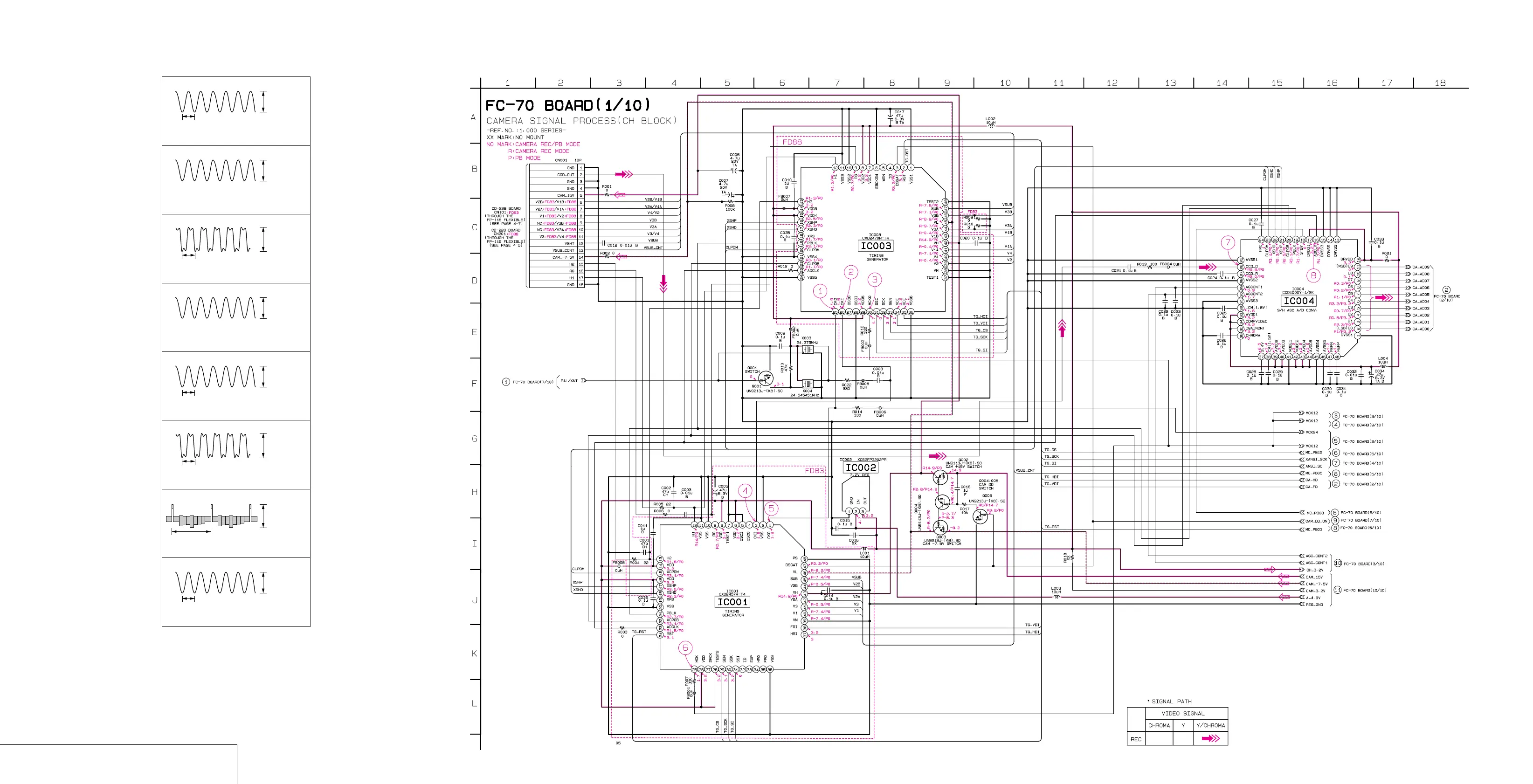

FC-70 (CAMERA SIGNAL PROCESS) SCHEMATIC DIAGRAM • See page 4-9 for FC-70 printed wiring board.
FC-70 BOARD (1/10)
4.8 Vp-p
4.0 Vp-p
4.0 Vp-p
4.0 Vp-p
4.8 Vp-p
24.545451 MHz: NTSC
24.375 MHz: PAL
41 nsec
83 nsec
24.545451 MHz: NTSC
24.375 MHz: PAL
41 nsec
1
2
3
4
5
IC003 @∞ REC/PB
IC003 @§ REC/PB
IC003 #º REC/PB
IC001 3 REC/PB
IC001 1 REC/PB
4.0 Vp-p
1.2 Vp-p
4.4 Vp-p
83 nsec
125 µsec
83 nsec
6
7
8
IC001 @∞ REC/PB
IC004 @§ REC
IC004 !§ REC
