Sony MVC-FD83 - Repair Parts List; Exploded Views; Cabinet (Front) Section

6-1
NOTE:
• -XX and -X mean standardized parts, so they may
have some difference from the original one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Accessories are given in the last of the electrical
parts list.
SECTION 6
REPAIR PARTS LIST
6-1. EXPLODED VIEWS
MVC-FD83/FD88
The components identified by mark
! or dotted line with mark ! are criti-
cal for safety.
Replace only with part number speci-
fied.
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
14 3-969-380-01 SPRING, BATTERY
! 15 1-517-893-11 FLASH UNIT
* 16 3-056-046-01 INSULATING SHEET (ST)
* 17 3-055-928-01 HOLDER (RELEASE)
18 A-7074-008-A RL-56 BOARD, COMPLETE (FD88)
18 A-7074-014-A RL-54 BOARD, COMPLETE (FD83)
19 1-790-874-11 CABLE, FLEXIBLE FLAT (FFC-281)
20 A-7074-009-A FU-137 BOARD, COMPLETE (FD88)
20 A-7074-015-A FU-135 BOARD, COMPLETE (FD83)
21 1-694-554-11 TERMINAL BOARD, BATTERY
22 1-959-764-21 HARNESS (FF-199)
23 3-055-926-01 SHEET METAL (L), STRAP
24 3-713-791-31 SCREW (M1.7X6), TAPPING, P2
25 A-7074-042-A FC-70 BOARD, COMPLETE (SERVICE) (FD88)
25 A-7074-043-A FC-70 BOARD, COMPLETE (SERVICE) (FD83)
26 1-418-425-11 MF BLOCK
MIC901 1-542-312-11 MICROPHONE
1 X-3949-798-1 MF RING (88) ASSY (FD88)
1 X-3949-799-1 MF RING (83) ASSY (FD83)
2 X-3949-713-1 COVER (LENS) ASSY (FD88)
2 X-3949-718-1 LENS ASSY, COVER (FD83)
3 3-948-339-61 TAPPING
4 3-055-930-01 PLATE (T), TRANSPARENT
5 3-055-929-01 PLATE (S), TRANSPARENT
* 6 3-055-971-01 CUSHION, MICROPHONE
7 X-3949-714-1 GRILLE ASSY, MICROPHONE (FD88)
7 X-3949-732-1 GRILLE ASSY, MICROPHONE (FD83)
8 3-056-233-01 ACE (M2), 0 PLATE +P2 MAIN LOCK
9 X-3949-712-1 CABINET (FRONT) ASSY (FD88)
9 X-3949-717-1 CABINET (FRONT) ASSY (FD83)
10 X-3949-800-1 LID ASSY, BATTERY
11 3-050-468-01 SCREW, TRIPOD
* 12 3-977-653-01 SPRING, COMPRESSION
13 3-052-574-01 CLAW, BT LOCK

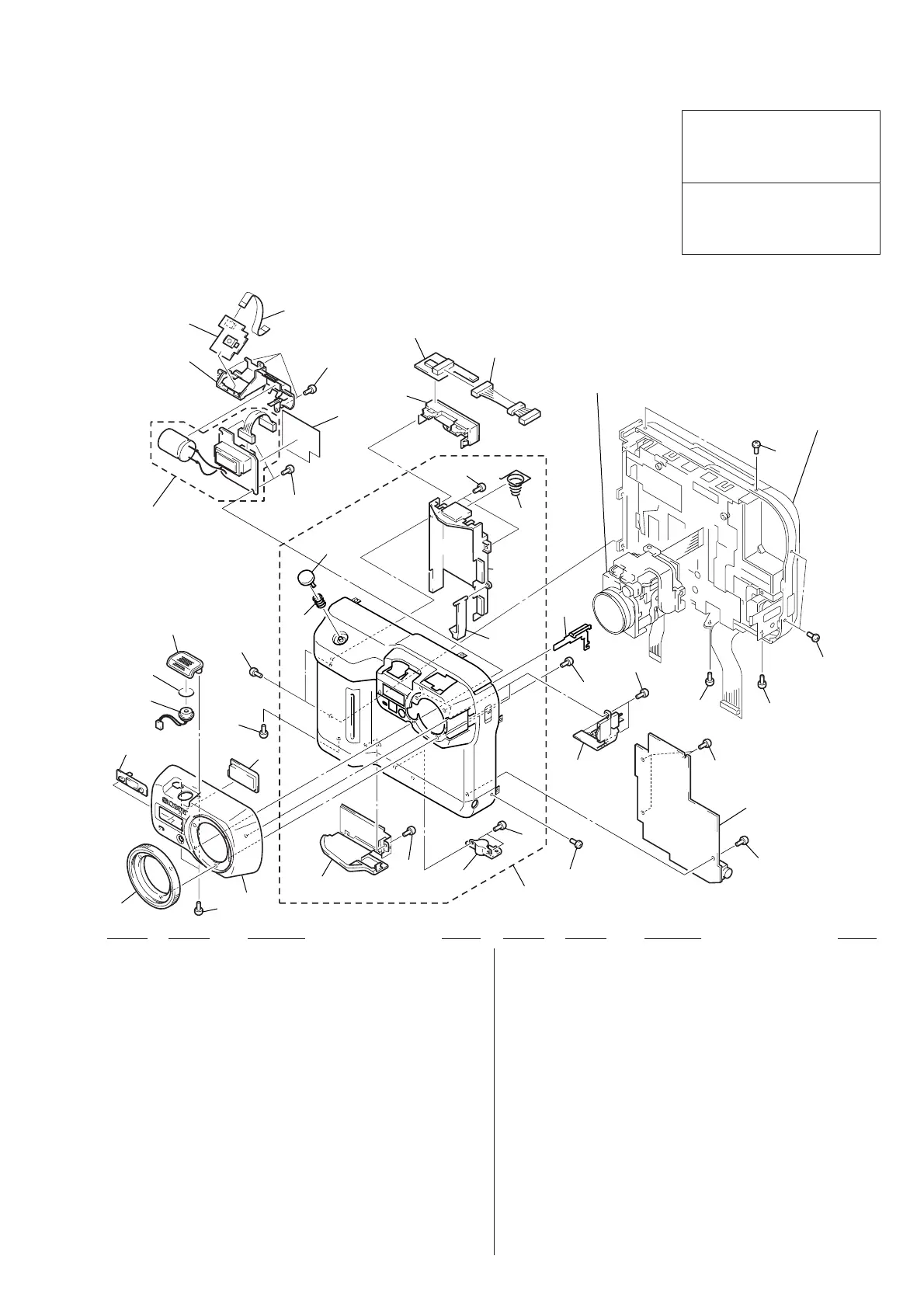

6-1-1. CABINET (FRONT) SECTION
FC-70 board
18
17
19
3
16
21
20
22
8
8
8
8
3
8
9
3
11
3
10
3
2
1
4
5
8
8
7
6
25
3
23
13
14
3
12
24
3
26
3
15
not
supplied
not
supplied
MIC901
Lens block section
(See page 6-3 (FD83), 6-4 (FD88).)
Cabinet (rear) section
(See page 6-2.)
