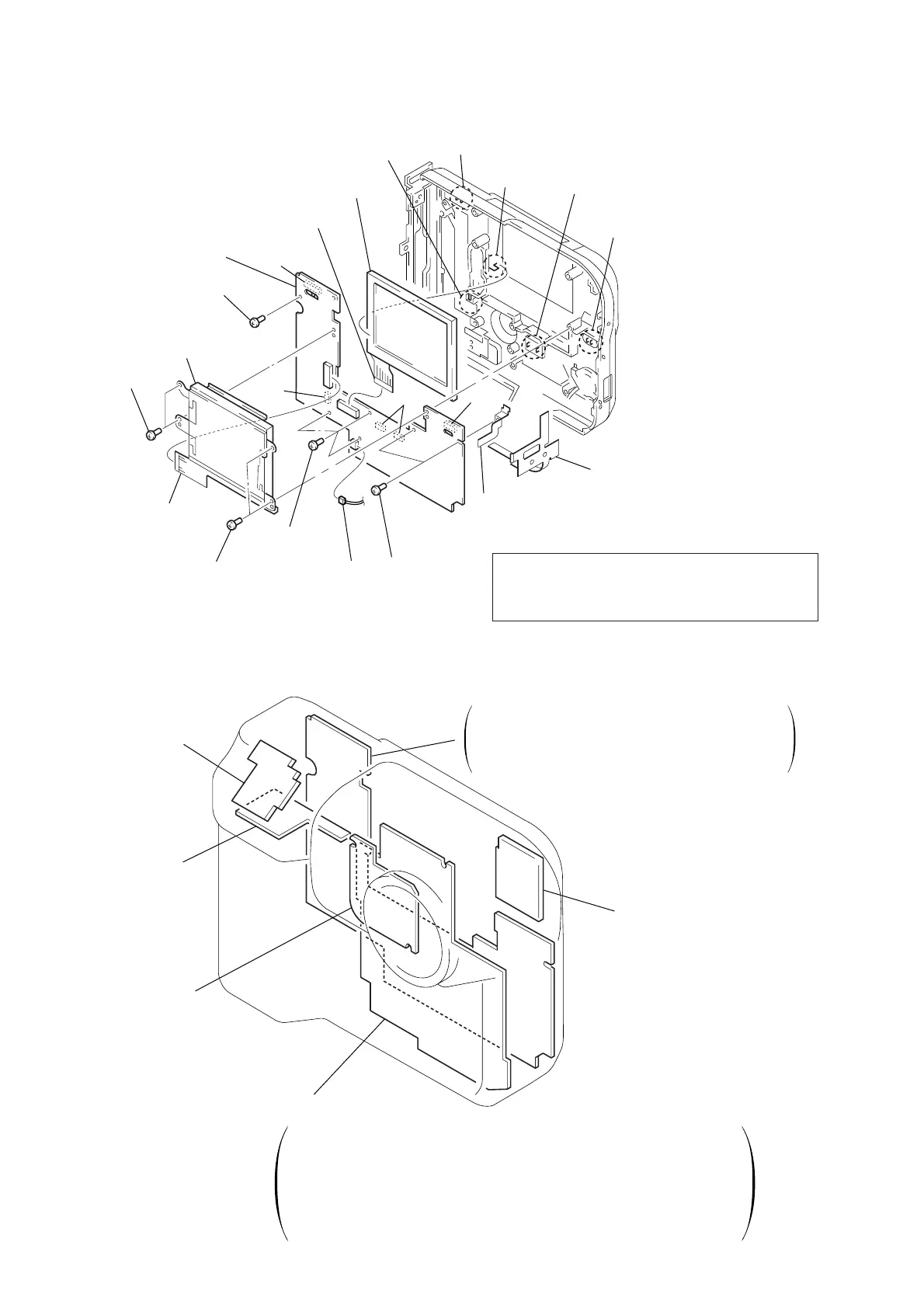

2-10. PK-47/48 BOARD, LIQUID CRYSTAL INDICATION
2-11. CIRCUIT BOARDS LOCATION
PK-47/48
board
0 PK-47 board (FD83)
PK-48 board (FD88)
RV701
5 Flexible board
(CN901)
!¢ Liquid crystal
indication
Zoom knob
Power switch
!£ Claw
LCD back light switch
Play/still/movie switch
!™ Cabinet fixed plate
!¡ Ground plate
S713
S706, 710
S702
7 Two screws
1 Flexible board
(CN851)
6 Connector
(CN701)
8 Three
screws
3 Two screws
2 Two screws
4 Cold cathode
fluorescent tube
9 Screw
RL-54 (FD83)
RL-56 (FD88)
(RELEASE SWITCH)
PK-47 (FD83)
PK-48 (FD88)
REC/PB AMP, MOTOR DRIVE,
LCD DRIVE, TIMING GENERATOR,
MODE SWITCH, BACK LIGHT DRIVE
FU-135 (FD83)
FU-137 (FD88)
(DC IN)
CD-228 (FD88)
CD-229 (FD83)
(CCD IMAGER)
Flush Unit
FC-70
CAMERA SIGNAL PROCESS, CAMERA DSP,
VIDEO DECODER, LENS MOTOR DRIVE,
AUDIO INTERFACE, MEDIA CONTROL, FD CONTROL,
A/V OUT, AUDIO A/D D/A CONVERTER,
DC/DC CONVERTER
(Note) When installing PK-47/48 board, connect RV701
with zoom knob, S702 with power switch, S706
and S710 with play/still/movie switch and S713
with LCD back light switch.
