Sony MVC-FD83 - Lens Block Section (FD83)

6-3

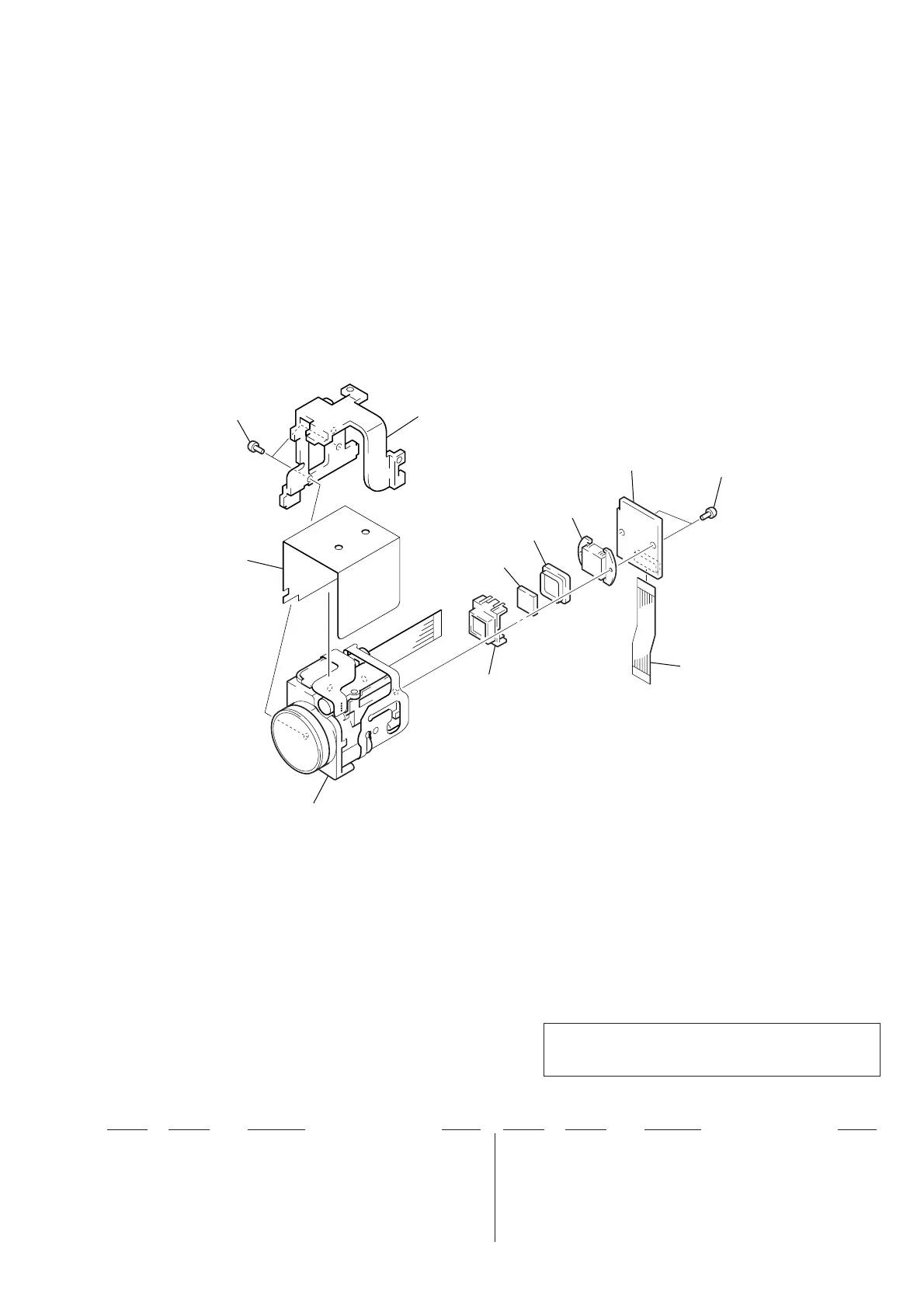

6-1-3. LENS BLOCK SECTION (FD83)
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
101 8-848-735-01 DEVICE, LENS LSV-550C
102 3-948-339-61 TAPPING
* 103 3-055-961-01 HOLDER (LENS)
104 3-957-990-11 ADAPTOR (C), CCD FITTING
105 1-758-217-11 FILTER BLOCK, OPTICAL
106 3-949-283-01 RUBBER (2), SEAL
107 A-7074-013-A CD-229 BOARD, COMPLETE
108 3-947-268-11 TITE (2), +B TAPPING (P)
109 1-674-161-11 FP-115 (CD-FC) FLEXIBLE B0ARD
* 110 3-056-791-01 SHEET (180), LENS
IC101 A-7031-017-A CCD BLOCK ASSY (CCD IMAGER) (Note 1)
CD-229
board
102
103
110
101
104
105
106
109
108
107
IC101
(Note 1)
(Note 1) Be sure to read “Precautions for Replacement of
CCD Imager” on page 4-8 when changing the
CCD imager.
