Sony MVC-FD83 - Cabinet (Rear) Section

6-2

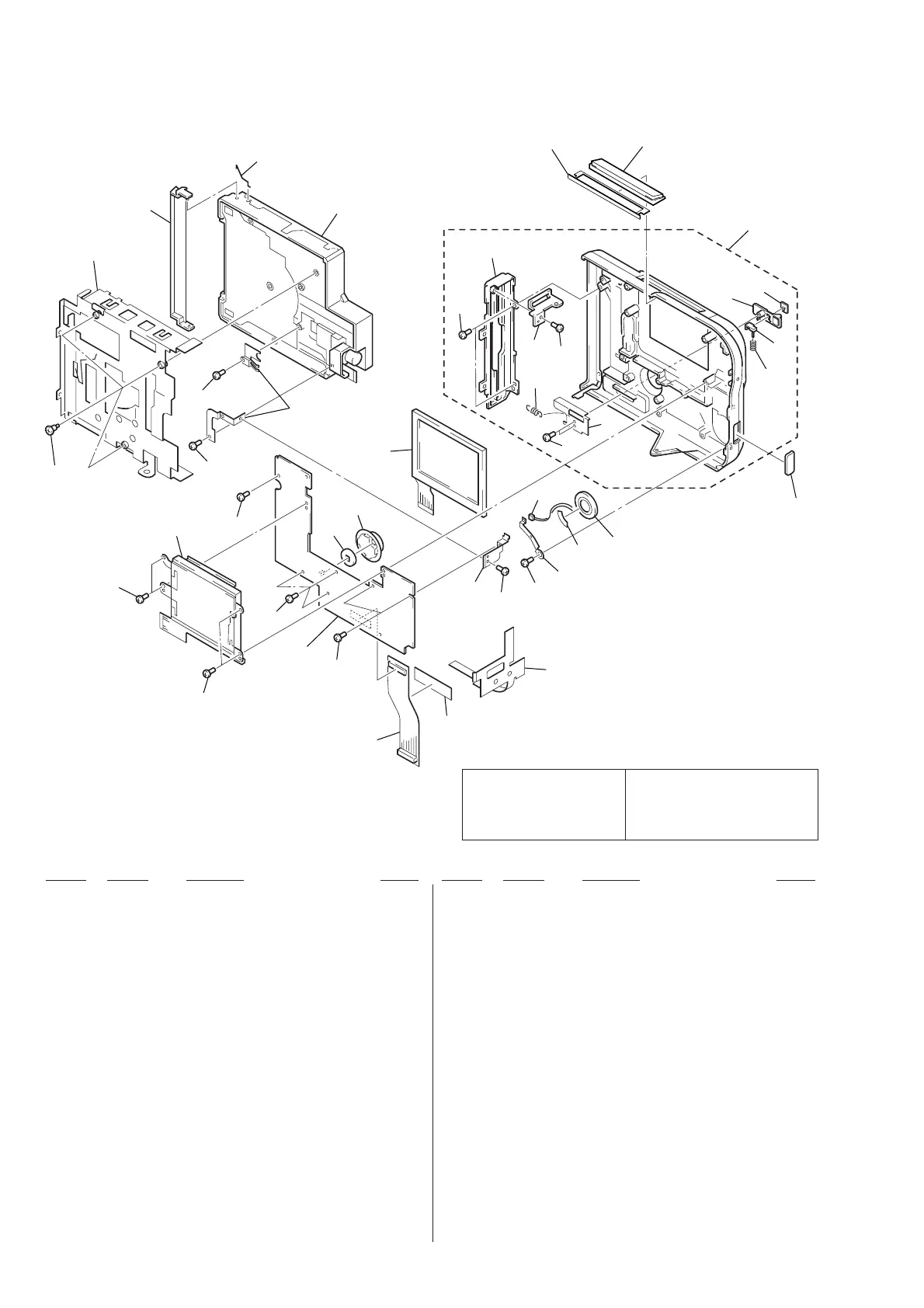

6-1-2. CABINET (REAR) SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
51 1-674-162-21 FP-116 (PK-FC) FLEXIBLE BOARD
52 3-948-339-61 TAPPING
53 A-7074-010-A PK-48 BOARD, COMPLETE (SHARP) (FD88)
53 A-7074-017-A PK-47 BOARD, COMPLETE (CASIO) (FD83)
54 3-978-439-11 BUTTON, CONTROL
* 55 3-979-292-01 SHEET (CONTROL)
56 3-352-483-01 SCREW (M2), STEP
* 57 X-3949-716-1 FRAME ASSY, MAIN
58 3-050-457-01 LID,SIDE
59 3-050-458-01 SPRING (UPPER), SIDE
60 1-772-046-11 DRIVE, FLOPPY DISK (3.5inch)
* 61 3-056-012-01 RETAINER (190), WINDOW
62 3-052-592-01 WINDOW, LCD
63 X-3949-715-1 CABINET (REAR) ASSY
64 3-052-955-01 SHEET METAL, EJECT
65 3-052-537-01 SPRING, EXTENSION
66 3-052-531-01 SHEET METAL (R), STRAP
67 3-713-791-01 SCREW (M1.7X5), TAPPING, P2
68 3-052-530-01 CABINET, SIDE
69 3-055-955-01 KNOB, EJECT
70 3-052-956-01 LOCK, EJECT
71 3-052-957-01 SLIDER, EJECT
72 3-052-958-01 SPRING, COMPRESSION
73 3-055-923-01 COVER, CPC
* 74 3-055-933-01 RETAINER, SPEAKER
75 3-713-786-21 SCREW (M2X3)
76 1-959-765-11 HARNESS (SP-161)
* 77 3-055-934-01 PLATE (FD), GROUND
* 78 3-056-047-01 INSULATED PLATE, SP
* 79 3-056-789-01 SHEET, FP
80 3-056-483-01 SCREW (M1.7), LOCK ACE, P2
LCD901 1-803-357-21 MODULE, CRYSTAL INDICATION (SHARP)
(FD88)
LCD901 1-803-358-21 MODULE, CRYSTAL INDICATION (CASIO)
(FD83)
! ND801 1-517-787-11 TUBE, FLUORESCENT, COLD CATHODE
SP901 1-529-174-11 SPEAKER (2.0cm)
PK-47/48
board
59
58
60
57
56
75
52
52
52
52
55
54
53
52
51
79
77
80
52
74
78
76
73
64
52
66
52
65
67
68
72
71
69
70
63
62
61
75
not
supplied
not
supplied
ND801
LCD901
SP901
The components identified by
mark ! or dotted line with
mark ! are critical for safety.
Replace only with part num-
ber specified.
