Sony MVC-FD83 - DC;DC CONVERTER) Schematic Diagram

MVC-FD83/FD88
4-41 4-42 4-43
MVC-FD83/FD88

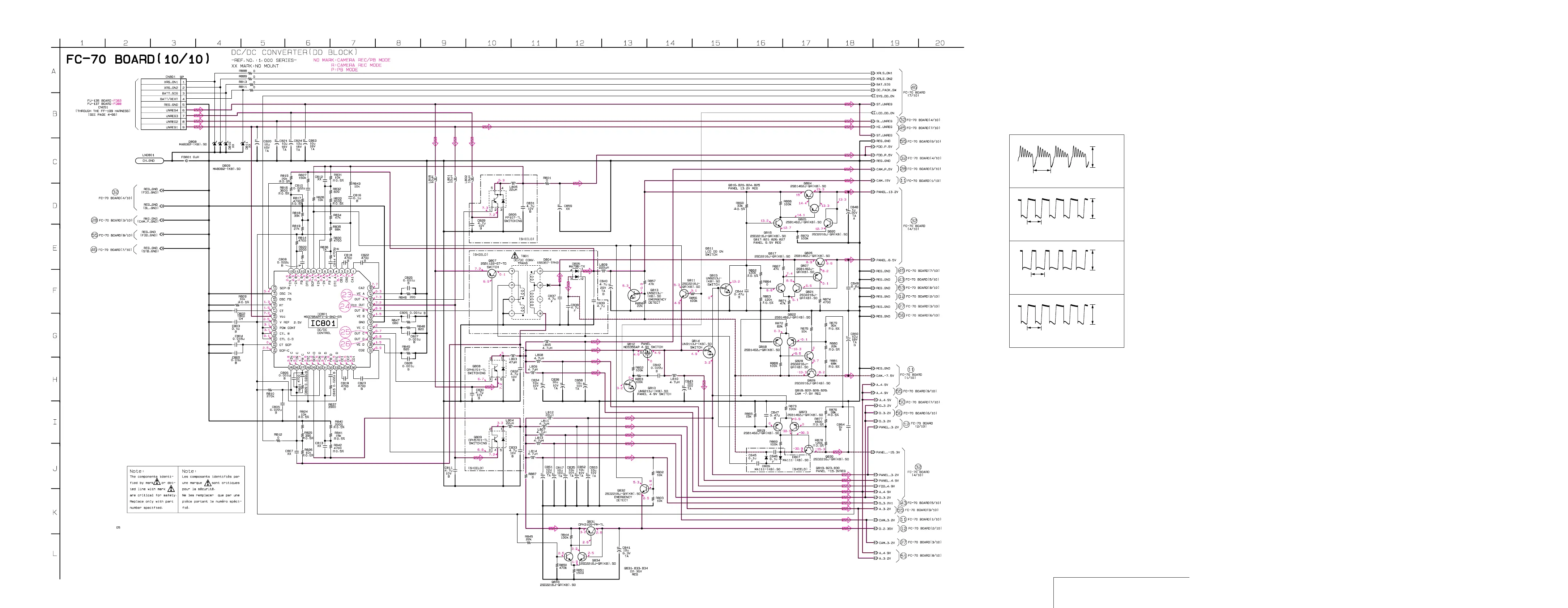

FC-70 (DC/DC CONVERTER) SCHEMATIC DIAGRAM • See page 4-9 for FC-70 printed wiring board.
DC/DC CONVERTER
FC-70 (10/10)
FC-70 BOARD (10/10)
1.9 Vp-p
1.1 Vp-p
1.0 Vp-p
1.0 Vp-p
2 µsec
2 µsec
2 µsec
2 µsec
@£
@¢
@∞
@§
IC801 $§ REC/PB
IC801 $¢ REC/PB
IC801 $º REC/PB
IC801 #ª REC/PB
