MVC-FD83/FD88
4-45 4-46
4-47 4-48

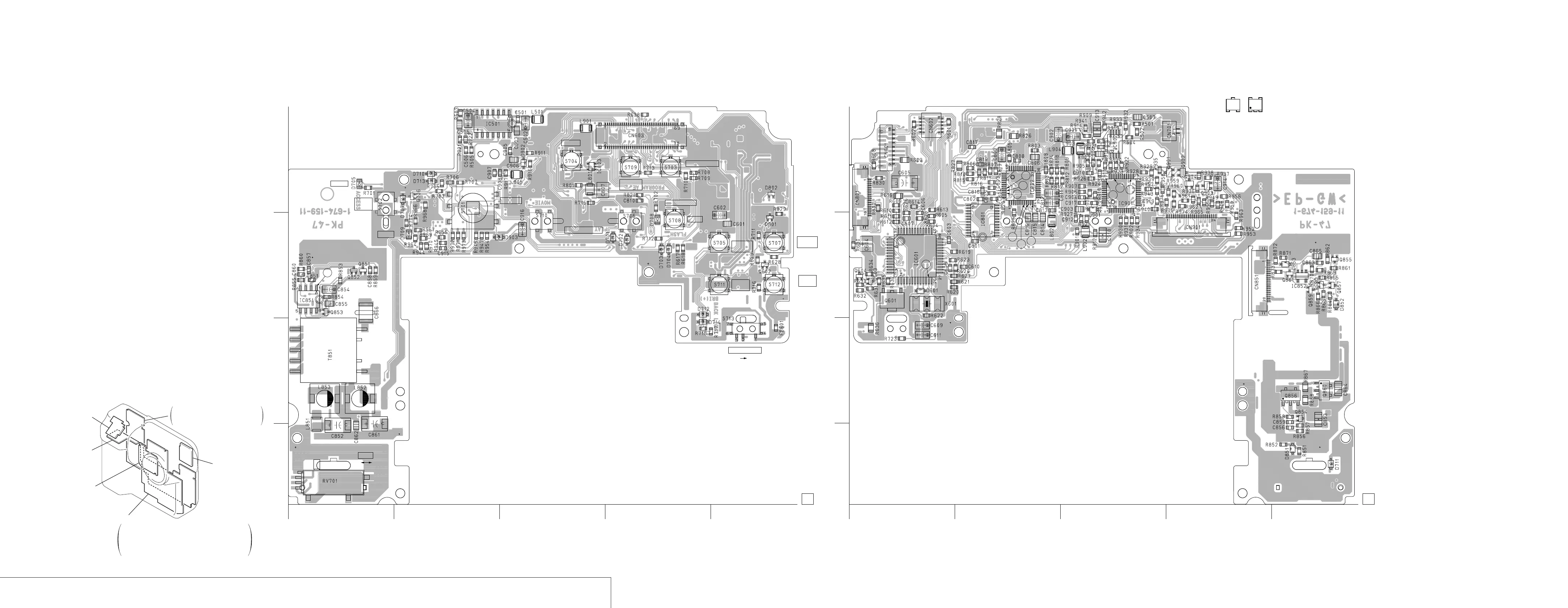

PK-47/48 (REC/PB AMP, MOTOR DRIVE, LCD DRIVE, TIMING GENERATOR, MODE SWITCH, BACK LIGHT DRIVE) PRINTED WIRING BOARD
– Ref. No.: PK-47/48 board; 2,000 series –
• For Printed Wiring Board.
• PK-47/48 board is 4-layer print board. However, the patterns
of layers 2 to 3 have not been included in the diagram.
• There are few cases that the part isn't mounted in this model
is printed on this diagram.
• Chip transistor
PK-47/48 BOARD (SIDE A)
C601 B-5
C807 A-3
C810 A-4
C851 B-1
C852 D-1
C854 B-1
C855 B-1
C857 B-1
C858 B-1
C861 D-1
C862 D-1
C866 B-1
C905 A-3
C906 A-3
C907 A-2
C908 A-2
C915 B-2
C916 B-3
CN603 A-4
D705 A-1
D708 B-4
D709 B-2
D801 B-5
D802 A-5
D902 A-3
D903 B-2
FB601 C-5
IC803 A-3
IC851 B-1
L801 A-3
L851 D-1
L852 C-1
L853 C-1
L901 A-3
L905 A-3
Q602 B-5
Q851 B-1
Q852 B-1
Q853 B-1
R628 B-5
R629 B-5
R638 A-4
R701 A-1
R702 A-4
R703 A-2
R704 B-2
R705 A-2
R706 A-2
R707 A-2
R708 A-4
R709 A-4
R710 A-4
R711 B-5
R712 B-4
R713 A-4
R715 A-3
R716 B-5
R717 C-4
R718 C-4
R821 A-4
R829 B-5
R853 B-1
R854 B-1
R855 B-1
R859 B-1
R860 B-1
R911 A-3
R916 A-3
R917 A-3
R944 B-2
R945 B-2
R946 B-2
R947 B-2
R954 B-2
R959 A-4
R960 A-4
R961 A-4
R962 A-4
R964 B-2
R965 A-4
R966 B-2
R967 B-2
R968 A-2
R969 B-2
R970 B-2
R971 B-2
R972 B-2
R973 B-2
R974 A-4
R975 A-4
R976 A-4
RV701 D-1
S701 A-2
S702 A-1
S703 A-4
S704 A-3
S705 B-5
S706 B-4
S707 B-5
S708 B-4
S709 A-4
S710 B-3
S711 B-5
S712 B-5
S713 C-5
T851 C-1
REC/PB AMP, MOTOR DRIVE, LCD DRIVE, TIMING GENERATOR, MODE SWITCH, BACK LIGHT DRIVE
PK-47/48
EB
C
321
45
PK-47/48 BOARD (SIDE B)
C603 B-1
C604 B-1
C605 A-1
C608 B-1
C609 C-1
C611 C-1
C801 B-2
C802 A-2
C803 A-2
C804 A-2
C805 A-2
C806 A-2
C808 A-2
C809 A-2
C811 A-2
C812 A-2
C813 A-2
C814 B-2
C815 B-2
C816 B-2
C853 C-5
C856 D-5
C859 C-5
C863 B-5
C864 C-5
C865 B-5
C901 A-3
C902 A-2
C903 A-3
C904 A-3
C909 A-3
C910 A-3
C911 A-3
C912 B-3
C913 A-3
C914 A-4
C917 A-3
C918 B-3
C919 A-3
CN601 A-1
CN602 A-1
CN701 A-4
CN801 A-1
CN851 B-4
CN901 B-4
D601 B-1
D852 B-5
D853 B-5
D901 A-3
IC601 B-1
IC801 B-2
IC802 A-2
IC852 B-5
IC901 A-3
IC902 A-3
L802 B-2
L902 B-3
L903 A-3
L904 A-3
Q601 B-1
Q603 B-1
Q604 B-1
Q854 C-5
Q855 B-5
Q856 C-5
Q857 B-5
Q858 B-5
Q859 B-5
Q860 C-5
Q861 B-5
Q901 A-4
Q902 A-4
Q903 A-4
Q904 A-4
R601 A-1
R602 A-1
R603 A-1
R604 B-2
R605 B-2
R608 A-1
R609 A-1
R610 A-1
R611 B-1
R613 A-1
R614 A-1
R616 A-1
R619 B-1
R623 B-1
R624 B-2
R625 B-2
R626 B-1
R627 B-1
R630 B-2
R631 B-2
R632 B-2
R633 B-2
R634 B-2
R635 B-2
R637 B-2
R723 C-1
R802 A-1
R803 A-2
R808 A-2
R809 A-3
R810 A-2
R812 A-3
R813 A-2
R814 A-2
R816 A-2
R817 A-2
R818 A-2
R819 A-2
R820 A-2
R825 B-2
R826 A-2
R827 A-2
R828 A-2
R830 A-1
R856 C-5
R857 C-5
R858 C-5
R861 B-5
R862 B-5
R863 B-5
R864 B-5
R865 B-5
R866 B-5
R867 C-5
R868 C-5
R869 B-5
R870 B-5
R871 B-5
R872 B-5
R873 B-5
R901 B-3
R902 B-3
R903 A-3
R904 A-3
R905 A-3
R906 A-3
R907 A-3
R910 A-3
R912 B-3
R913 A-3
R918 A-3
R919 A-3
R920 A-3
R921 A-3
R922 A-3
R923 A-3
R924 A-3
R925 B-3
R926 A-3
R927 B-3
R928 A-3
R929 A-3
R930 B-3
R932 A-3
R933 A-3
R934 B-3
R935 A-3
R936 A-4
R937 A-4
R938 A-4
R939 A-3
R940 A-3
R941 A-3
R942 A-3
R943 A-3
R948 A-4
R949 A-4
R950 A-4
R951 A-4
R952 B-4
R953 B-4
R956 A-4
R957 A-3
R958 A-3
R963 B-4
X601 B-1
RL-54 (FD83)
RL-56 (FD88)
(RELEASE SWITCH)
PK-47 (FD83)
PK-48 (FD88)
REC/PB AMP, MOTOR DRIVE,
LCD DRIVE, TIMING GENERATOR,
MODE SWITCH, BACK LIGHT DRIVE
FU-135 (FD83)
FU-137 (FD88)
(DC IN)
CD-228 (FD88)
CD-229 (FD83)
(CCD IMAGER)
Flush Unit
FC-70
CAMERA SIGNAL PROCESS, CAMERA DSP,
VIDEO DECODER, LENS MOTOR DRIVE,
AUDIO INTERFACE, MEDIA CONTROL, FD CONTROL,
A/V OUT, AUDIO A/D D/A CONVERTER,
DC/DC CONVERTER
PK-47/48
BOARD (SIDE A)
A
B
C
D
05
1 2 3 4 5
PK-47:1-674-159-
PK-48:1-674-164-
11
ACCESS
POWER
ON/OFF
POWER
ZOOM
TW
CONTROL
(MOVIE)
(PLAY)
PLAY/STILL/MOVIE
DISPLAY
PROGRAM
AE
PICTURE EFFECT
FLASH
VOLUME
+
BRIGHT
+
VOLUME
–
BRIGHT
–
LCD BACKLIGHT
OFF
ON
FLASH/CHARGE
11
PK-47/48
BOARD (SIDE B)
A
B
C
D
05
1 2 3 4 5
PK-47:1-674-159-
PK-48:1-674-164-
11
E
B
C
1
2
3
4
7
6
5
10
9
8
321
45
To Next Page
