5-16
6. F No. Standard Data Input
Compensate the unevenness of the iris meter sensitivity.
Mode STILL
Subject Clear chart
(Color reproduction adjustment
frame)
Adjustment Page F
Adjustment Address 29 to 2C
Note 1: Check that the data of page: 6, address: 02 is “00”.
If not, turn the power of unit OFF/ON.
Adjusting method:
1) Select page: 0, address: 01, and set data: 01.
2) Select page: 6, address: 01, set data: BB, and press the PAUSE
button of the adjusting remote commander.
(The F No. standard data input is performed and the standard
data is stored in page: F, addresses: 29 to 2C)
3) Select page: 6, address: 02, and check that the data is “01”.
Processing after Completing Adjustments:
1) Select page: 6, address: 01, and set data: 00, and press the
PAUSE button of the adjusting remote commander.
2) Select page: 0, address: 01, and set data: 00.

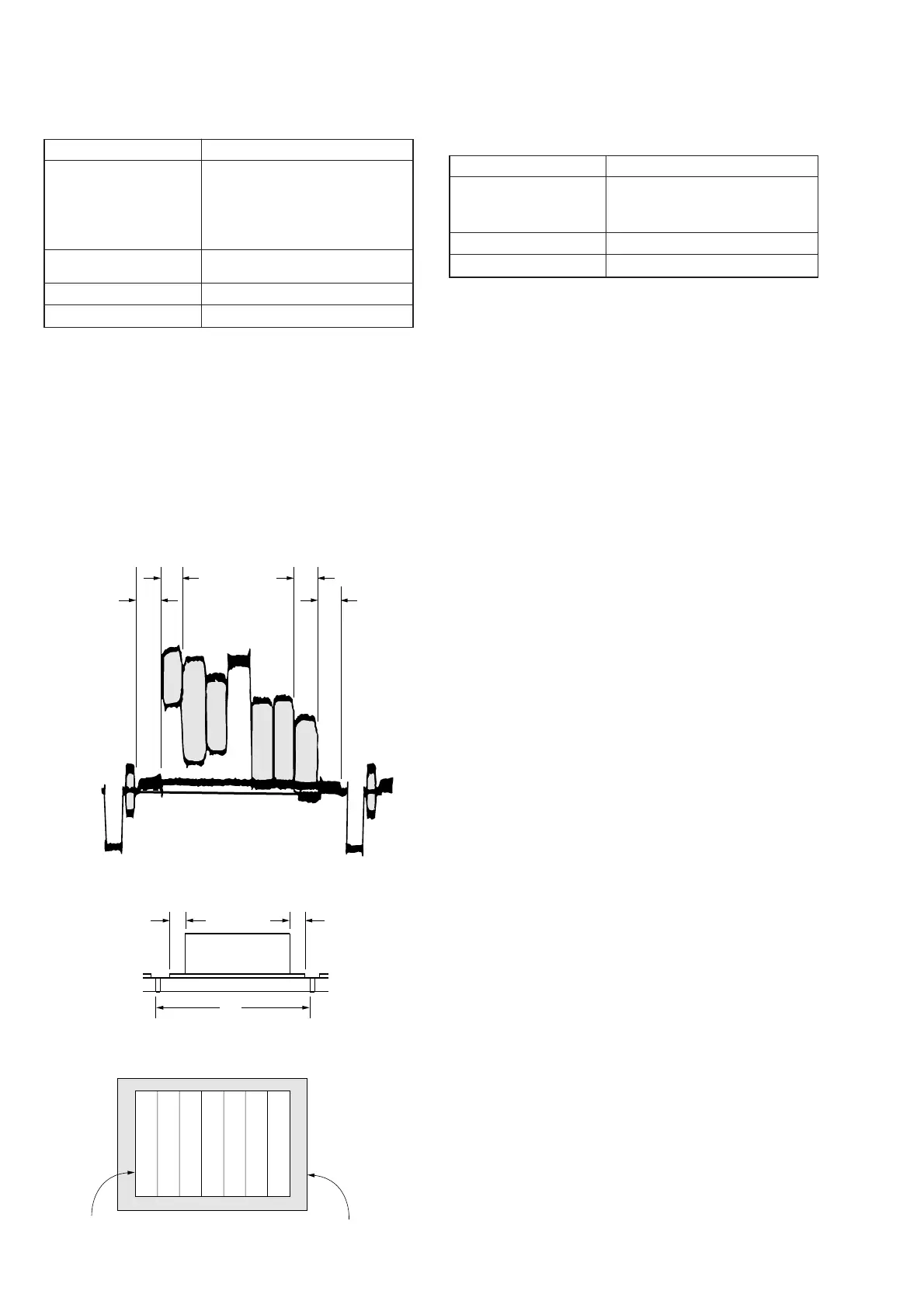

Check on the oscilloscope
1. Horizontal period
Fig. 5-1-13
2. Vertical period
Fig. 5-1-14
Check on the TV monitor
Fig. 5-1-15
A=B
C=D
A
B
C
D
E=F
V
EF
Color bar chart picture frame
TV monitor picture frame
5. Picture Frame Setting
Mode STILL
Subject Color bar chart
(Color reproduction adjustment
frame)
(About 90 cm from the front of
lens)
Measurement Point Video terminal of A/V OUT jack
(75 terminated)
Measuring Instrument Oscilloscope and TV monitor
Specified Value A = B, C = D, E = F
Setting method:
1) Adjust the focus using focus ring.
2) Adjust the camera direction and zoom, and set to the specified
position.
3) Mark the position of the picture frame on the TV monitor,
and adjust the picture frame to this position in following ad-
justments using “Color reproduction adjustment frame”.
To Next Page
