Sony MVC-FD83 - PK-47;48 (TIMING GENERATOR) Schematic Diagram

MVC-FD83/FD88

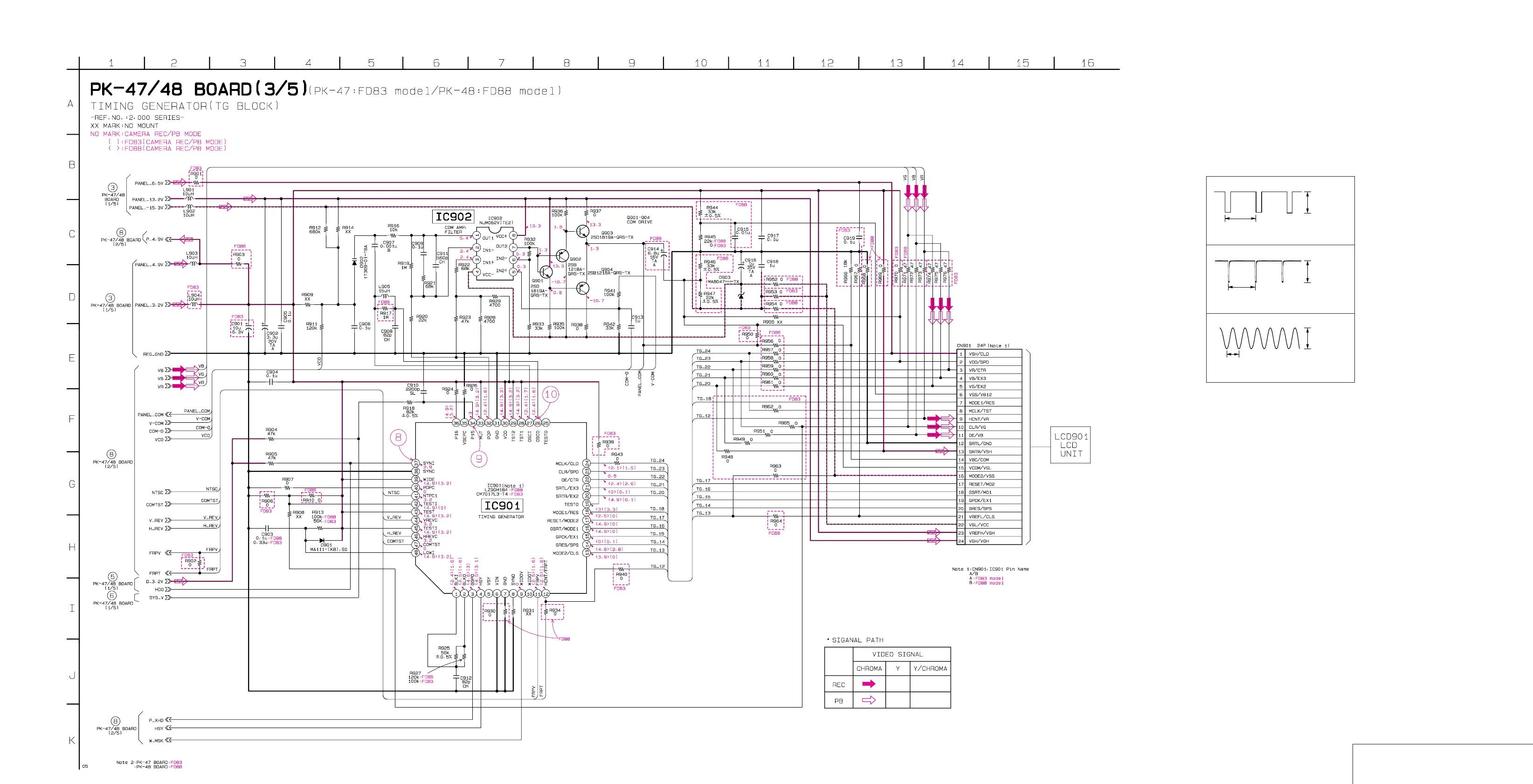

PK-47/48 (TIMING GENERATOR) SCHEMATIC DIAGRAM • See page 4-45 for PK-47/48 printed wiring board.
PK-47/48 BOARD (3/5)
4-55 4-56 4-57
TIMING GENERATOR
PK-47/48 (3/5)
3.2 Vp-p
2.4 Vp-p
3.8 Vp-p
V
H
150 nsec
8
9
!º
IC901 #¶ REC/PB
IC901 #¢ REC/PB
IC901 @§ REC/PB
