5-6

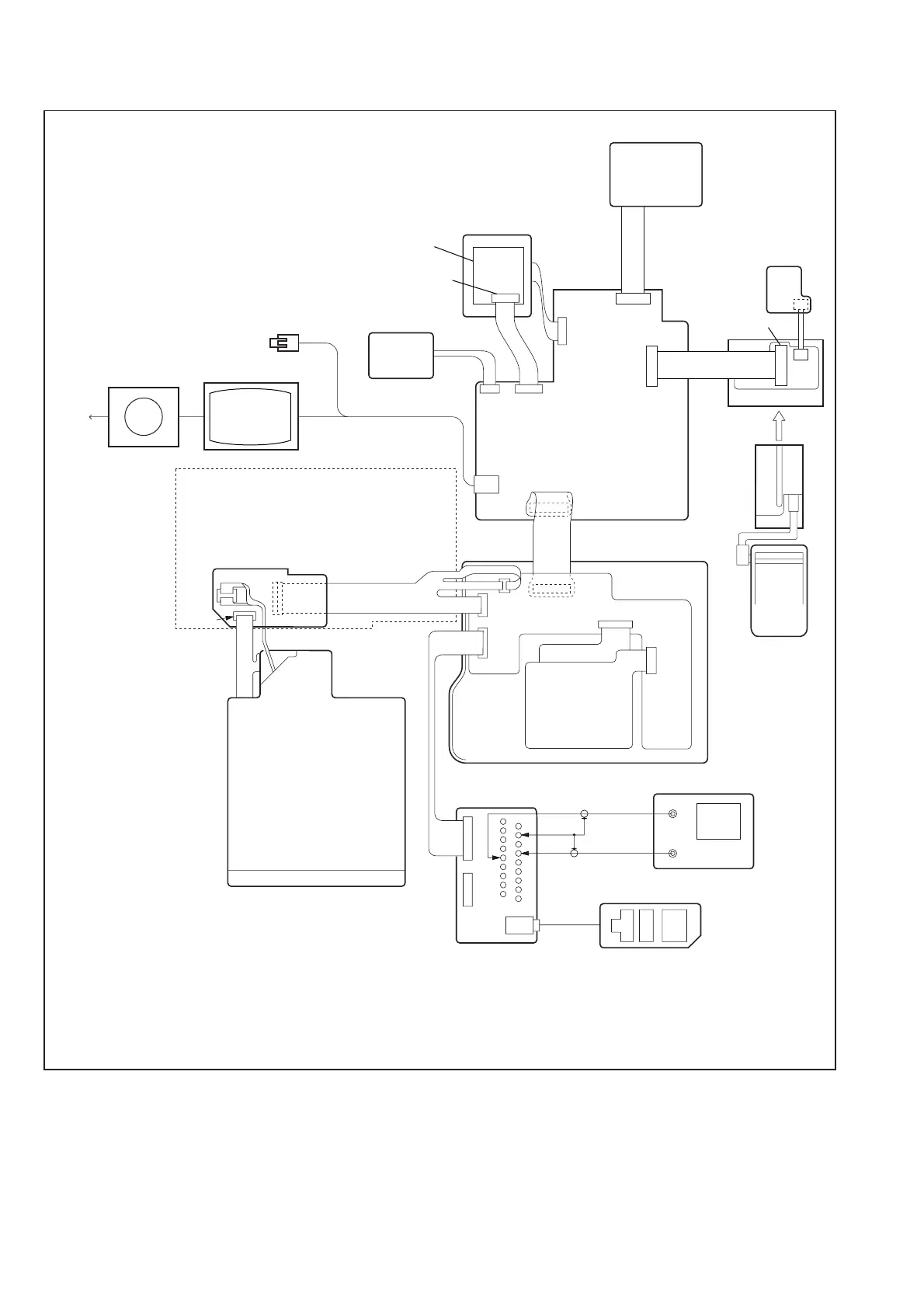

Fig. 5-1-5
Note 2: In changing data, wait for more than 5 seconds after the
set was turned on, then change the data.
Note 3: Connect the GND terminal to Floppy disk drive unit frame
when check the RF signal waveform.
FLASH UNIT
LENS UNIT
RL-54/56 board
FU-135/137 board
CN302
CN801
CN001CN301
CN052
CN051
CN001
BATTERY terminal
AC power adaptor
(BC-V615)
CN603
PK-47/48 board
CN901
CN851
LCD UNIT
BACK LIGHT
CN801
CN601
CN602
CN501
J601
FC-70 board
CN101
CN101: FD83
CN201: FD88
CCD-228/229 board
MF UNIT
Audio
Video
TV monitor
Vector scope
75 Ω
terminal
Extension cable
(J-6082-427-A)
Note 1: When connecting the extension cable,
refer to “1. Connection between the FDD
unit and PK-47/48 board” of page 6.
CN013
CN011
CN012
FDD UNIT
CPC-9 jig
(J-6082-393-B)
Adjusting Remote Commander
(J-6082-053-B)
VG
GND
COM
4
9
8
Oscilloscope
CH1
EXT. TRIG.
To Next Page
