Description of the PH-9 SRM
12
+G stud welding gun
48 Operating Instructions Soyer Bolzenschweißtechnik

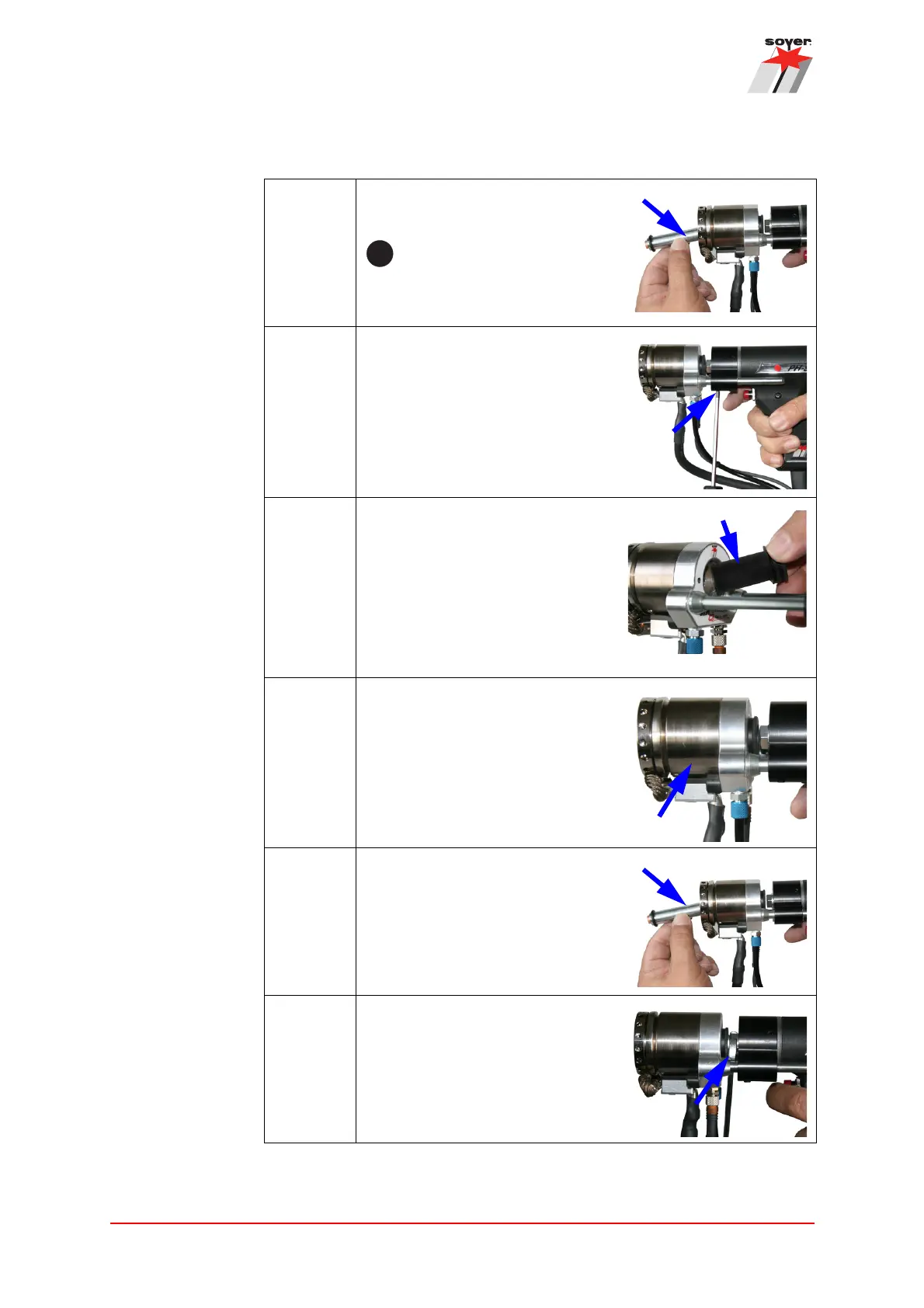

Step 4: If there is still a stud chuck in the
gun, remove it.
It is easier to remove it if
you use pliers as an aid.
Step 5: Remove the support with the
shielding gas shroud.
To this end, loosen the four
Allen screws.
Step 6: Change the gas insert according
to the desired stud.
Gas inserts:
• Item no.: M6 = F06738
• Item no.: M8 = F06739
• Item no.: M10 = F06740
• Item no.: M12 = F06741
Step 7: Slide the support with the shielding
gas shroud onto the gun.
Step 8: Slide the stud chuck up to the stop
into the spring piston of the gun.
Step 9: Hand-tighten the union nut.
Installing the SRM® stud chuck.
